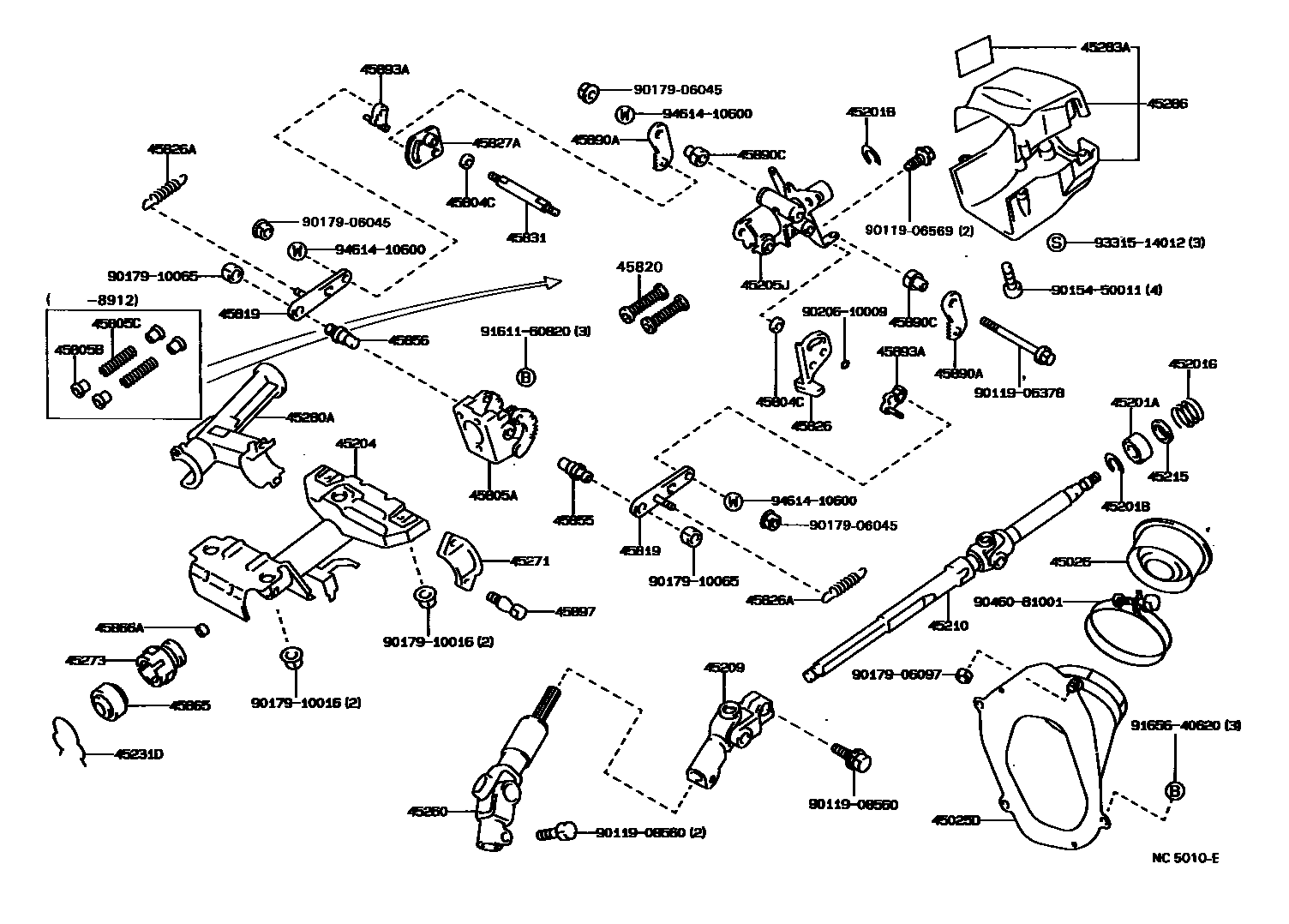

STEERING COLUMN & SHAFT

0001 1��(����������) 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20180iET176;AT170,CT176..DX,STD198712-199211

main45025-20200iCT176,ET176198712-199211

main45025-20200iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

main45025-20260iAT175198808-199202

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45025-20220iAT170,CT17#,ET176,ST17#198712-199211

main45025-20270iAT175198808-199202

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198809

sub90363-18005

main90363-18005iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198809-199202

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAT17#,CT17#,ET176,ST17#198712-199208

main90520-17042iCT176,ET176199208-199211

main90520-17042iST171..4FC..EXG199005-199007

main90520-17196iST171..4FC..EXG199005-199007

main90520-17196iAT17#,CT17#,ET176,ST170..DX,GX,SELS,STD198712-199211

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198712-199202

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-20120iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198905

sub45204-20121

main45204-20121iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198905-199007

sub45204-20122

sub45273-22020

main45204-20122iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z199007-199202

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12250iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198809

sub45205-12251

main45205-12251iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198809-199202

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

sub45209-10020

45210SHAFT ASSY, STEERING MAIN

main45210-12400iCT170,ST170..5F..SELS199106-199202

sub45210-12560

main45210-12400iAT17#..SELS;CT170,ST170..4FC..SELS199005-199202

sub45210-12560

main45210-12400iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

sub45210-12560

main45210-20260iST171..4FC..EXG199005-199007

main45210-20260iCT176..5F198712-199211

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199007

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-20070iET176;AT170,CT176..DX,STD198712-199211

main45260-20090iCT176,ET176198712-198911

sub45260-20220

main45260-20150iAT175198808-199202

main45260-20220iCT176,ET176198911-199211

main45260-20220iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAT17#,CT17#,ET176,ST170..DX,GX,SELS,STD198712-199211

main45271-12050iST171..4FC..EXG199005-199007

main45271-12060iAT170..SELS;CT170,ST170..4FC..SELS199005-199202

main45271-12060iAT170..SELS;CT170,ST170..4FC..SELS199106-199202

main45271-12060iAT170..SELS;CT170,ST170..4FC..SELS199106-199202

main45271-12060iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAT17#,CT17#,ET176,ST17#198712-199211

main45273-16010iST171..4FC..EXG199005-199007

main45273-22020iAT175..SELS199007-199202

main45273-22020iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z199007-199202

main45273-22020iAT175..SELS199106-199202

main45273-22020iAT175..SELS199106-199202

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12100iAT170,CT17#,ET176,ST170..DX,GX,STD198712-198808

sub45280-12110

main45280-12120iAT170,ST170..MX,Z198712-198808

sub45280-12130

main45280-12130iAT170,ST170..MX,Z198712-198808

main45280-20430iAT17#,CT17#,ET176,ST170..DX,GX,STD198808-199211

sub45280-20440

main45280-20440iAT17#,CT170,ST170..GX198810-199202

main45280-20440iAT17#,CT170,ST170..SELS198911-199202

main45280-20440iST171..4FC..EXG199005-199007

main45280-20450iAT170,CT170,ST170..MX,Z198808-198911

sub45280-20460

main45280-20460iCT170,ST170..5F..SELS199106-199202

main45280-20460iAT170,CT170,ST170..MX,Z198808-198911

main45280-20460iAT17#..SELS;CT170,ST170..4FC..SELS199005-199106

main45280-20460iAT175..EXS,MX;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SXR,X,Z)..(CBR,DSL,EFI)198808-199202

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAT17#,CT17#,ET176,ST17#198712-199211

main45283-22010iST171..4FC..EXG199005-199007

45286COVER, STEERING COLUMN

main45286-20931-03iAT17#,CT17#,ET176,ST170..DX,GX,SELS,STD198712-199211

GRAY,TRIM1#

sub45286-20932

sub45286-20931

main45286-20931-04iAT17#,CT170,ST170..DX,GX198712-198911

BLUE,TRIM8#

sub45286-20932

sub45286-20931

main45286-20931-06iAT17#,CT17#,ET176,ST170..DX,GX,SELS198712-199211

SABLE,TRIM4#

sub45286-20932

sub45286-20931

main45286-20931-06iST171..4FC..EXG199005-199007

sub45286-20932

sub45286-20931

main45286-20931-14iAT17#,CT170,ST170..DX,GX,SELS198911-199202

DARK BLUE,TRIM8#

sub45286-20932

sub45286-20931

main45286-20933-03iCT170,ST170..MX,Z;AT17#,ST171..EXS,MX,SXR198712-199202

GRAY,TRIM1#

sub45286-20934

sub45286-20933

main45286-20933-03iAT17#..SELS;CT170,ST170..4FC..SELS199005-199202

sub45286-20934

sub45286-20933

main45286-20933-04iAT17#..EXS,MX;CT170,ST170..MX,Z198712-198911

BLUE,TRIM8#

sub45286-20934

sub45286-20933

main45286-20933-06iAT17#..SELS199005-199202

sub45286-20934

sub45286-20933

main45286-20933-06iAT17#..EXS,MX;CT170,ST170..MX,Z198712-199202

SABLE,TRIM4#

sub45286-20934

sub45286-20933

main45286-20933-14iAT17#..SELS;CT170,ST170..4FC..SELS199005-199202

sub45286-20934

sub45286-20933

main45286-20933-14iST170..Z;AT17#..EXS198911-199202

DARK BLUE,TRIM8#

sub45286-20934

sub45286-20933

main45286-20934-01iST171..G198911-199202

BLACK,TRIM1#,4#,8#

sub45286-20934

main45286-20934-03iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

GRAY,TRIM1#

sub45286-20934

main45286-20934-04iCT170,ST17#..EXG,EXS,G,X198712-198911

BLUE,TRIM8#

sub45286-20934

main45286-20934-06iCT170,ST17#..EXG,EXS,G,X198712-199202

SABLE,TRIM4#

sub45286-20934

main45286-20934-14iCT170,ST17#..EXG,EXS,X198911-199202

DARK BLUE,TRIM8#

sub45286-20934

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198712-199202

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198712-198912

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198712-198912

sub45820-12010

45819RETAINER, TILT LEVER

main45819-12010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199105

sub45819-12020

main45819-12020iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR199105-199202

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010iAT175..EXS,SELS;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z199106-199202

main45820-12010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198912-199106

main45820-20010iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z199106-199202

main45820-20010iAT170..SELS;CT170,ST170..4FC..SELS198912-199202

45826LEVER, STEERING TILT

main45826-12020iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198905

main45826-12021iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198905-199202

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

45827ALEVER, STEERING TILT SUB

main45827-12010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198905

main45827-12011iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198905-199105

main45827-12020iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR199105-199202

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

45855BOLT, TILT STEERING, NO.1

main45855-12010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199105

main45855-12020iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198712-199105

main45855-12030iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z199105-199202

main45855-12040iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR199105-199202

45856BOLT, TILT STEERING, NO.2

main45856-12010iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198712-199105

main45856-12020iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199105

main45856-12030iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR199105-199202

main45856-12040iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z199105-199202

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198712-199105

sub45865-12060

main45865-12060iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR199105-199202

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198712-199105

45890APAWL ASSY, TILT STEERING

main45890-12020iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198905

sub45890-12H00

main45890-12021iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198905-199202

main45890-12030iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198905

sub45890-12H00

main45890-12031iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198905-199202

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

main90389-07005iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198712-199202

main90389-07006iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198712-199202

main90389-07007iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

main90389-07008iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198712-199202

main90389-07009iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198712-199202

main90389-07010iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198712-199202

main90389-07011iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198712-199202

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198905

LH

main45893-12021iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198905-199202

main45893-12070iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198905

RH

main45893-12071iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198905-199202

main45893-12120iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198905-199202

main45893-12130iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198905-199202

main45893-12140iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198905-199202

main45893-12150iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198905-199202

main45893-12160iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198905-199202

main45893-12170iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198905-199202

main45893-12180iCT170,ST170..5F..(EXS,X,Z);CT170,ST170..4FC..(EXS,SELS,X,Z);AT17#,ST171..EXG,EXS,G,GT,GTR,SELS,SXR198905-199202

main45893-12190iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198905-199202

45897BOLT, STEERING LOCK SET

main45897-12020iST171..4FC..EXG199005-199007

main45897-12020iAT17#,CT17#,ET176,ST17#198712-199211

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9015450011

main90154-50011

9017906045

main90179-06045

9017906097

main90179-06097

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9046081001

main90460-81001

9161160820

main91611-60820

9165640620

main91656-40620

9331514012

main93315-14012

9461410600

main94614-10600

49 parts on this diagram · 2 diagrams in section
