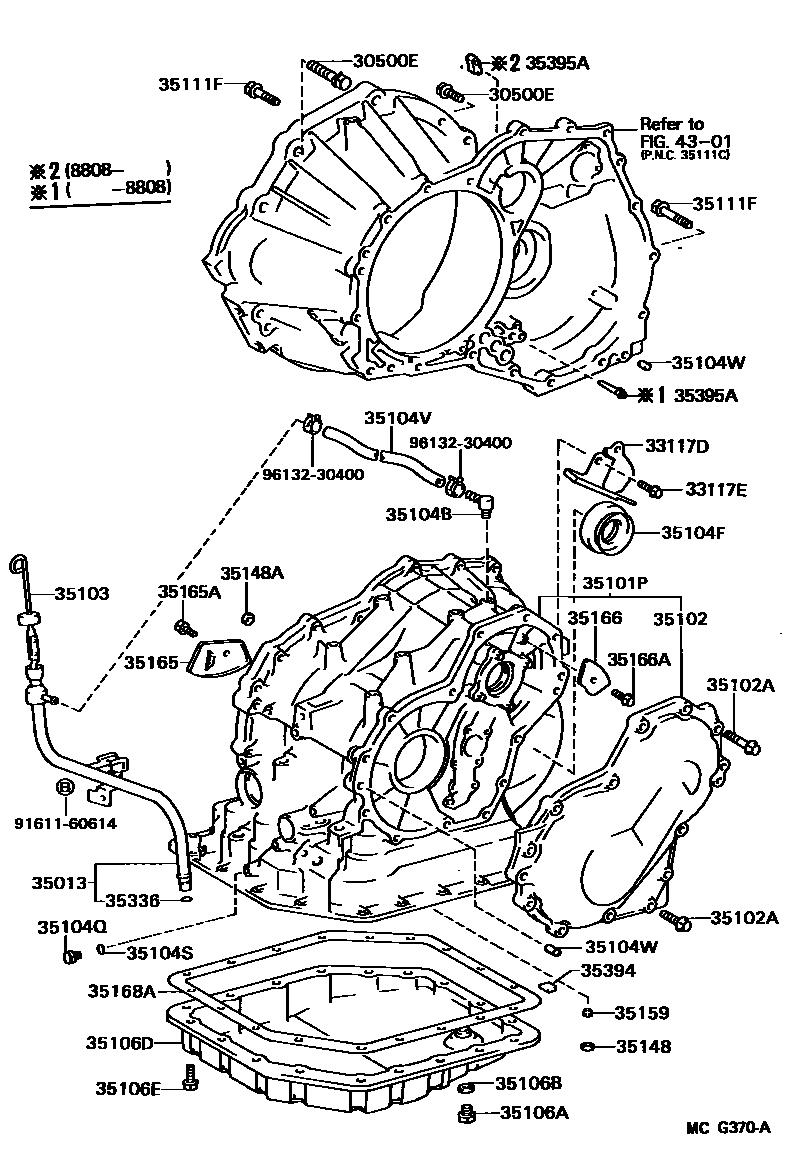

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A240L,A241L,A241H 0002 1A132L 0003 1A140L,A140E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iCT17#,ST17#..4FC198712-199211

sub91641-H0820

main90105-10077iAT17#,CT17#,ST17#..4FC198712-199211

main90105-10097iET176..3FC198712-199211

main90119-12168iAT17#,ET176..ATM198712-199211

main91611-61025iAT17#,ET176..ATM198712-199211

sub91612-61025

main91619-61245iCT17#,ST17#..4FC198712-199211

main91621-60614iET176..3FC198712-199211

main91651-41022iST17#..4FC..(EXG,EXS,G,GX,SELS,SXR,X,Z)198712-199202

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAT17#,CT17#..4FC198712-199211

main33117-12040iET176..3FC198712-199211

main33117-32022iST17#..4FC198712-199202

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iAT17#,CT17#,ET176,ST17#..ATM198712-199211

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12230iAT170..4FC198712-199004

main35013-12260iET176..3FC198712-199211

main35013-20240iST171..4FC..(GT,GTR)198712-198911

main35013-20251iST171..4FC..(EXG,G,SXR)198712-198911

main35013-20260iST170..4FC198712-198911

main35013-20270iCT170..4FC198712-198912

sub35013-20480

main35013-20300iAT175..4FC198808-199202

main35013-20390iAT170..4FC199004-199202

main35013-20440iST171..4FC..(GT,GTR)198911-199202

main35013-20450iST17#..4FC..(EXG,EXS,G,GX,SELS,SXR,X,Z)198911-199202

main35013-20480iCT17#..4FC198912-199008

sub35013-20481

main35013-20481iCT17#..4FC199008-199211

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-12021iAT170..4FC198712-199202

main35101-12070iAT175..4FC198808-199202

main35101-17012iCT170..4FC198712-198911

main35101-20030iCT17#..4FC198911-199201

main35101-20031iCT17#..4FC199201-199211

sub35101-20032

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iET176..3FC198712-199211

main35102-20030iCT17#..4FC198712-199211

sub35102-20031

main35102-20050iAT17#..4FC198712-199211

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050iET176..3FC198712-199211

main90105-08056iET176..3FC198712-199211

main90105-08065iAT17#,CT17#..4FC198712-199211

main90105-08068iAT17#,CT17#..4FC198712-199211

sub90105-08333

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12120iAT170..4FC198712-199202

main35103-12160iET176..3FC198712-199211

main35103-20120iST171..4FC..(GT,GTR)198712-198911

main35103-20130iST17#..4FC..(EXG,EXS,G,GX,MX,SXR,X,Z)198712-198901

sub35103-32060

main35103-20140iCT17#..4FC198712-199211

main35103-20150iAT175..4FC198808-199202

main35103-20160iST17#..4FC198911-199202

main35103-32060iST17#..4FC..(EXG,EXS,G,GX,MX,SXR,X,Z)198901-198911

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iET176,ST17#..ATM198712-199211

main90930-03101iAT17#,CT17#..4FC198712-199211

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90310-35002iCT170..4FC198712-198806

sub90311-35020

main90311-34010iAT170..4FC198712-198811

sub90311-34013

main90311-34012iET176..3FC198712-199211

main90311-34013iAT170..4FC198811-199202

sub90311-34026

main90311-35019iST17#..4FC198712-199202

main90311-35020iCT17#..4FC198806-199211

sub90311-35047

main90311-44004iAT175..4FC198808-199202

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iET176,ST17#..ATM198712-199211

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iET176,ST17#..ATM198712-199211

35104VHOSE (FOR BREATHER PLUG)

main90447-11017iCT17#..4FC198712-199211

main90447-11019iAT170..4FC198712-199202

main90447-11024iAT175..4FC198808-199202

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007iAT17#,CT17#..4FC198712-199211

HOUSING SIDE

main90250-11001iAT17#,CT17#..4FC198712-199211

RR COVER SIDE

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAT17#,CT17#..4FC198712-199211

sub90341-10011

main90341-18016iET176,ST17#..ATM198712-199211

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAT17#,CT17#..4FC198712-199211

main90430-18008iET176,ST17#..ATM198712-199211

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10021iET176,ST17#..ATM198712-199008

sub35106-10022

main35106-10022iET176,ST17#..ATM199008-199211

main35106-12050iAT175..4FC..GX;AT170,CT17#..4FC198712-198912

sub35106-12070

main35106-12070iAT17#,CT17#..4FC198912-199211

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iET176,ST17#..ATM198712-199211

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065iAT17#,CT17#..4FC198712-199211

main90105-08066iAT17#,CT17#..4FC198712-199211

main90105-08068iAT17#,CT17#..4FC198712-199211

sub90105-08333

main90105-08071iAT17#,CT17#..4FC198712-199211

main90105-08082iCT17#..4FC198712-199211

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAT17#,CT170,ET176..ATM198712-199211

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iAT17#,CT17#..4FC198712-199211

35159GASKET, BRAKE DRUM

main35159-20010iAT17#,CT17#..4FC198712-199211

main35159-32011iET176,ST17#..ATM198712-199211

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAT17#..4FC198712-199202

main35165-20010iCT17#..4FC198712-199211

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAT17#,CT17#..4FC198712-199211

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iAT17#,CT17#..4FC198712-199211

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAT17#,CT17#..4FC198712-199211

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAT17#,CT17#..4FC198712-199211

main35168-32010iET176,ST17#..ATM198712-199211

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35395ASTRAINER, GOVERNOR OIL

main35395-12010iAT175..4FC198808-199202

sub35395-12020

main35395-12020iAT170,CT17#..4FC198808-199211

main35395-20010iAT170,CT170..4FC198712-198808

main35395-32011iET176..3FC198712-198802

main35395-32020iST170..4FC198712-199211

sub35395-32030

4301

9161160614

main91611-60614

9613230400

main96132-30400

33 parts on this diagram · 3 diagrams in section
