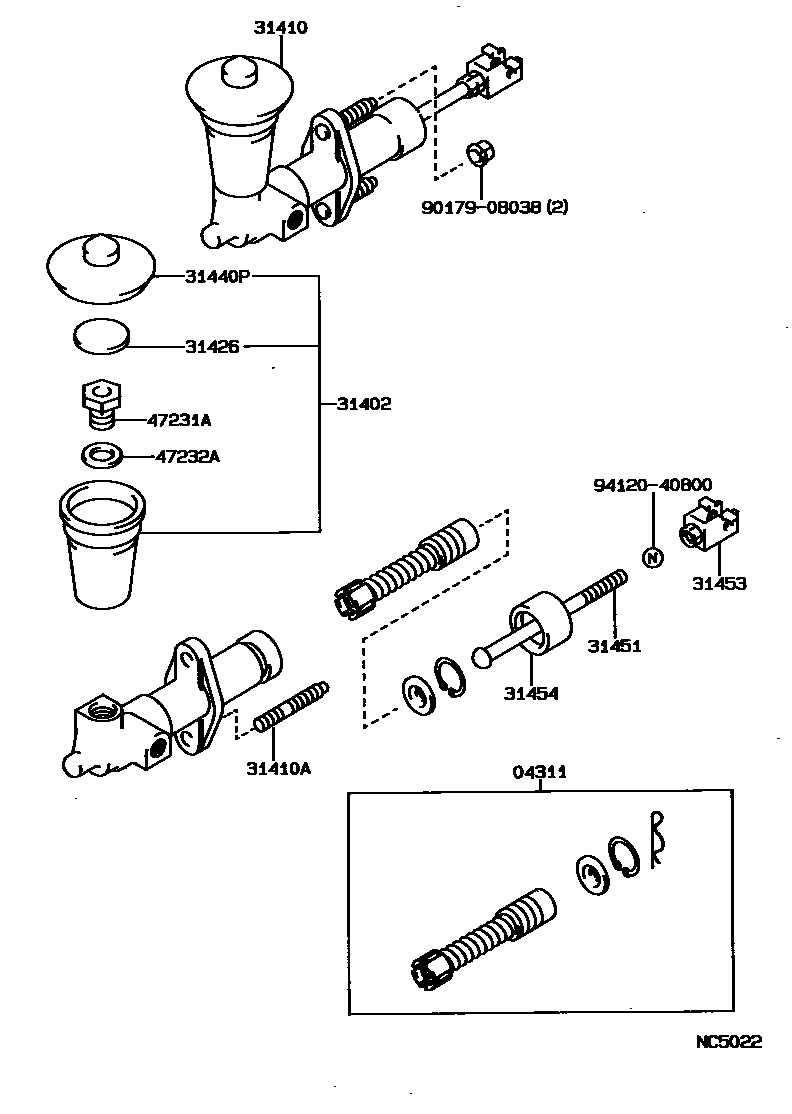

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-10011iAT170,CT17#,ET176,ST17#..MTM198712-198802

sub04311-10012

main04311-10012iAT170,CT17#,ET176,ST17#..MTM198802-198806

sub04311-28010

main04311-22040iAT17#,CT17#,ET176,ST17#..MTM198911-199211

sub04311-12080

main04311-32030iAT17#,CT17#,ET176,ST17#..MTM198806-198911

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iAT17#,CT17#,ET176,ST17#..MTM198712-198911

main31402-35030iAT17#,CT17#,ET176,ST17#..MTM198911-199211

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20410iAT170,ET176,ST17#..MTM198712-198803

sub31410-20411

main31410-20411iAT17#,ET176,ST17#..MTM198803-198911

main31410-20430iCT17#..5F198712-198805

sub31410-20431

main31410-20431iCT17#..5F198805-198911

main31410-20480iAT17#,ET176,ST17#..MTM198911-199211

sub31410-20500

main31410-20500iCT17#..5F198911-199211

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12070iCT17#..5F198806-198911

main31451-22060iAT170,ET176,ST17#..MTM198712-198806

main31451-22070iCT17#..5F198712-198806

main31451-32010iAT17#,ET176,ST17#..MTM198806-198911

main31451-35070iAT17#,ET176,ST17#..MTM198911-199211

main31451-35080iCT17#..5F198911-199211

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12020iCT17#..5F198911-199211

main31404-16010iCT17#..5F198712-198906

sub31404-20010

main31404-20010iCT17#..5F198906-198911

main31453-10020iAT17#,ET176,ST17#..MTM198712-199211

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAT17#,ET176,ST17#..MTM198712-198911

main31454-16010iCT176,ET176..MTM199204-199211

main31454-24010iCT17#..5F198712-199204

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAT17#,CT17#,ET176,ST17#..MTM198712-198911

47232AWASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT

main47232-30010iAT17#,CT17#,ET176,ST17#..MTM198712-198911

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
