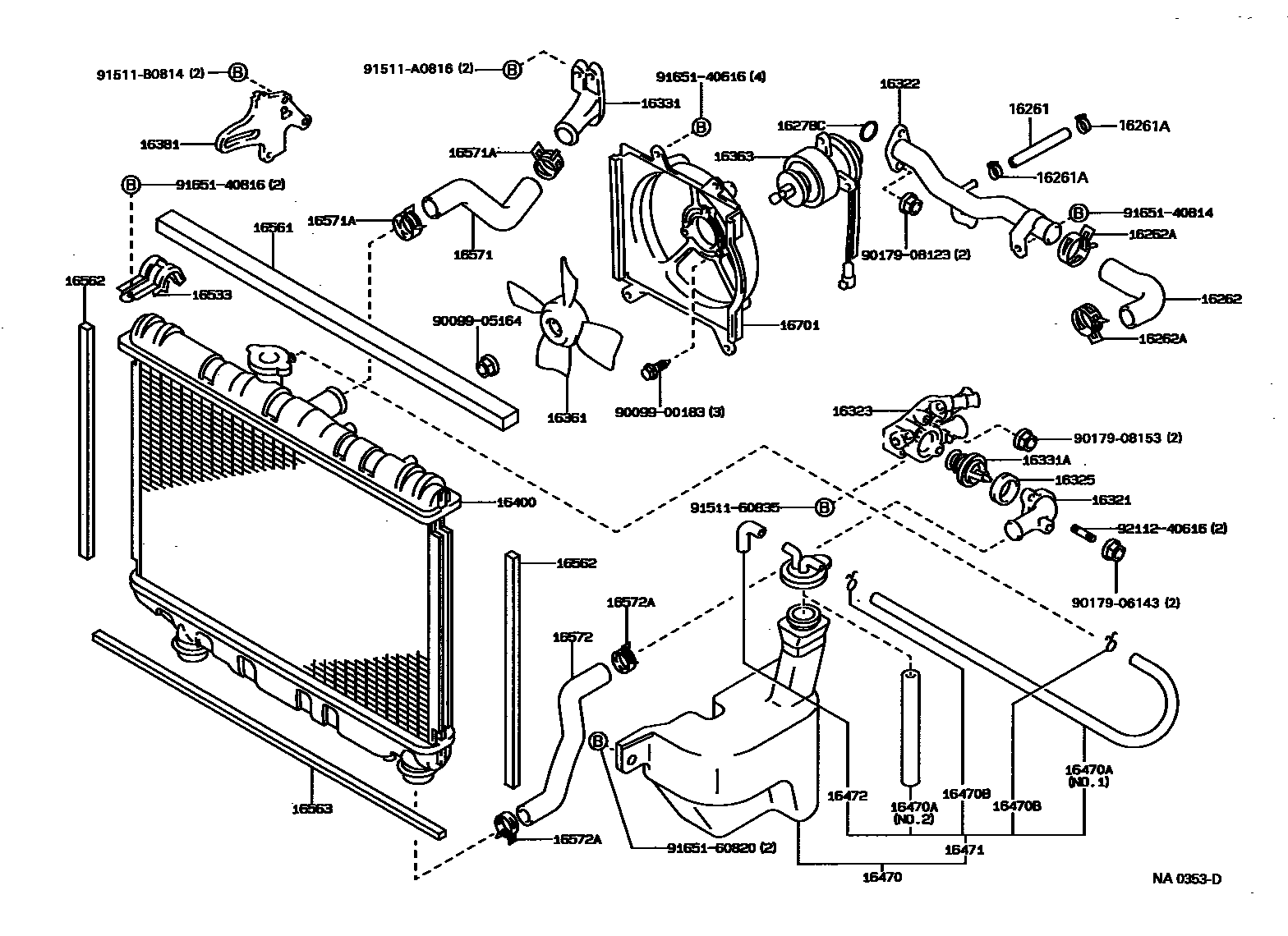

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

16261HOSE, WATER BY-PASS

main16261-11040i3E..ET176198712-198911

main16261-64060i2C..CT17#198712-199211

main16261-74010i3SFE,4SFE..ST17#198712-199202

main16261-74040i4SFI..ST170198712-198911

main16261-88360i3SGE..ST171198712-198911

*53

main16261-88360i3SGE..ST171198712-198908

*54

main16261-88361i3SGE..ST171198908-199202

*54

main99555-10180i4AFE..AT175198808-199106

sub99555-10200

main99555-10200i4AFE..AT175198712-199202

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i3E..ET176198712-198911

sub96135-51100

main90467-13001i4AFE,5AF..AT17#198712-199106

sub96135-51300

main90467-15004i2C..CT17#..DX,EXS,GX198712-198908

main90467-15022i2C..CT17#..DX,EXS,GX,SELS198908-199211

main90467-22003i3S#,4SF#..ST17#198712-199202

sub90467-21010

main96135-41300i4AFE..AT175199106-199202

sub96135-51300

16262HOSE, WATER INLET

main16262-10010i3E..ET176..4F198712-199211

sub16262-10011

main16262-10020i3E..ET176..3FC198712-199211

sub16262-10022

main16262-15030i5AF#..AT170..5F198712-199202

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i3E..ET176198712-199211

sub90467-34004

main90467-36001i5AF#..AT170..4FC198712-199202

16278CRING, O(FOR WATER BY-PASS PIPE NO.2)

main96711-24035i4AFE..AT175198712-199202

sub96761-24035

16321INLET, WATER

main16321-11011i3E..ET176198712-199211

main16321-15020i5AF#..AT170..4F..GX198712-199202

main16321-64020i2C..CT17#198712-199211

main16321-74020i3SFE,4SFE..ST17#198911-199202

main16321-88360i3S#,4SFI..ST17#198712-198911

main16321-88381i3SGE..ST171198911-199202

16322PIPE, WATER INLET

main16322-11010i3E..ET176..4F198805-198911

sub16322-11081

sub16266-11010

main16322-11050i3E..ET176198712-198805

main16322-11080i3E..ET176198911-199204

sub16322-11081

main16322-11081i3E..ET176199204-199211

sub16322-11091

main16322-15020i4AFE,5AF..AT17#198712-199005

sub16322-15040

main16322-15040i4AFE,5AFE..AT17#199005-199106

main16322-15041i4AFE,5AFE..AT17#199106-199202

16323HOUSING, WATER INLET

main16323-15050i4AFE..AT175198808-199202

main16323-15060i5AF..AT170198712-198911

main16323-15070i4AFE..AT175..4FC198808-198911

main16323-15080i5AFE..AT170..MTM198911-199202

main16323-15120i5AFE..AT170..4FC198911-199202

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i3SGE..ST171198911-199202

main16325-63010i4AFE,5AFE..AT17#198712-199211

sub16325-63011

16331OUTLET, WATER

main16304-74010i3SGE..ST171198712-198809

sub16304-74011

main16304-74011i3SGE..ST171198809-198911

main16304-74030i3SFE..ST171198712-198911

main16304-74051i4SFI..ST170198712-198911

main16304-74061i4SFI..ST170198712-198911

main16304-74110i3SFE,4SFE..ST17#198911-199202

main16304-74130i3SGE..ST171198911-199012

sub16304-74131

main16304-74131i3SGE..ST171199012-199107

sub16304-74132

main16304-74132i3SGE..ST171199107-199202

main16331-15070i5AF..AT170..4FC198712-198911

main16331-15080i5AF..AT170..MTM;4AFE,5AFE..AT17#198712-199202

main16331-64030i2C..CT170;2C..CT176..5F198712-199211

main16331-64070i2C..CT17#..4FC198911-199211

16331ATHERMOSTAT

main90916-03046i2C..CT17#198712-199211

main90916-03046i3SFE,4SFE..ST17#198911-199106

main90916-03046i3E..ET176198911-199211

main90916-03060i3SFE,4SFE..ST17#199106-199202

sub90916-03090

main90916-03065i3E..ET176198911-199211

sub90916-03109

main90916-03075i3SGE..ST171198911-199202

16361FAN

main16361-15080i5AF#..AT170..MTM198712-199211

main16361-16020i3SGE..ST171..4FC198911-199202

main16361-63020i2C..CT176;2C..CT170..4FC198712-199211

sub16361-74070

main16361-63040i3SGE,4SFI..ST17#..5F198712-199202

main16361-64010i3SFE..ST171;3SGE,4SFI..ST17#..4FC198712-199202

16363MOTOR, COOLING FAN

main16363-10010i5AF..AT170..MTM198712-199211

main16363-16010i2C..CT170..5F198712-199202

main16363-16020i2C..CT170..4FC198712-199211

main16363-74010i3E..ET176..3FC199201-199211

16381BAR, FAN BELT ADJUSTING

main16381-11020i3E..ET176..4F198712-199207

sub16381-11021

main16381-11021i3E..ET176..4F199207-199211

main16381-11030i3E..ET176..4F198712-199211

main16381-15060i4AFE,5AF#..AT17#198712-199202

16400RADIATOR ASSY

main16400-11200i3E..ET176..4F198712-199211

sub16400-16330

main16400-11210i3E..ET176..3FC198712-199211

main16400-15360i5AF#..AT170..MTM198712-199202

main16400-15380i5AF#..AT170..4FC198712-199202

main16400-15440i4AFE..AT175..4FC198808-199202

sub16400-15410

main16400-16290i4AFE..AT175..5F198808-199202

main16400-64460i2C..CT17#..5F198712-199211

main16400-64470i2C..CT170..4FC198712-198911

sub16400-64471

main16400-64471i2C..CT17#..4FC198911-199211

main16400-74060i3SGE,4SFI..ST17#..5F198712-198911

sub16400-74070

main16400-74320i4SF#..ST170..4FC198712-199202

sub16400-74350

main16400-74330i3SFE..ST171..4FC198712-199202

sub16400-74360

main16400-74340i3SFE..ST171..5F198712-199202

sub16400-74350

main16400-74360i3SGE..ST171..4FC198712-198911

main16400-74370i4SFE..ST170..5F198911-199202

sub16400-74070

main16400-74570i3SGE..ST171..5F198911-199202

main16400-74580i3SGE..ST171..4FC198911-199202

16470TANK ASSY, RADIATOR RESERVE

main16470-15050i5AF..AT170198712-199211

main16470-16140i4AFE..AT175198911-199202

main16470-64100i3S#,4SF#..ST17#198712-199202

main16470-64110i2C..CT17#198712-199211

main16470-74090i3SFE..ST171198712-199202

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-70070i4AFE..AT175198911-199202

main85338-74080i3S#..ST171198712-199202

main85338-74080i5AFE..AT170198808-199202

NO.1

main90099-33466i3SGE..ST171;3SFE..ST171..4FC..G198712-199201

sub90445-12078

main90099-33466i3S#,4SFE..ST17#198911-199110

sub90445-12078

main90099-33534i5AF..AT170198712-199211

main90099-33534i3E..ET176198911-199211

main90445-12065i3S#,4SFE..ST17#198712-199202

sub90445-12078

main90445-12078i3E..ET176198712-199211

main90445-12078i2C..CT17#198712-199211

main90445-12078i2C..CT17#198712-198911

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AFE,5AF#..AT17#198712-199211

16471CAP SUB-ASSY, RESERVE TANK

main16405-15060i3E..ET176198712-199211

main16405-16100i4AFE..AT175198911-199202

main16405-64040i3S#,4SF#..ST17#198712-199202

main16405-64050i4AFE..AT175198712-199211

main16405-74060i3SGE..ST171198712-199202

main16405-74060i4SFE..ST170199006-199202

16472HOSE, BREATHER

main85338-14030i3S#,4SF#..ST17#198712-199202

main85338-70100i4AFE..AT175198712-199211

main85338-74040i3S#..ST171198712-199202

main85338-74040i4SFE..ST170199006-199202

main85338-74040i3E..ET176198712-199211

16533SUPPORT, RADIATOR, UPPER

main16533-15110i3E..ET176198712-199211

main16533-64100i2C..CT17#198712-199211

main16533-74060i4SFE..ST170;3SFE..ST171..5F198712-199202

main16533-74070i3SFE..ST171..4FC198712-199202

main16533-74140i3SGE..ST171..5F198911-199202

main16533-74150i3SGE..ST171..4FC198911-199202

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-74010i2C..CT17#198712-199211

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-74010i3SGE..ST171198911-199211

main16562-74010i2C..CT170..5F..GX;2C..CT17#..4FC..(DX,EXS,GX)198801-199211

main16562-74010i5AF..AT170198712-198801

main16562-74010i2C..CT170..5F..EXS198911-199202

main16562-74010i2C..CT170..SELS199104-199202

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-74010i2C..CT17#198712-199211

16571HOSE, RADIATOR, INLET

main16571-11060i3E..ET176198712-199211

main16571-15150i5AF#..AT170198712-199202

main16571-15180i4AFE..AT175198808-199202

main16571-64140i2C..CT17#198712-199211

main16571-74090i3S#,4SF#..ST17#198712-199202

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i3E..ET176198712-199211

main90467-33002i3S#,4SF#..ST17#198712-199012

sub90467-34003

main90467-33002i3E..ET176198712-199211

sub90467-34003

main90467-33003i2C..CT17#199011-199211

main90467-34003i4AFE,5AF#..AT17#198712-199202

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-11120i3E..ET176198712-199211

main16572-15200i4AFE,5AF#..AT17#198712-199202

main16572-64170i2C..CT17#198712-199211

main16572-74030i3S#,4SFI..ST17#198712-198901

main16572-74120i3S#,4SFI..ST17#198901-198911

main16572-74130i3S#,4SFE..ST17#198911-199202

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i3E..ET176198712-199211

WATER INLET SIDE

main90467-33002i2C..CT17#198712-199211

sub90467-34003

main90467-33002i3SFE,4SFE..ST17#198911-199011

sub90467-34003

main90467-33002i2C..CT17#198712-198911

RADIATOR SIDE

sub90467-34003

main90467-33003i2C..CT17#199011-199211

main90467-33003i3SFE,4SFE..ST17#199001-199211

main90467-33004i3SGE..ST171199012-199202

WATER ILET SIDE

sub90467-33003

main90467-34003i4AFE,5AF#..AT17#198712-199202

sub90467-34004

main90467-37001i2C..CT17#198712-199011

WATER INLET SIDE

sub90467-37003

main90467-37002i2C..CT17#199011-199211

WATER INLET SIDE

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-15220i5AF#..AT170..MTM198712-199211

main16711-15230i5AF..AT170..4FC198712-199202

main16711-16140i4AFE..AT175..5F198808-199202

main16711-16150i3E..ET176..3FC198808-199211

main16711-64220i2C..CT176;2C..CT170..4FC198712-199211

main16711-74020i4SFE..ST170..5F198712-199202

main16711-74050i2C..CT170..5F198712-199202

main16711-74140i3SFE..ST171;3SGE,4SFI..ST17#..4FC198712-199202

main16711-74200i3SGE..ST171..5F198911-199202

main16711-74260i3SGE..ST171..4FC198911-199202

9009900183

main90099-00183

9009905164

main90099-05164

9017906143

main90179-06143

9017908123

main90179-08123

9017908153

main90179-08153

9151160835

main91511-60835

91511A0816

main91511-A0816

91511B0814

main91511-B0814

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9165160820

main91651-60820

9211240616

main92112-40616

42 parts on this diagram · 15 diagrams in section
