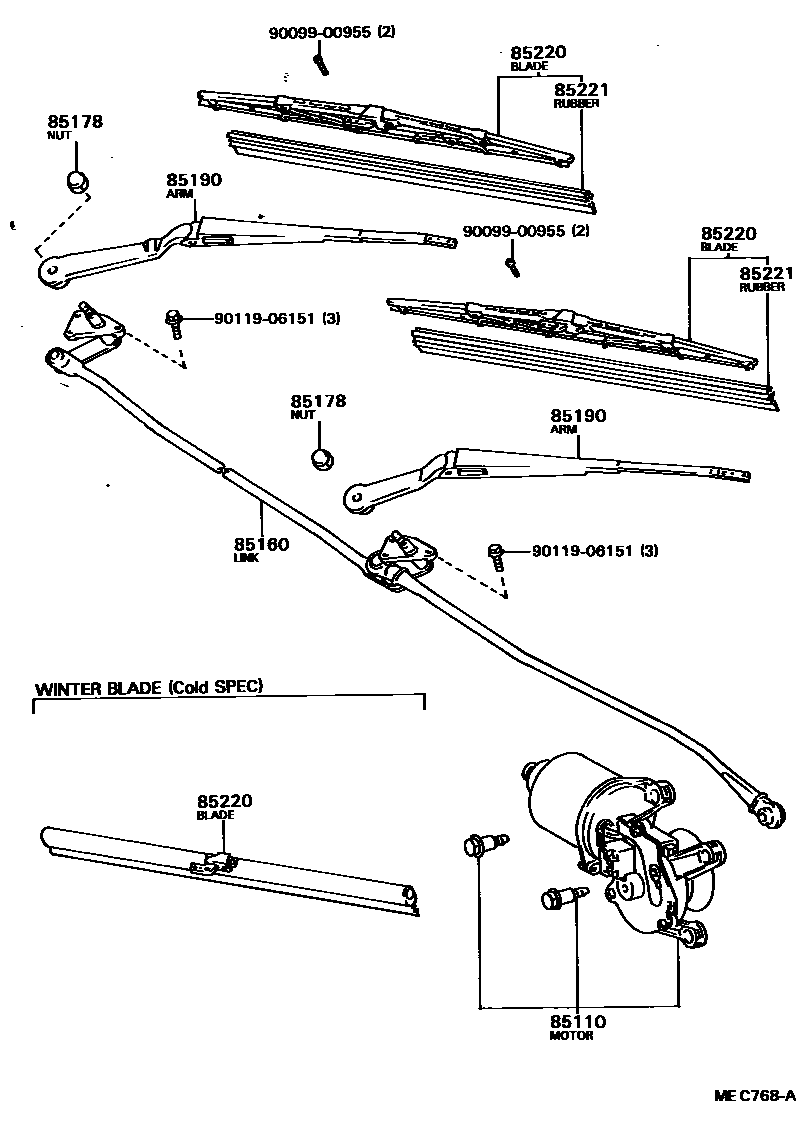

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20150iAT150,CT150,ST150,16#198301-198711

sub85110-20190

main85110-20380iAT150,CT150,ST150,16#198508-198711

COLD SPEC

sub85110-20190

85160LINK ASSY, WINDSHIELD WIPER

main85160-20200iAT150,CT150,ST150198301-198508

main85160-20230iAT150,CT150,ST150,16#198508-198711

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029×2iAT150,CT150,ST150198301-198508

main90176-08033×2iAT150,CT150,ST150,16#198508-198711

85190ARM ASSY, WINDSHIELD WIPER

main85190-20370iAT150,CT150,ST150198301-198508

RH

main85190-20470iAT150,CT150,ST150,16#198508-198711

RH

main85210-20110iAT150,CT150,ST150198301-198508

LH

main85210-20150iAT150,CT150,ST150,16#198508-198711

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12620×2iAT150,CT150,ST150,16#198604-198711

WINTER BLADE

sub85291-12010

main85220-16180iAT150,CT150,ST150198301-198311

RH

main85220-16190iAT150,CT150,ST150198301-198311

LH

main85220-16320iAT150,CT150,ST150,16#198311-198711

LH

sub85220-16321

main85220-16350iAT150,CT150,ST150,16#198311-198711

RH

main85220-24040×2iST150198301-198310

WINTER BLADE

sub85291-24010

85221BLADE, WINDSHIELD WIPER

main85221-30120×2iAT150,CT150,ST150,16#198301-198711

sub85221-40040

9009900955

main90099-00955

9011906151

main90119-06151

8 parts on this diagram · 1 diagram in section
