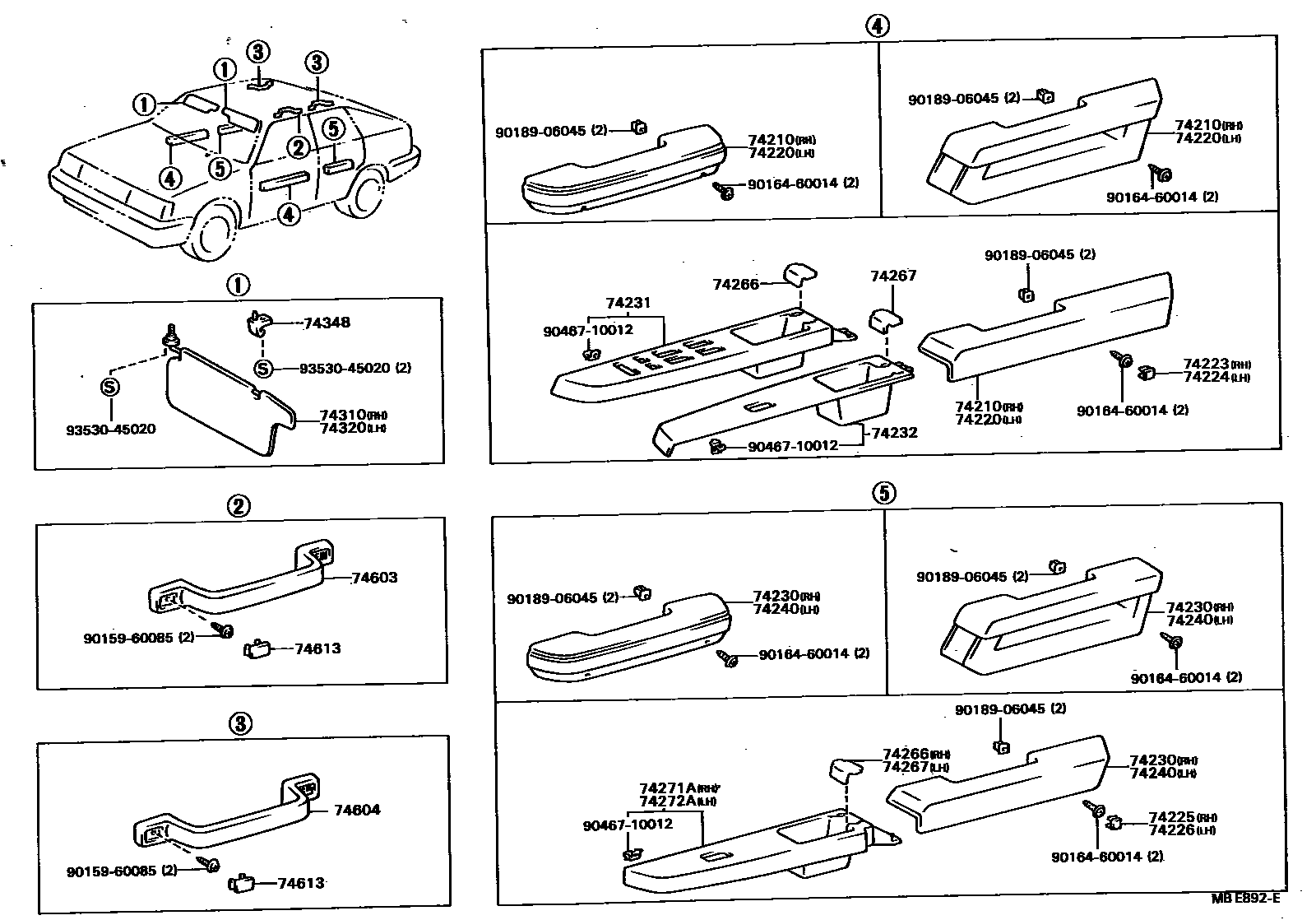

ARMREST & VISOR

0001 1 0002 1

74210ARMREST ASSY, FRONT, RH

main74210-20120-02iAT150,CT150,ST150..EXS,GX,SX198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main74210-20120-03iST150..EXS198301-198310

SHADOW GRAY,GRAY,TRIM1#

main74210-20120-04iAT150,CT150,ST150..EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main74210-20120-14iAT150,CT150,ST150..EXS,GX198508-198711

BLUE,BLUE,TRIM8#

main74210-20130-02iAT150,CT150,ST150..4D..GX198612-198711

SELECT SALOON,MAROON,RED/MAROON,TRIM3#

main74210-20130-03iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74210-20130-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74210-20130-14iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

main74210-22061-04iAT150..DX198310-198508

BLUE,BLUE,TRIM8#

main74210-22061-12iAT150..DX198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74210-22061-14iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

main74210-22061-23iAT150..DX,STD198310-198711

SHADOW GRAY,GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74210-22061-04iAT150..DX198310-198508

BLUE,BLUE,TRIM8#

main74210-22061-12iAT150..DX198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74210-22061-14iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

main74210-22061-23iAT150..DX,STD198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74220-20120-02iST150..EXS198301-198310

DEEP MAROON,RED/MAROON,TRIM3#

main74220-20120-03iST150..EXS198301-198310

SHADOW GRAY,GRAY,TRIM1#

main74220-20120-04iAT150,CT150,ST150..EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main74220-20120-14iAT150,CT150,ST150..EXS,GX198508-198711

BLUE,BLUE,TRIM8#

main74220-20130-02iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74220-20130-03iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74220-20130-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74220-20130-14iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74223CAP, DOOR ARMREST, RH

main74266-20050-02×2iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74266-20050-03×2iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74266-20050-04×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74266-20050-02×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,DEEP MAROON,RED/MAROON,TRIM3#

main74266-20050-03×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main74266-20050-04×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

74225CAP, DOOR ARMREST, REAR RH

main74266-20050-02×2iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74266-20050-03×2iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74266-20050-04×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

74226CAP, DOOR ARMREST, REAR LH

main74266-20050-02×2iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74266-20050-03×2iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main74266-20050-04×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74266-20050-14iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-22061-04iAT150..DX198310-198508

BLUE,BLUE,TRIM8#

main74210-22061-12iAT150..DX198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74210-22061-14iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

main74210-22061-23iST150..DX,GX198301-198310

SHADOW GRAY,GRAY,TRIM1#

main74250-20030-02iST150..EXS198301-198310

DEEP MAROON,RED/MAROON,TRIM3#

main74250-20030-03iST150..EXS198301-198310

SHADOW GRAY,GRAY,TRIM1#

main74250-20030-04iAT150,CT150,ST150..EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main74250-20030-14iAT150,CT150,ST150..EXS,GX198508-198711

BLUE,BLUE,TRIM8#

main74250-20040-02iCT150,ST150..EXA,EXS198508-198711

W/*EL,DEEP MAROON,RED/MAROON,TRIM3#

main74250-20040-03iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main74250-20040-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74250-20040-14iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20080-02iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74231-20080-03iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74231-20110-02iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,DEEP MAROON,RED/MAROON,TRIM3#

main74231-20110-03iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main74231-20110-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74231-20111-02iCT150,ST150..EXA,EXS198508-198711

W/*EL,MAROON,MAROON,TRIM3#

main74231-20111-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main74231-20111-04iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20080-02iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74232-20080-03iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main74232-20080-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74232-20081-02iAT150,CT150,ST150..4D..GX198612-198711

SELECT SALOON,MAROON,MAROON,TRIM3#

main74232-20081-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main74232-20081-04iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-22061-04iAT150..DX198310-198508

BLUE,BLUE,TRIM8#

main74210-22061-12iST150..DX,GX198301-198310

DEEP MAROON,RED/MAROON,TRIM3#

main74210-22061-14iAT150..DX198508-198711

BLUE,BLUE,TRIM8#

main74210-22061-23iST150..DX,GX198301-198310

SHADOW GRAY,GRAY,TRIM1#

main74260-20020-02iAT150,CT150,ST150..EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74260-20020-03iST150..EXS198301-198310

SHADOW GRAY,GRAY,TRIM1#

main74260-20020-04iAT150,CT150,ST150..EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main74260-20020-14iAT150,CT150,ST150..EXS,GX198508-198711

BLUE,BLUE,TRIM8#

main74260-20030-02iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74260-20030-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main74260-20030-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*PW,BLUE,BLUE,TRIM8#

main74260-20030-14iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74266CAP, DOOR ARMREST, RH

main74266-20040-02×2iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74266-20040-03×2iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74266-20040-04×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74266-20041-02×2iCT150,ST150..EXA,EXS198508-198711

W/*EL,MAROON,MAROON,TRIM3#

main74266-20041-03×2iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main74266-20041-04×2iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74267CAP, DOOR ARMREST, LH

main74266-20040-02×2iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74266-20040-03×2iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74266-20040-04×2iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74266-20041-02×2iCT150,ST150..EXA,EXS198508-198711

W/*EL,MAROON,MAROON,TRIM3#

main74266-20041-03×2iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main74266-20041-04×2iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-20020-02iST150..EXS198301-198310

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74271-20020-03iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,SHADOW GRAY,GRAY,TRIM1#

main74271-20020-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74271-20021-02iAT150,CT150,ST150..4D..GX198612-198711

SELECT SALOON,MAROON,MAROON,TRIM3#

main74271-20021-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main74271-20021-04iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-20010-02iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,DEEP MAROON,RED/MAROON,TRIM3#

main74272-20010-03iST150..EXS198301-198310

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74272-20010-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

W/*EL,BLUE,BLUE,TRIM8#

main74272-20011-02iCT150,ST150..EXA,EXS198508-198711

W/*EL,MAROON,MAROON,TRIM3#

main74272-20011-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198508-198711

W/*EL,GRAY,GRAY,TRIM1#

main74272-20011-04iCT150,ST150..EXA,EXS198508-198711

W/*EL,BLUE,BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-20330-03iAT150,CT150,ST150,16#..DX,GT,GX,STD,SX,SXR198301-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74310-20410

main74310-20330-05iAT150,CT150,ST150..DX,GX198508-198711

BEIGE,BEIGE,TRIM3#

sub74310-20410

main74310-20340-03iST162198508-198711

GT-R PACKAGE,GRAY,GRAY,TRIM1#

main74310-20340-05iAT150,CT150,ST150..EXA,EXS198301-198711

BEIGE,BEIGE,TRIM3#

main74310-20370-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198310-198610

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main74310-20370-05iCT150,ST150..EXA,EXS,SX198310-198508

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

74320VISOR ASSY, LH

main74320-20280-03iAT150,CT150,ST150..DX,GX,STD,SX198301-198408

LIGHT GRAY,GRAY,TRIM1#,8#

main74320-20280-05iAT150,CT150,ST150..DX,GX,SX198301-198408

BEIGE,BEIGE,TRIM3#

main74320-20290-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198310-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main74320-20290-05iAT150,CT150,ST150..EXA,EXS198301-198711

BEIGE,BEIGE,TRIM3#

main74320-20320-03iAT150,CT150,ST150,16#..DX,GT,GX,STD,SX,SXR198408-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74320-20340

main74320-20320-05iAT150,CT150,ST150..DX,GX,SX198408-198508

BEIGE,BEIGE,TRIM3#

sub74320-20340

74348HOLDER, VISOR

main74348-32010-03×2iAT150,CT150,ST150,16#198301-198702

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

sub74348-17010

sub74348-12020

main74348-32010-05×2iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

BEIGE,BEIGE,TRIM3#

sub74348-17010

sub74348-12020

main74348-32020-03×2iAT150,CT150,ST150,16#198702-198711

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

sub74348-12020

main74348-32020-15×2iAT150,CT150,ST150..DX,EXA,EXS,GX198702-198711

BEIGE,BEIGE,TRIM3#

sub74348-12020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-14030-03iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198310-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-12050

main74610-14030-15iCT150,ST150..EXA,EXS,SX198310-198508

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

sub74610-12050

main74610-32010-05iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

BEIGE,BEIGE,TRIM3#

sub74610-20040

main74610-32010-13iAT150,CT150,ST150,16#198301-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-20040

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-14030-03×2iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198310-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-12050

main74610-14030-15×2iCT150,ST150..EXA,EXS198508-198711

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

sub74610-12050

main74610-32010-05×2iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BEIGE,BEIGE,TRIM3#

sub74610-20040

main74610-32010-13×2iAT150,CT150,ST150,16#198301-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-20040

74613PLUG, ASSIST GRIP

main74617-16010-15×6iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

BEIGE,BEIGE,TRIM3#

main74617-16010-23×6iAT150,CT150,ST150,16#198301-198711

LIGHT GRAY,GRAY,TRIM1#,8#

9015960085

main90159-60085

9016460014

main90164-60014

9018906045

main90189-06045

9046710012

main90467-10012

9353045020

main93530-45020

25 parts on this diagram · 2 diagrams in section
