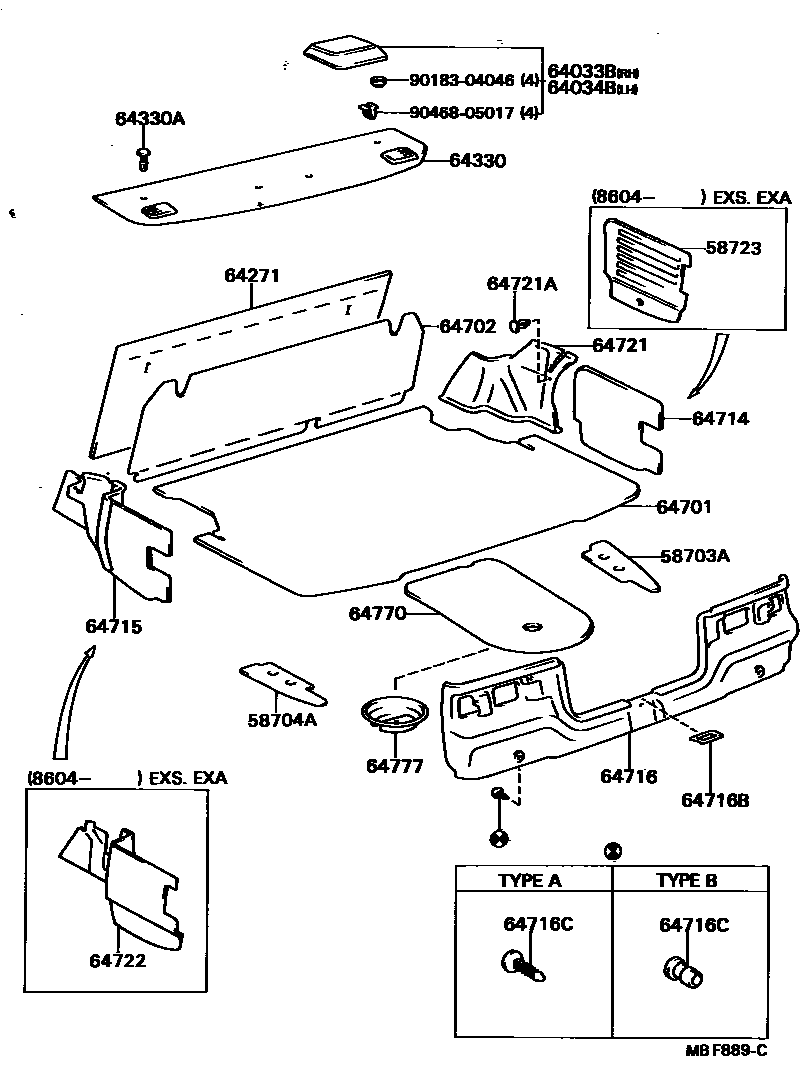

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20050iAT150,CT150,ST150,16#..4D198310-198711

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20050iAT150,CT150,ST150,16#..4D198310-198711

58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1

main58723-20040-03iCT150,ST150..4D..(EXA,EXS)198604-198711

GRAY,GRAY,TRIM1#

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-14030-02iAT150,CT150,ST150..4D..(EXA,EXS,SX)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main64033-14030-03iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198310-198601

SHADOW GRAY,GRAY,TRIM1#

main64033-14030-14iAT150,CT150,ST150..4D..(EXA,EXS,SX)198310-198508

BLUE,BLUE,TRIM8#

main64033-20110-02iAT150,CT150,ST150..4D..(EXA,EXS)198601-198711

DEEP MAROON,MAROON,TRIM3#

sub64033-20120

main64033-20110-03iAT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198601-198711

GRAY,GRAY,TRIM1#

sub64033-20120

main64033-20110-04iAT150,CT150,ST150..4D..(EXA,EXS)198601-198711

BLUE,BLUE,TRIM8#

sub64033-20120

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-14030-02iAT150,CT150,ST150..4D..(EXA,EXS,SX)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main64033-14030-03iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198310-198601

SHADOW GRAY,GRAY,TRIM1#

main64033-14030-14iAT150,CT150,ST150..4D..(EXA,EXS)198508-198601

BLUE,BLUE,TRIM8#

main64033-20110-02iAT150,CT150,ST150..4D..(EXA,EXS)198601-198711

DEEP MAROON,MAROON,TRIM3#

sub64033-20120

main64033-20110-03iAT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198601-198711

GRAY,GRAY,TRIM1#

sub64033-20120

main64033-20110-04iAT150,CT150,ST150..4D..(EXA,EXS)198601-198711

BLUE,BLUE,TRIM8#

sub64033-20120

64271BOARD, ROOM PARTITION, NO.1

main64271-20120iAT150..DX,STD198310-198711

main64271-20130iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)198310-198711

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20470-02iAT150,CT150,ST150..4D..(DX,GX,SX)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main64330-20470-03iAT150,CT150,ST150,162..4D..(DX,GT,GX,STD,SX)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main64330-20470-04iAT150,CT150,ST150..4D..(DX,GX,SX)198310-198508

BLUE,BLUE,TRIM8#

main64330-20470-14iAT150,CT150,ST150..4D..(DX,GX)198508-198711

BLUE,BLUE,TRIM8#

main64330-20480-02iAT150,CT150,ST150..4D..GX198310-198711

W/BACK SONER,DEEP MAROON,RED/MAROON,TRIM3#

main64330-20480-03iAT150,CT150,ST150..4D..GX198310-198711

W/BACK SONER,SHADOW GRAY,GRAY,TRIM1#

main64330-20480-04iAT150,CT150,ST150..4D..GX198310-198508

W/BACK SONER,BLUE,BLUE,TRIM8#

main64330-20480-14iAT150,CT150,ST150..4D..GX198508-198711

BLUE,BLUE,TRIM8#

main64330-20510-02iCT150,ST150..4D..(EXA,EXS)198310-198508

W/*SPG HOLE,DEEP MAROON,RED/MAROON,TRIM3#

main64330-20510-03iAT150,CT150,ST150,160..4D..(EXA,EXS,SXR)198508-198711

W/*SPG HOLE,SHADOW GRAY,GRAY,TRIM1#

main64330-20510-04iCT150,ST150..4D..(EXA,EXS)198310-198508

W/*SPG HOLE,BLUE,BLUE,TRIM8#

main64330-20510-14iAT150,CT150,ST150..4D..(EXA,EXS)198508-198711

W/*SPG HOLE,BLUE,BLUE,TRIM8#

main64330-20520-02iAT150,CT150,ST150..4D..(EXA,EXS)198310-198711

W/*SIS,DEEP MAROON,RED/MAROON,TRIM3#

main64330-20520-03iAT150,CT150,ST150,160..4D..(EXA,EXS,SXR)198310-198711

W/*SIS,SHADOW GRAY,GRAY,TRIM1#

main64330-20520-04iAT150,CT150,ST150..4D..(EXA,EXS)198310-198508

W/*SIS,BLUE,BLUE,TRIM8#

main64330-20520-14iAT150,CT150,ST150..4D..(EXA,EXS)198508-198711

W/*SIS,BLUE,BLUE,TRIM8#

main64330-20530-02iAT150..4D..EXS198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main64330-20530-03iAT150..4D..EXS198310-198711

SHADOW GRAY,GRAY,TRIM1#

main64330-20530-04iAT150..4D..EXS198310-198508

BLUE,BLUE,TRIM8#

main64330-20530-14iAT150..4D..EXS198508-198711

BLUE,BLUE,TRIM8#

main64330-20550-02iST150..4D..SX198310-198508

W/*SIS,DEEP MAROON,RED/MAROON,TRIM3#

main64330-20550-03iST150..4D..SX198310-198711

W/*SIS,SHADOW GRAY,GRAY,TRIM1#

main64330-20550-04iST150..4D..SX198310-198508

W/*SIS,BLUE,BLUE,TRIM8#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-02×4iAT150,CT150,ST150..4D..(DX,EXA,EXS,GX,SX)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08037

main90467-08046-03×4iAT150,CT150,ST150,16#..4D198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub90467-08037

main90467-08046-04×4iAT150,CT150,ST150..4D..(DX,EXA,EXS,GX,SX)198310-198508

BLUE,BLUE,TRIM8#

sub90467-08037

main90467-08046-14×4iAT150,CT150,ST150..4D..(DX,EXA,EXS,GX)198508-198711

BLUE,BLUE,TRIM8#

sub90467-08037

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-20220-03iAT150..DX,STD198310-198508

GRAY,GRAY,TRIM1#

main64711-20220-13iAT150..DX,STD198508-198711

GRAY,GRAY,TRIM1#

main64711-20230-03iAT150..4D..(EXS,GX)198310-198508

GRAY,GRAY,TRIM1#

main64711-20230-13iCT150,ST150,16#..4D..(GT,GX,SX,SXR)198508-198711

GRAY,GRAY,TRIM1#

main64711-20240iCT150,ST150..4D..(EXA,EXS)198310-198508

main64711-20340iST162198508-198711

GT-R PACKAGE

64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT

main64717-20090iAT150..4D..(EXS,GX)198310-198508

main64717-20100iCT150,ST150..4D..(EXA,EXS)198310-198508

main64717-20140iST150,16#..4D..(GT,GX,SX,SXR)198508-198711

main64717-20150iST162198508-198711

GT-R PACKAGE

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-20160-03iAT150..4D198310-198508

GRAY,GRAY,TRIM1#

main64714-20160-13iAT150..4D198508-198711

GRAY,GRAY,TRIM1#

main64714-20170-03iCT150,ST150..4D..(EXA,EXS)198310-198508

GRAY,GRAY,TRIM1#

main64714-20170-13iCT150,ST150..4D..(EXA,EXS)198508-198604

GRAY,GRAY,TRIM1#

64715COVER, LUGGAGE COMPARTMENT, LH

main64072-20010-03iAT150..4D..(EXS,GX)198310-198508

GRAY,GRAY,TRIM1#

main64072-20010-13iAT150..4D..(EXS,GX)198508-198711

GRAY,GRAY,TRIM1#

main64072-20030-03iCT150,ST150..4D..(EXA,EXS)198310-198508

GRAY,GRAY,TRIM1#

main64072-20030-13iCT150,ST150..4D..(EXA,EXS)198508-198604

GRAY,GRAY,TRIM1#

main64072-20060iST16#198508-198711

main64072-20070iST162198508-198711

GT-R PACKAGE

main64715-20160-03iAT150..DX,STD198310-198508

GRAY,GRAY,TRIM1#

main64715-20160-13iAT150..DX,STD198508-198711

GRAY,GRAY,TRIM1#

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20090-03iCT150,ST150..4D..(EXA,EXS)198310-198508

GRAY,GRAY,TRIM1#

main64716-20090-13iST162198508-198711

GT-R PACKAGE,GRAY,GRAY,TRIM1#

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-20030iAT150..4D198310-198711

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-23×9iCT150,ST150..4D..(EXA,EXS)198310-198508

TYPE A,GRAY,GRAY,TRIM1#

main90467-05004-33×9iST162198508-198711

GT-R PACKAGE,GRAY,GRAY,TRIM1#

main90467-05025-03×2iCT150,ST150..4D..(EXA,EXS)198310-198711

TYPE B,GRAY,GRAY,TRIM1#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20040-03iAT150..4D..(EXS,GX)198310-198508

GRAY,GRAY,TRIM1#

main64721-20040-13iCT150,ST150,16#..4D..(GT,GX,SX,SXR)198508-198711

GRAY,GRAY,TRIM1#

main64721-20050-03iCT150,ST150..4D..(EXA,EXS)198310-198508

GRAY,GRAY,TRIM1#

main64721-20050-13iST162198508-198711

GT-R PACKAGE,GRAY,GRAY,TRIM1#

main64721-20140-03iCT150,ST150..4D..(EXA,EXS)198604-198711

GRAY,GRAY,TRIM1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-01×2iAT150,CT150,ST150..4D..(EXA,EXS,GX,SX)198310-198508

GRAY,BLACK,TRIM1#

main90467-07158-33×2iST162198508-198711

GT-R PACKAGE,GRAY,GRAY,TRIM1#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-20110-03iCT150,ST150..4D..(EXA,EXS)198604-198711

GRAY,GRAY,TRIM1#

64770COVER ASSY, SPARE WHEEL

main64770-20060iAT150,CT150,ST150..4D198310-198508

main64770-20100iST16#198508-198711

main64770-20120iAT150,CT150,ST150..4D198508-198711

64777CLAMP, SPARE WHEEL COVER

main64777-32020iAT150,CT150,ST150,16#..4D198310-198612

main64777-32030iAT150,CT150,ST150,16#..4D198612-198711

9018304046

main90183-04046

9046805017

main90468-05017

22 parts on this diagram · 1 diagram in section
