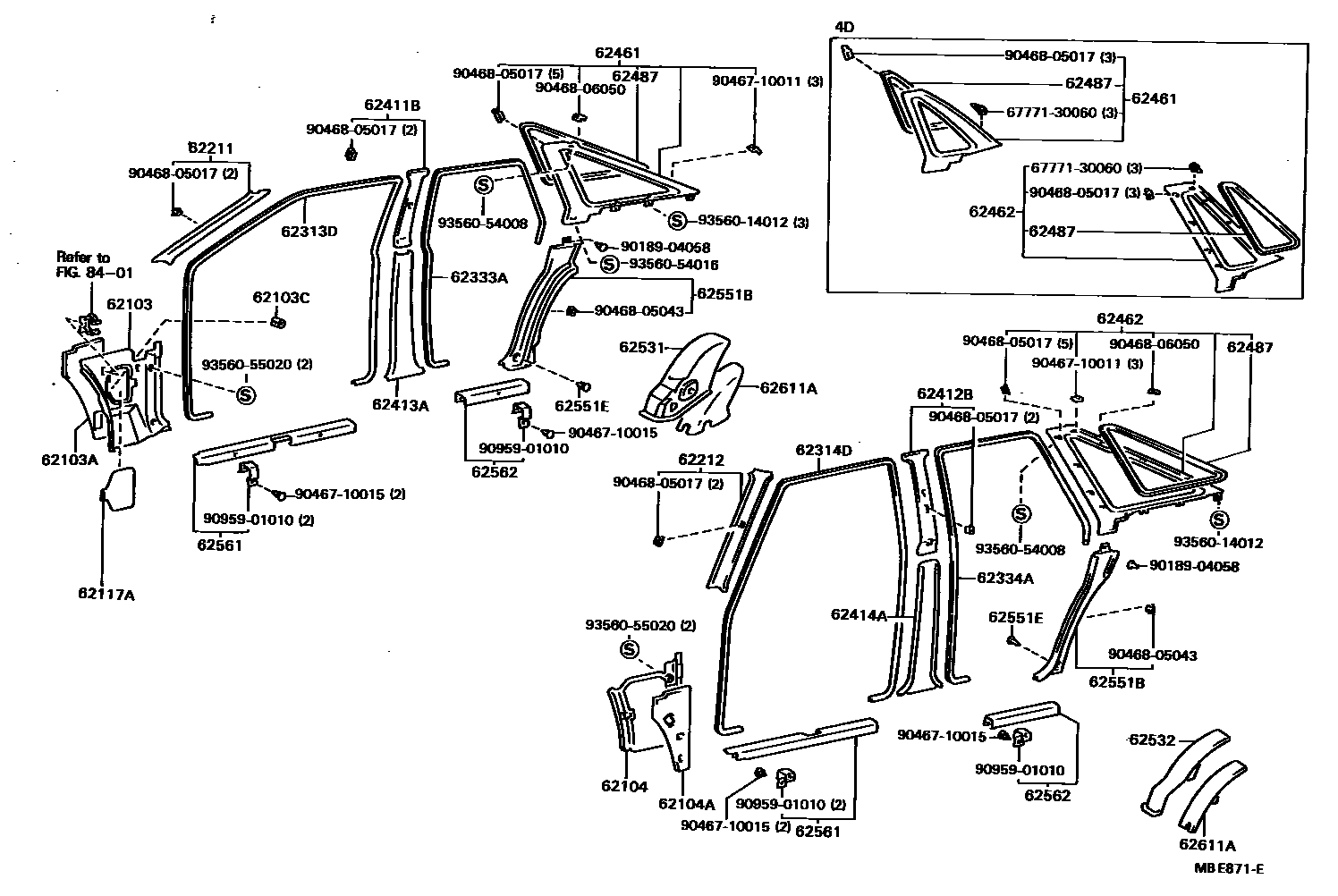

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-20110-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62101-20110-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62101-20110-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62101-20110-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-20060iAT150,CT150,ST150,16#198404-198711

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05023×2iAT150,CT150,ST150,16#198301-198711

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-20090-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62102-20090-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62102-20090-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62102-20090-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-20060iAT150,CT150,ST150,16#198404-198711

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-20020-02iST150198301-198310

DEEP MAROON,RED/MAROON,TRIM3#

main62117-20020-03iST150198301-198310

SHADOW GRAY,GRAY,TRIM1#

main62117-20050-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62117-20050-03iAT150,CT150,ST150198310-198508

SHADOW GRAY,GRAY,TRIM1#

main62117-20050-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62117-20051-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

MAROON,MAROON,TRIM3#

main62117-20051-03iAT150,CT150,ST150,16#198508-198711

GRAY,GRAY,TRIM1#

main62117-20051-04iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62211GARNISH, FRONT PILLAR, RH

main62211-20130-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62211-20130-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62211-20130-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62211-20130-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62212-20130-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62212-20130-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62212-20130-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62212-20130-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-20070-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62313-20070-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62313-20070-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62313-20070-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-20070-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62313-20070-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62313-20070-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198711

BLUE,BLUE,TRIM8#

main62313-20070-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62333ATRIM, REAR DOOR OPENING, RH

main62333-20030-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62333-20030-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62333-20030-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62333-20030-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62334ATRIM, REAR DOOR OPENING, LH

main62333-20030-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62333-20030-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62333-20030-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62333-20030-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-20210-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62411-20210-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62411-20210-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62411-20210-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-20210-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62412-20210-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62412-20210-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62412-20210-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-20080-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62413-20080-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62413-20080-04iAT150,CT150,ST150,16#198310-198711

BLUE,BLUE,TRIM8#

main62413-20080-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-20060-02iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62414-20060-03iAT150,CT150,ST150,16#198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62414-20060-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main62414-20060-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62461GARNISH, ROOF SIDE TRIM, RH

main62470-20120-02iST150..4D..EXA198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62470-20120-03iST150..4D..EXA198310-198711

SHADOW GRAY,GRAY,TRIM1#

main62470-20120-04iST150..4D..EXA198310-198508

BLUE,BLUE,TRIM8#

main62470-20120-14iST150..4D..EXA198508-198711

BLUE,BLUE,TRIM8#

main62471-20140-02iAT150,ST150..5D198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62471-20140-03iAT150,ST150..5D198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62471-20140-04iAT150,ST150..5D198310-198508

BLUE,BLUE,TRIM8#

main62471-20140-14iAT150,ST150..5D..(EXA,EXS,GX)198508-198711

BLUE,BLUE,TRIM8#

main62471-20150-02iAT150,CT150,ST150..4D..(DX,EXS,GX,SX)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62471-20150-03iAT150,CT150,ST150,16#..4D..(DX,EXS,GT,GX,STD,SX,SXR)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main62471-20150-04iAT150,CT150,ST150..4D..(DX,EXS,GX,SX)198310-198508

BLUE,BLUE,TRIM8#

main62471-20150-14iAT150,CT150,ST150..4D..(DX,EXS,GX)198508-198711

BLUE,BLUE,TRIM8#

62462GARNISH, ROOF SIDE TRIM, LH

main62472-20160-02iAT150,ST150..5D..(EXA,EXS,GX)198508-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62472-20160-03iAT150,ST150..5D198301-198711

SHADOW GRAY,GRAY,TRIM1#

main62472-20160-04iAT150,ST150..5D198310-198508

BLUE,BLUE,TRIM8#

main62472-20160-14iAT150,ST150..5D..(EXA,EXS,GX)198508-198711

BLUE,BLUE,TRIM8#

main62472-20170-02iAT150,CT150,ST150..4D..(DX,EXS,GX,SX)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

main62472-20170-03iAT150,CT150,ST150,16#..4D..(DX,EXS,GT,GX,STD,SX,SXR)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main62472-20170-04iAT150,CT150,ST150..4D..(DX,EXS,GX,SX)198310-198508

BLUE,BLUE,TRIM8#

main62472-20170-14iAT150,CT150,ST150..4D..(DX,EXS,GX)198508-198711

BLUE,BLUE,TRIM8#

main62480-20120-02iST150..4D..EXA198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main62480-20120-03iST150..4D..EXA198310-198711

SHADOW GRAY,GRAY,TRIM1#

main62480-20120-04iST150..4D..EXA198310-198508

BLUE,BLUE,TRIM8#

main62480-20120-14iST150..4D..EXA198508-198711

BLUE,BLUE,TRIM8#

62487MASK, ROOF SIDE INNER GARNISH MOULDING

main62487-20060iAT150,ST150..5D198301-198711

RH

main62487-20080iAT150,CT150,ST150,16#..4D198310-198711

RH

main62488-20060iAT150,ST150..5D198301-198711

LH

main62488-20070iAT150,CT150,ST150,16#..4D198310-198711

LH

62531COVER, WHEEL HOUSE TRIM, RH

main62613-20080-02iST150..DX,GX198301-198310

DEEP MAROON,RED/MAROON,TRIM3#

main62613-20080-03iST150..DX,GX198301-198310

SHADOW GRAY,GRAY,TRIM1#

62532COVER, WHEEL HOUSE TRIM, LH

main62614-20080-02iST150..DX,GX198301-198310

DEEP MAROON,RED/MAROON,TRIM3#

main62614-20080-03iST150..DX,GX198301-198310

SHADOW GRAY,GRAY,TRIM1#

62551BGARNISH, REAR SEAT SIDE

main62551-20050-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

RH,DEEP MAROON,RED/MAROON,TRIM3#

main62551-20050-03iAT150,CT150,ST150,16#198301-198711

RH,SHADOW GRAY,GRAY,TRIM1#

main62551-20050-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

RH,BLUE,BLUE,TRIM8#

main62551-20050-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

main62552-20040-02iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

LH,DEEP MAROON,RED/MAROON,TRIM3#

main62552-20040-03iAT150,CT150,ST150,16#198301-198711

LH,SHADOW GRAY,GRAY,TRIM1#

main62552-20040-04iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

LH,BLUE,BLUE,TRIM8#

main62552-20040-14iAT150,CT150,ST150..DX,EXA,EXS,GX198508-198711

BLUE,BLUE,TRIM8#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-06017-01×2iAT150,CT150,ST150,16#198508-198711

BLACK,BLACK

main90467-06017-12×2iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198301-198508

DEEP MAROON,RED/MAROON,TRIM3#

main90467-06017-14×2iAT150,CT150,ST150..DX,EXA,EXS,GX,SX198310-198508

BLUE,BLUE,TRIM8#

main90467-06017-53×2iAT150,CT150,ST150198301-198508

SHADOW GRAY,GRAY,TRIM1#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-20040iAT150,CT150,ST150,16#198301-198711

RH

main62562-20020iAT150,CT150,ST150,16#198301-198711

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-20040×2iAT150,CT150,ST150,16#198301-198711

62611APAD, QUARTER WHEEL HOUSE

main62611-14020×2iAT150,CT150,ST150,16#198301-198711

8401

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9018904058

main90189-04058

9046710011

main90467-10011

9046710015

main90467-10015

9046805017

main90468-05017

9046805043

main90468-05043

9046806050

main90468-06050

9095901010

main90959-01010

9356014012

main93560-14012

9356054008

main93560-54008

9356054016

main93560-54016

9356055020

main93560-55020

39 parts on this diagram · 1 diagram in section
