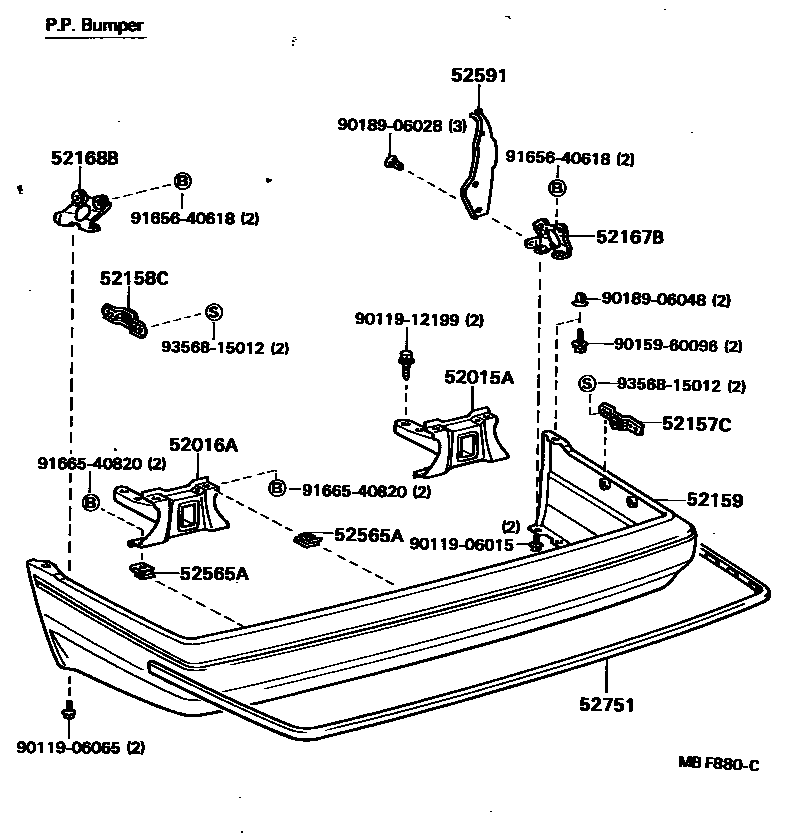

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-20070iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-20070iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-20050iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52157-20050iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

52159COVER, REAR BUMPER

main52159-20100iAT150,ST150..5D..(DX,GX,SX)198301-198508

main52159-20110-02iST150..EXS198301-198310

RED,RED/MAROON,391

sub52159-20902

main52159-20110-03iAT150,ST150..5D..(EXA,EXS)198301-198508

SILVER-M,GRAY,148

sub52159-20902

main52159-20110-04iAT150,ST150..5D..(EXA,EXS)198301-198508

BLUE-M,BLUE,884

sub52159-20902

main52159-20110-05iST150..EXS198301-198310

BEIGE-M,BEIGE,4D3

sub52159-20902

main52159-20110-06iAT150,ST150..5D..(EXA,EXS)198310-198508

DEEP BROWN-M,BROWN,490

sub52159-20902

main52159-20110-07iAT150,ST150..5D..(EXA,EXS)198301-198508

PALE GREEN-M,GREEN,6G9

sub52159-20902

main52159-20110-08iAT150,ST150..5D..(EXA,EXS)198301-198508

WHITE,IVORY,038

sub52159-20902

main52159-20110-12iAT150,ST150..5D..(EXA,EXS)198310-198508

RED,RED/MAROON,3D7

sub52159-20902

main52159-20110-14iAT150,ST150..5D..(EXA,EXS)198310-198508

DARK BLUE-M,BLUE,865

sub52159-20902

main52159-20110-15iAT150,ST150..5D..(EXA,EXS)198310-198508

LIGHT BEIGE-M,BEIGE,4D2 ,2N7

sub52159-20902

main52159-20110-22iAT150,ST150..5D..(EXA,EXS)198310-198508

GARNET RED-M,RED/MAROON,3E4

sub52159-20902

main52159-20140iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

main52159-20150iAT150,CT150,ST150..4D..GX198310-198711

W/BACK SONER

main52159-20160iST150..4D..SX198310-198508

main52159-20170-03iAT150,CT150,ST150..4D..(EXA,EXS)198310-198508

SILVER-M,GRAY,148

sub52159-20924

main52159-20170-06iAT150,CT150,ST150..4D..(EXA,EXS)198310-198508

DEEP BROWN-M,BROWN,490

sub52159-20924

main52159-20170-07iAT150,CT150,ST150..4D..(EXA,EXS)198310-198508

PALE GREEN-M,GREEN,6G9

sub52159-20924

main52159-20170-08iST150..4D..GX198409-198504

GX EXTRA,W/*UB,WHITE,IVORY,038

sub52159-20924

main52159-20170-14iAT150,CT150,ST150..4D..(EXA,EXS)198310-198508

DARK BLUE-M,BLUE,865

sub52159-20924

main52159-20170-15iST150..4D..GX198409-198504

GX EXTRA,W/*UB,L-BEIGE-M,BEIGE,4D2

sub52159-20924

main52159-20170-22iAT150,CT150,ST150..4D..(EXA,EXS)198310-198508

GARNET RED-M,RED/MAROON,3E4

sub52159-20924

main52159-20240iAT150,ST150..5D..GX198508-198711

main52159-20280-02iAT150,ST150..5D..(EXA,EXS,SX)198508-198711

SUPER RED 2,SUPER RED 2,3E5

sub52159-20911

main52159-20280-03iAT150,ST150..5D..(EXA,EXS,SX)198508-198711

BLUISH SILVER-M,BLUISH SILVER M,160

sub52159-20911

main52159-20280-04iAT150,ST150..5D..(EXA,EXS,SX)198508-198711

DEEP BLUE,DEEP BLUE,8B1

sub52159-20911

main52159-20280-08iAT150,ST150..5D..(EXA,EXS,SX)198508-198604

WHITE,WHITE,041

sub52159-20911

main52159-20280-12iAT150,ST150..5D..(EXA,EXS,SX)198508-198604

GARNET RED-M,GARNET RED METALLIC,3E4

sub52159-20911

main52159-20280-13iAT150,ST150..5D..(EXA,EXS,SX)198508-198711

DARK GRAY-M,DARK GRAY METALLIC,162

sub52159-20911

main52159-20280-18iAT150,ST150..5D..(EXA,EXS,SX)198604-198711

SUPER WHITE,SUPER WHITE 2,040

sub52159-20911

main52159-20280-22iAT150,ST150..5D..(EXA,EXS,SX)198508-198711

SHELL-M,SHELL METALLIC,3E3

sub52159-20911

main52159-20280-23iAT150,ST150..5D..(EXA,EXS,SX)198508-198711

GREENISH SILVER-M,GREENISH SILVER M,154

sub52159-20911

main52159-20280-32iAT150,ST150..5D..(EXA,EXS,SX)198604-198711

RED-M,RED METALLIC,3G7

sub52159-20911

main52159-20310-02iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198508-198711

SUPER RED 2,SUPER RED 2,3E5

sub52159-20926

main52159-20310-03iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198508-198711

BLUISH SILVER-M,BLUISH SILVER M,160

sub52159-20926

main52159-20310-04iAT150,CT150,ST150..4D..(EXA,EXS,SX)198508-198711

DEEP BLUE,DEEP BLUE,8B1

sub52159-20926

main52159-20310-08iAT150,CT150,ST150..4D..GX198512-198604

GX EXTRA SALOON,WHITE,WHITE,041

sub52159-20926

main52159-20310-12iAT150,CT150,ST150..4D..(EXA,EXS,SX)198508-198604

GARNET RED-M,GARNET RED,3E4

sub52159-20926

main52159-20310-13iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198508-198711

DARK GRAY-M,DARK GRAY METALLIC,162

sub52159-20926

main52159-20310-18iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198604-198711

SUPER WHITE,SUPER WHITE 2,040

sub52159-20926

main52159-20310-22iAT150,CT150,ST150..4D..GX198512-198608

GX EXTRA SALOON,SHELL-M,SHELL METALLIC,3E3

sub52159-20926

main52159-20310-23iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198508-198711

GREENISH SILVER-M,GREENISH SILVER M,154

sub52159-20926

main52159-20310-32iAT150,CT150,ST150..4D..(EXA,EXS,SX)198604-198711

RED-M,RED METALLIC,3G7

sub52159-20926

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-20010iAT150..5D;ST150..5D..GX;ST150..EXA,EXS,SX;AT150,CT150,ST16#..4D..(EXS,GT,SXR)198508-198711

main52167-20020iAT150,CT150,ST150198301-198508

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-20010iAT150,CT150,ST150198301-198508

main52168-20030iAT150..5D;ST150..5D..GX;ST150..EXA,EXS,SX;AT150,CT150,ST16#..4D..(EXS,GT,SXR)198508-198711

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040×8iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

main52565-20030iST150..4D..GX198409-198504

RH,GX EXTRA,W/*UB

main52565-20090iAT150,CT150,ST150..4D..GX198512-198711

GX EXTRA SALOON,SELECT SALOON

main52566-20010iAT150,ST150..4D..GX198504-198508

LH,GX EXTRA,W/*UB

52591SEAL, REAR BUMPER SIDE, RH

main52591-20010iAT150,CT150,ST150..4D..(DX,GX,STD)198508-198711

main52591-20020iAT150..5D;ST150..5D..GX;ST150..EXA,EXS,SX;AT150,CT150,ST16#..4D..(EXS,GT,SXR)198508-198711

52751MOULDING, REAR BUMPER

main52751-20040iAT150,ST150..5D198301-198508

main52751-20060iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

main52751-20070iAT150,ST150..4D..GX198504-198508

GX EXTRA,W/*UB

main52751-20120iAT150,ST150..5D198508-198711

main52751-20130iAT150,CT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR)198508-198711

9011906015

main90119-06015

9011906065

main90119-06065

9011912199

main90119-12199

9015960096

main90159-60096

9018906028

main90189-06028

9018906048

main90189-06048

9165640618

main91656-40618

9166540820

main91665-40820

9356815012

main93568-15012

19 parts on this diagram · 3 diagrams in section
