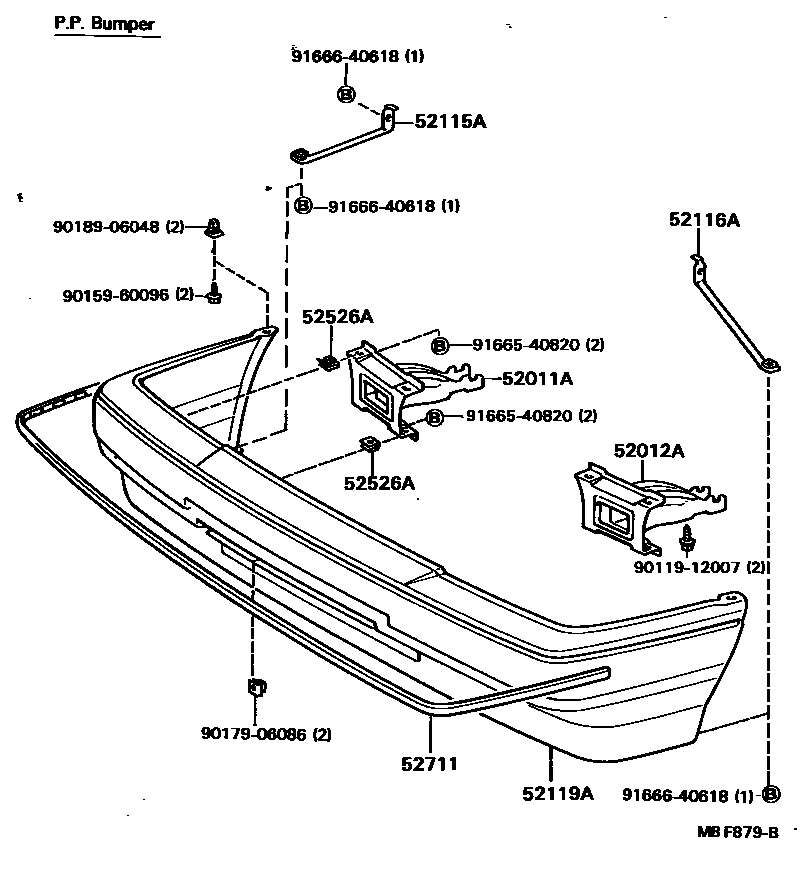

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-20120iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198508

main52011-20170iAT150,CT150,ST150..4D..(DX,GX,STD)198508-198711

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-20090iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198508

main52012-20120iAT150,CT150,ST150..4D..(DX,GX,STD)198508-198711

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20120iAT150,CT150,ST150198301-198508

main52115-20180iAT150,CT150,ST150198508-198711

main52115-20190iST16#198508-198711

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20100iAT150,CT150,ST150198301-198508

main52116-20160iAT150,CT150,ST150198508-198711

main52116-20170iST16#198508-198711

52119ACOVER, FRONT BUMPER

main52119-20100iAT150,ST150..5D..(DX,GX,SX)198301-198508

main52119-20110-02iST150..EXS198301-198310

RED,RED/MAROON,391

sub52119-20901

main52119-20110-03iAT150,CT150,ST150..EXA,EXS198301-198508

SILVER-M,GRAY,148

sub52119-20901

main52119-20110-04iAT150,CT150,ST150..EXA,EXS198301-198508

BLUE-M,BLUE,884

sub52119-20901

main52119-20110-05iST150..EXS198301-198310

BEIGE-M,BEIGE,4D3

sub52119-20901

main52119-20110-06iAT150,CT150,ST150..EXA,EXS198310-198508

DEEP BROWN-M,BROWN,490

sub52119-20901

main52119-20110-07iAT150,CT150,ST150..EXA,EXS198301-198508

PALE GREEN-M,GREEN,6G9

sub52119-20901

main52119-20110-08iAT150,CT150,ST150..EXA,EXS198301-198508

WHITE,IVORY,038

sub52119-20901

main52119-20110-08iST150..4D..GX198409-198508

GX EXTRA,W/*UB,WHITE,IVORY,038

sub52119-20901

main52119-20110-12iAT150,CT150,ST150..EXA,EXS198310-198508

RED,RED/MAROON,3D7

sub52119-20901

main52119-20110-14iAT150,CT150,ST150..EXA,EXS198310-198508

DARK BLUE-M,BLUE,865

sub52119-20901

main52119-20110-15iAT150,ST150..4D..GX198409-198508

GX EXTRA,W/*UB,L-BEIGE-M,BEIGE,4D2

sub52119-20901

main52119-20110-15iAT150,CT150,ST150..EXA,EXS198310-198508

LIGHT BEIGE-M,BEIGE,4D2 ,2N7

sub52119-20901

main52119-20110-22iST150..4D..GX198409-198508

GX EXTRA,*UB,GARNET RED-M,RED/MAROON,3E4

sub52119-20901

main52119-20110-22iAT150,CT150,ST150..EXA,EXS198310-198508

GARNET RED-M,RED/MAROON,3E4

sub52119-20901

main52119-20120iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198508

main52119-20260iAT150,CT150,ST150..4D..(DX,GX,STD)198508-198711

main52119-20280iAT150,ST150..5D..GX198508-198711

main52119-20290-02iAT150,CT150,ST150..EXA,EXS,SX198508-198711

SUPER RED 2,SUPER RED 2,3E5

sub52119-20908

main52119-20290-03iAT150,CT150,ST150..EXA,EXS,SX198508-198711

BLUISH SILVER-M,BLUISH SILVER M,160

sub52119-20908

main52119-20290-04iAT150,CT150,ST150..EXA,EXS,SX198508-198711

DEEP BLUE,DEEP BLUE,8B1

sub52119-20908

main52119-20290-08iAT150,CT150,ST150..4D..GX198512-198604

GX EXTRA SALOON,WHITE,WHITE,041

sub52119-20908

main52119-20290-08iAT150,CT150,ST150..EXA,EXS,SX198508-198604

WHITE,WHITE,041

sub52119-20908

main52119-20290-12iAT150,CT150,ST150..EXA,EXS,SX198508-198604

GARNET RED-M,GARNET RED METALLIC,3E4

sub52119-20908

main52119-20290-13iAT150,CT150,ST150..EXA,EXS,SX198508-198711

DARK GRAY-M,DARK GRAY METALLIC,162

sub52119-20908

main52119-20290-18iAT150,CT150,ST150..4D..GX198604-198608

GX EXTRA SALOON,WHITE,SUPER WHITE 2,040

sub52119-20908

main52119-20290-18iAT150,CT150,ST150..4D..GX198608-198711

WHITE,SUPER WHITE 2,040

sub52119-20908

main52119-20290-18iAT150,CT150,ST150..EXA,EXS,SX198604-198711

SUPER WHITE,SUPER WHITE 2,040

sub52119-20908

main52119-20290-22iAT150,CT150,ST150..4D..GX198508-198711

SHELL-M,SHELL METALLIC,3E3

sub52119-20908

main52119-20290-22iAT150,CT150,ST150..4D..GX198512-198608

GX EXTRA SALOON,SHELL-M,SHELL METALLIC,3E3

sub52119-20908

main52119-20290-23iAT150,CT150,ST150..EXA,EXS,SX198508-198711

GREENISH SILVER-M,GREENISH SILVER M,154

sub52119-20908

main52119-20290-32iAT150,CT150,ST150..EXA,EXS,SX198604-198711

RED-M,RED METALLIC,3G7

sub52119-20908

main52119-20320-02iST16#198508-198711

SUPER RED 2,SUPER RED 2,3E5

sub52119-20936

main52119-20320-03iST16#198508-198711

BLUISH SILVER-M,BLUISH SILVER M,160

sub52119-20936

main52119-20320-08iST16#198508-198604

WHITE,WHITE,041

sub52119-20936

main52119-20320-13iST16#198508-198711

DARK GRAY-M,DARK GRAY METALLIC,162

sub52119-20936

main52119-20320-18iST16#198604-198711

SUPER WHITE,SUPER WHITE 2,040

sub52119-20936

main52119-20320-23iST16#198508-198711

GREENISH SILVER-M,GREENISH SILVER,154

sub52119-20936

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-20020iST150..4D..GX198409-198508

GX EXTRA,W/*UB

main52526-20020iAT150..5D;ST150..5D..GX;ST150..DX,EXA,EXS,SX;AT150,CT150,ST16#..4D..(EXS,GT,SXR)198301-198711

main52526-20020iAT150,CT150,ST150..4D..GX198512-198711

W/*UB

main52565-12040iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

52711MOULDING, FRONT BUMPER

main52711-20030iAT150..5D;ST150..5D..GX;ST150..DX,EXA,EXS,SX;AT150,CT150..4D..EXS198301-198508

main52711-20030iST150..4D..GX198409-198508

GX EXTRA,W/*UB

main52711-20040iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198508

main52711-20090iAT150,CT150,ST150..4D..(DX,GX,STD)198508-198711

main52711-20100iAT150,CT150,ST150..4D..GX198512-198711

W/*UB

main52711-20100iAT150..5D;ST150..5D..GX;ST150..EXA,EXS,SX;AT150,CT150..4D..EXS198508-198711

main52711-20110iST16#198508-198711

9011912007

main90119-12007

9015960096

main90159-60096

9017906086

main90179-06086

9018906048

main90189-06048

9166540820

main91665-40820

9166640618

main91666-40618

13 parts on this diagram · 4 diagrams in section
