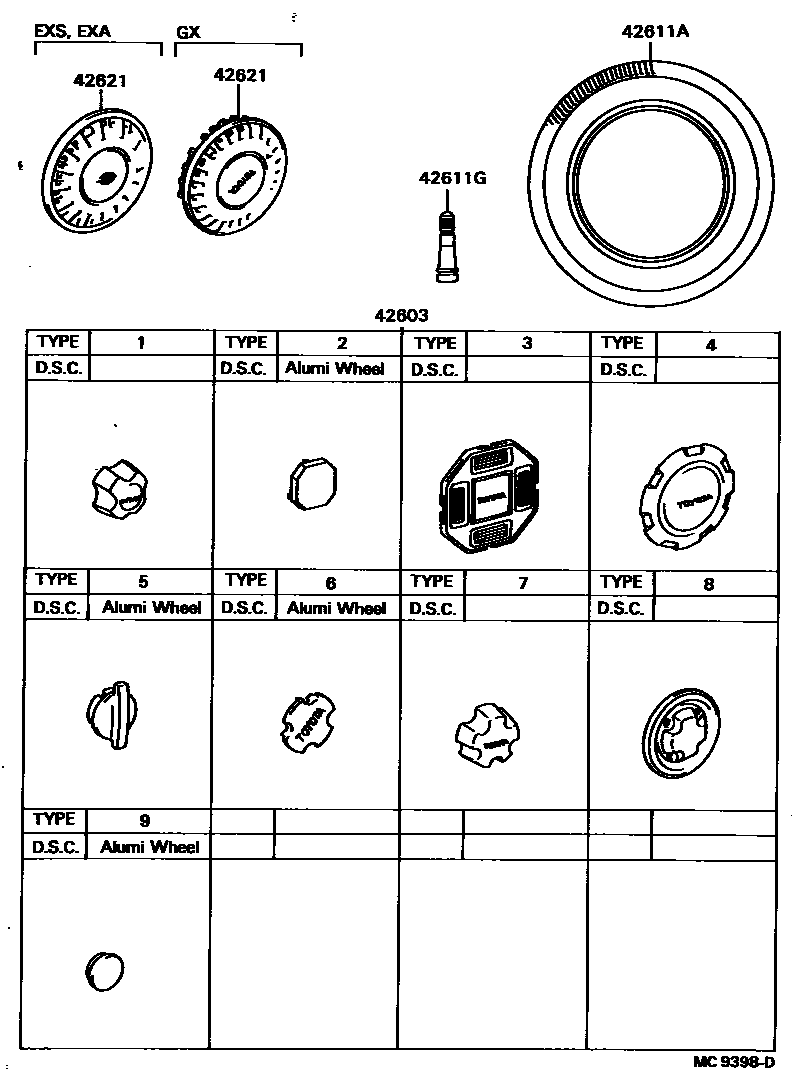

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16100×4iAT150,ST150..DX,STD198301-198612

TYPE 1

main42603-16180×4iST150198301-198310

TYPE 2,ALUMI WHEEL

main42603-20080×4iST150..EXS198301-198310

TYPE 3

main42603-20090×4iAT150,CT150,ST150..GX198301-198508

TYPE 4

main42603-20100×4iAT150..EXS;CT150,ST150198310-198508

TYPE 5,ALUMI WHEEL

main42603-20120×4iST150..SX198405-198508

TYPE 3

main42603-20140×4iST160198508-198711

TYPE 6,ALUMI WHEEL

main42603-20150×4iST162198508-198711

main42603-20170×4iST150,160..SX,SXR198508-198711

TYPE 8

main42638-16200×4iAT150..DX,STD198612-198711

TYPE 1

sub42638-12290

main42638-32040×4iST162198508-198711

TYPE 9,ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-12410×4iAT150,CT150,ST150..CBR,CI,DSL198301-198711

165SR13

main42652-12430×4iCT150,ST150..CBR,CI,DSL198301-198508

175/70SR13

main42652-12630×4iST162198508-198711

195/60R14

main42652-16220iAT150,CT150,ST150198301-198711

T115/70D14,SPAR

main42652-16230×4iST150..EFI198310-198711

175/70SR13

main42652-20150×4iST160198508-198711

185/70SR13

main42652-32030iST16#198508-198711

T125/70D14,SPAR

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAT150,CT150,ST150,16#198301-198711

42621CAP, WHEEL

main42602-20070×4iAT150,CT150,ST150..EXA,EXS198405-198604

main42602-20071×4iAT150,CT150,ST150..EXA,EXS198604-198711

main42621-20250×4iAT150,CT150,ST150..GX198508-198604

main42621-20300×4iAT150,CT150,ST150..GX198604-198711

4 parts on this diagram · 2 diagrams in section
