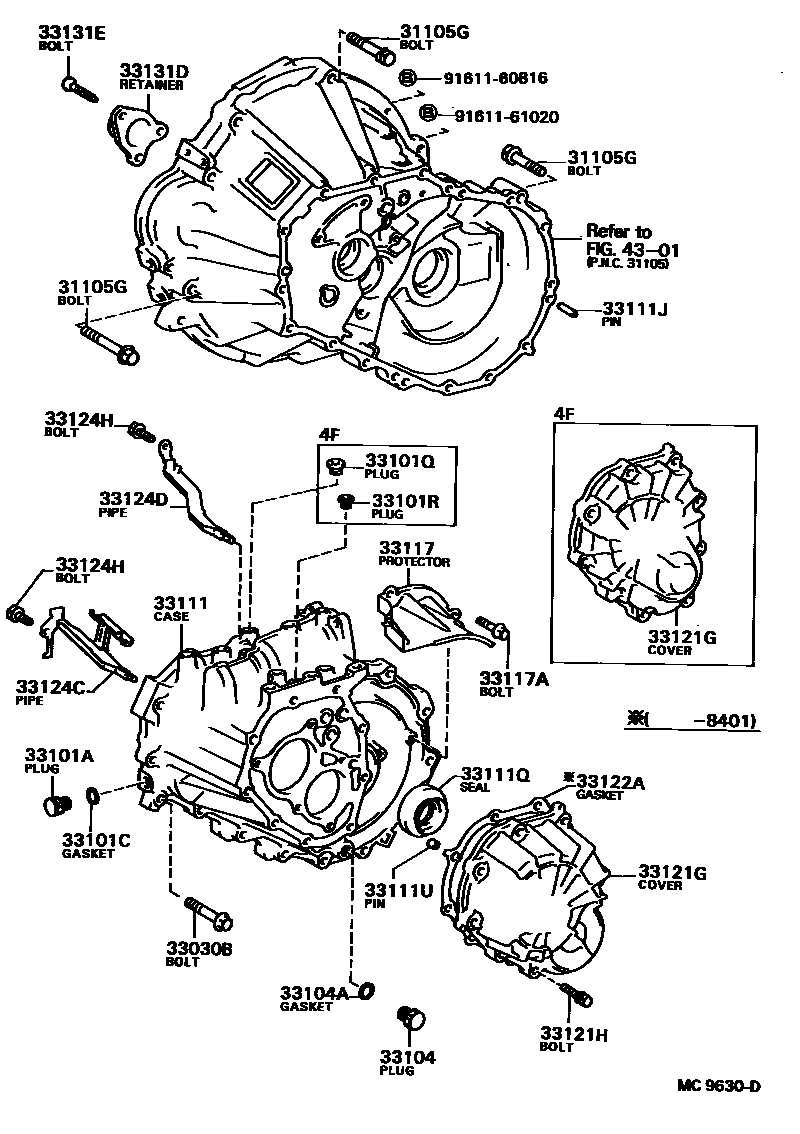

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT150,ST150,16#..5F198408-198711

sub91641-H0820

main90105-10055iCT150,ST150..5F198301-198408

main90105-10077iAT150..MTM198310-198408

main90119-12042iAT150..MTM198310-198711

main90119-12168×3iAT150,CT150,ST150,16#..MTM198301-198711

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042×17iCT150,ST150,16#..5F198301-198711

sub90105-08430

main90105-08064×16iAT150..MTM198310-198711

sub90105-08353

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCT150,ST150,16#..5F198301-198711

main90341-18006iAT150..MTM198310-198711

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18007iAT150,CT150,ST150..MTM198301-198408

main90430-18008iAT150,CT150,ST150,16#..MTM198408-198711

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iAT150..4F198310-198711

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90341-10065iAT150..4F198310-198711

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT150,CT150,ST150,16#..MTM198502-198711

main90341-18057iCT150,ST150..5F198301-198502

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iAT150,CT150,ST150..MTM198301-198408

main90430-18008iAT150,CT150,ST150,16#..MTM198408-198711

33111CASE, MANUAL TRANSMISSION

main33111-12170iAT150..MTM198310-198608

main33111-16040iAT150..MTM198608-198711

sub33111-16070

sub90109-12073

main33111-32010iST150..5F198301-198309

main33111-32011iCT150,ST150..5F198309-198404

sub33111-32H00

main33111-32012iCT150,ST150..5F198404-198507

sub90341-16001

main33111-32013iCT150,ST150,16#..5F198507-198604

sub33151-32011

main33111-32014iCT150,ST150,16#..5F198604-198711

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iAT150,CT150,ST150,16#..MTM198301-198711

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT150..MTM198310-198711

sub90311-34017

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAT150..MTM198310-198711

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAT150..MTM198310-198711

sub33117-16010

main33117-32010iCT150,ST150..5F198301-198408

main33117-32011iCT150,ST150,16#..5F198408-198711

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAT150,CT150,ST150,16#..MTM198301-198711

sub91641-H0820

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12010iAT150..4F198310-198711

main33102-12020iAT150..5F198310-198711

sub33102-12021

main33102-32010iCT150,ST150..5F198301-198404

main33102-32011iCT150,ST150,16#..5F198404-198711

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08057×8iCT150,ST150..5F198301-198404

main90105-08089×8iCT150,ST150,16#..5F198404-198711

sub90105-08273

main91611-60835×9iAT150..MTM198310-198711

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-12040iAT150..MTM198310-198401

main33122-32010iCT150,ST150..5F198301-198404

main33122-32011iCT150,ST150..5F198404-198504

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT150..MTM198310-198711

main33124-32010iCT150,ST150,16#..5F198301-198510

main33124-32011iCT150,ST150,16#..5F198510-198711

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT150..MTM198310-198711

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60812×2iAT150..MTM198310-198411

sub91611-B0812

main91611-60820×2iAT150..MTM198411-198711

sub91611-G0820

main91651-60618iCT150,ST150,16#..5F198301-198711

33131DRETAINER, BEARING, FRONT

main33131-12070iAT150..MTM198310-198708

main33131-12071iAT150..MTM198708-198711

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAT150..MTM198310-198711

4301

9161160816

main91611-60816

9161161020

main91611-61020

25 parts on this diagram · 2 diagrams in section
