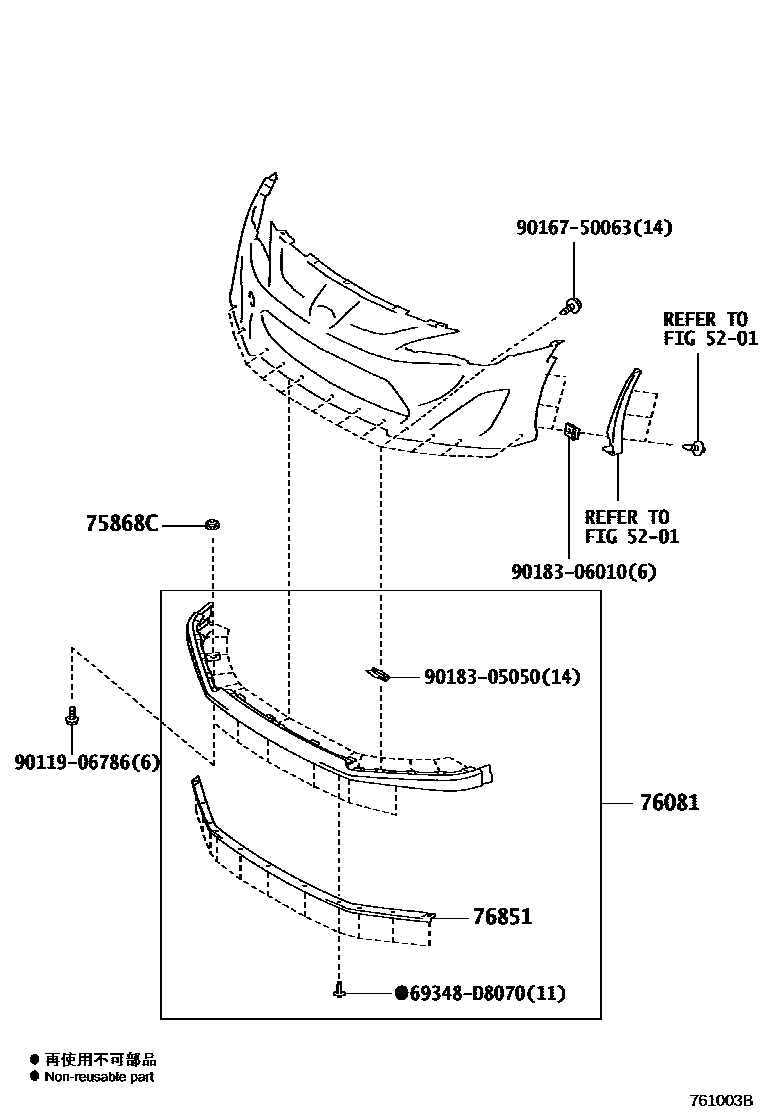

MUDGUARD & SPOILER

0001 1���� 0002 1��

5201

75868CCLIP, REAR SPOILER, NO.2

main90467-06169×6iGRMN86201602

76081SPOILER SUB-ASSY, FRONT

main76081-18010iGRMN86201602

76851COVER, FRONT SPOILER

main76851-18010iGRMN86201602

69348D8070JOINT, ADJUSTING

main69348-D8070

9011906786

main90119-06786

9016750063

main90167-50063

9018305050

main90183-05050

9018306010

main90183-06010

9 parts on this diagram · 2 diagrams in section
