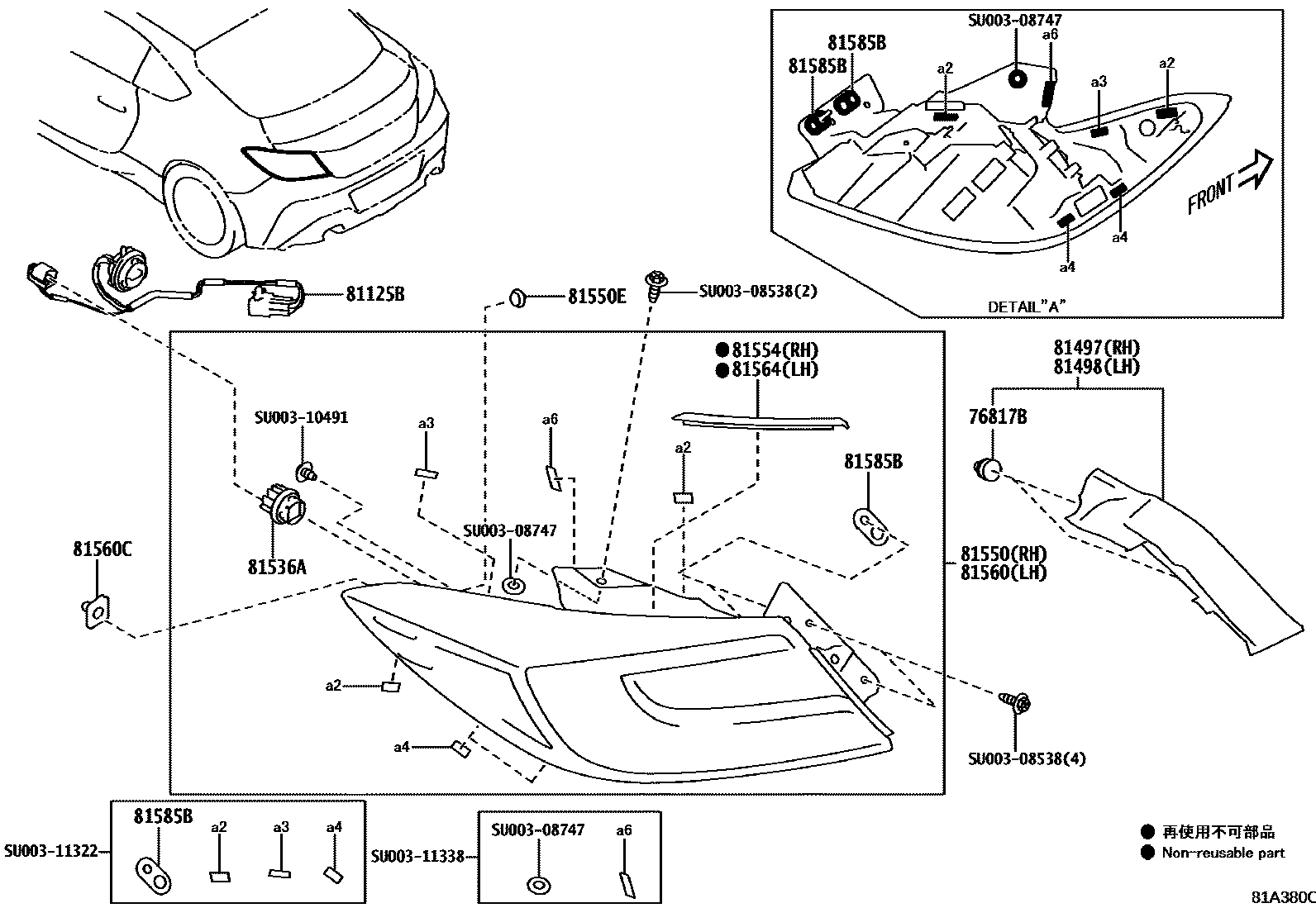

REAR COMBINATION LAMP

76817BCLIP, REAR LAMP

mainSU00308559iZN8202110-202308

81125BCORD, REAR COMBINATION LAMP

mainSU00310492iZN8202110-202302

subSU003-11359

mainSU00311359iZN8..B202302-202308

81497COVER, REAR COMBINATION LAMP, RH

mainSU00308748iZN8202110-202308

81498COVER, REAR COMBINATION LAMP, LH

mainSU00308749iZN8202110-202308

81536ALED, REAR COMBINATION LAMP

mainSU00310490iZN8202110-202308

81550LAMP ASSY, REAR COMBINATION, RH

mainSU00308738iZN8202110-202201

subSU003-10921

mainSU00310921iZN8202201-202203

subSU003-11020

mainSU00311020iZN8202204-202208

subSU003-11318

mainSU00311318iZN8..B202208-202308

81550ECLIP(FOR REAR COMBINATION LAMP)

mainSU00308558iZN8202110-202308

81554GASKET, REAR COMBINATION LAMP BODY, RH

mainSU00310488iZN8202110-202308

81560LAMP ASSY, REAR COMBINATION, LH

mainSU00308739iZN8202110-202201

subSU003-10922

mainSU00310922iZN8202201-202203

subSU003-11021

mainSU00311021iZN8202204-202208

subSU003-11319

mainSU00311319iZN8..B202208-202308

81560CGROMMET

mainSU00308565iZN8202110-202308

81564GASKET, REAR COMBINATION LAMP BODY, LH

mainSU00310489iZN8202110-202308

81585BPACKING, REAR CONBINATION

mainSU00308746iZN8202110-202308

SU00308538

mainSU003-08538

SU00308747

mainSU003-08747

SU00310491

mainSU003-10491

SU00311322

mainSU003-11322

SU00311338

mainSU003-11338

17 parts on this diagram · 1 diagram in section
