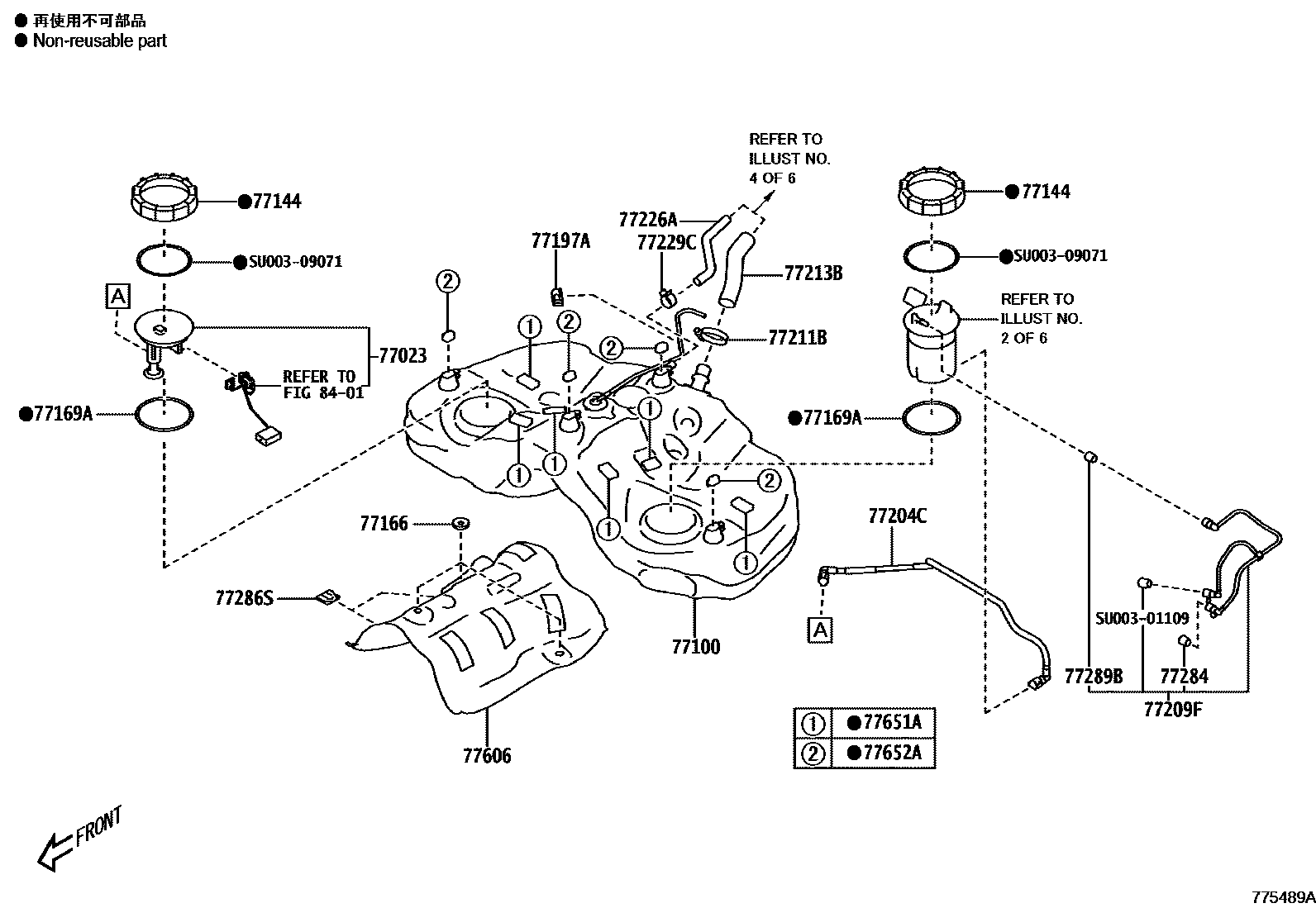

FUEL TANK & TUBE

0001 1�������� 0002 1���������������(����������) 0003 1������������� & ������ 0004 1���������� & ����������� ����0005 1�����(�����)����� 0006 1���������

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

mainSU00309073iZN8202110-202308

77100TANK ASSY, FUEL

mainSU00309062iZN8202110-202308

77144RETAINER, FUEL PUMP GAUGE

mainSU00309068iZN8202110-202308

77166CUSHION, FUEL TANK PROTECTOR

mainSU00301042iZN8202110-202308

77169AGASKET, FUEL SUCTION TUBE SET

mainSU00309066iZN8202110-202308

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

mainSU00309524iZN8202110-202308

77204CTUBE SUB-ASSY, FUEL TANK MAIN, NO.2

mainSU00309537iZN8202110-202308

77209FTUBE SUB-ASSY, FUEL TANK MAIN

mainSU00309534iZN8202110-202308

77211BCLAMP (FOR FUEL FILLER PIPE)

mainSU00308444iZN8202110-202308

77213BHOSE, FUEL TANK TO FILLER PIPE

mainSU00309538iZN8202110-202308

77226ATUBE, FUEL TANK BREATHER, NO.6

mainSU00309539iZN8202110-202308

77229CCLAMP, BREATHER TUBE

mainSU00301024iZN8..C202110-202308

subSU003-01025

77284CLAMP, FUEL TUBE

mainSU00301028iZN8202110-202308

77286SCUSHION, FUEL TANK PROTECTOR

mainSU00310559iZN8202110-202308

77289BCLAMP, FUEL TUBE, NO.3

mainSU00301031iZN8202110-202308

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

mainSU00309532iZN8202110-202308

77651ACUSHION, FUEL TANK, NO.1

mainSU00301047iZN8202110-202308

77652ACUSHION, FUEL TANK, NO.2

mainSU00309529iZN8202110-202308

8401

SU00301109

mainSU003-01109

SU00309071

mainSU003-09071

21 parts on this diagram · 6 diagrams in section
