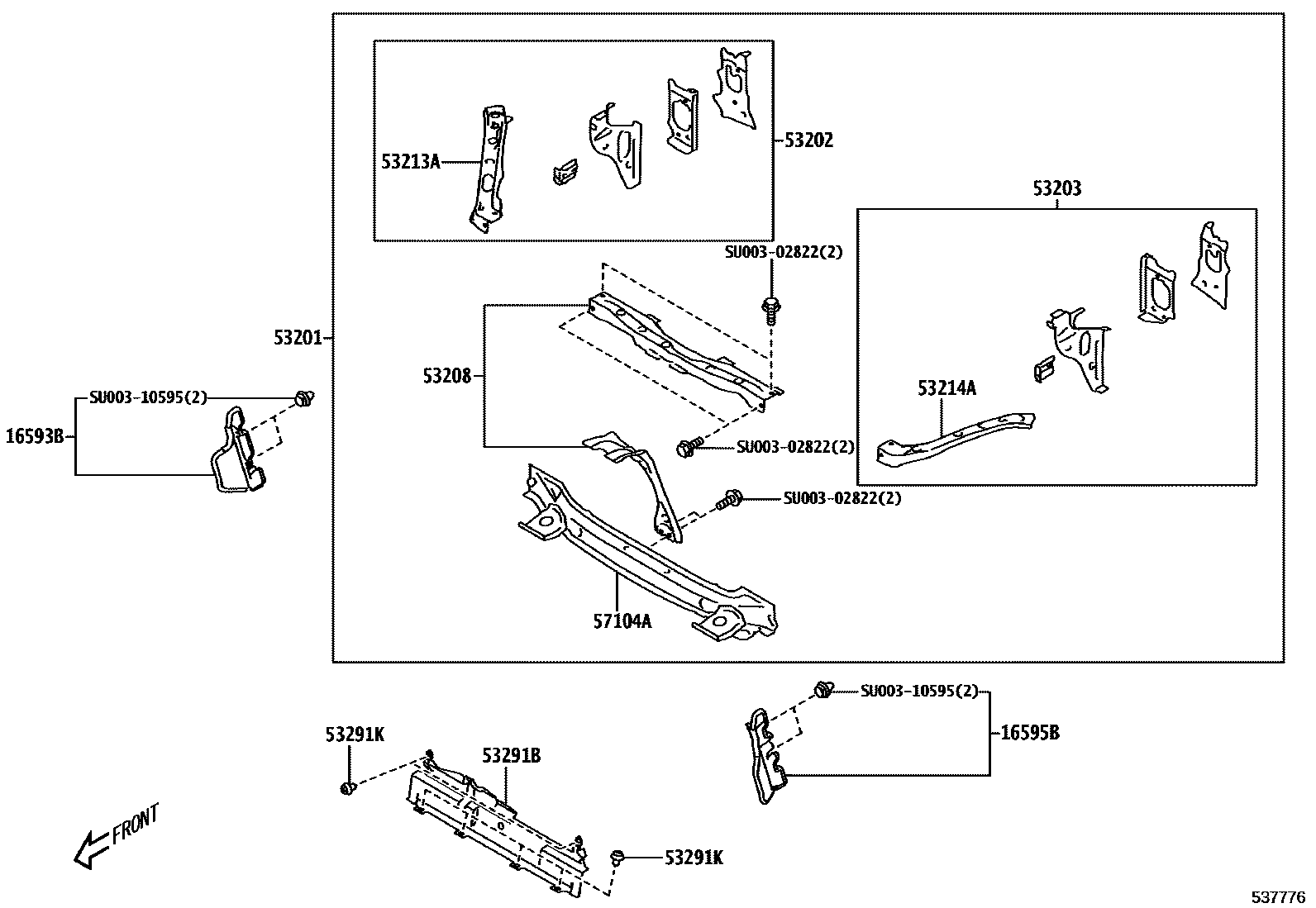

FRONT FENDER APRON & DASH PANEL

0001 1����������� 0002 1���������� & �������������� 0003 1��������� 0004 1������� ������ 0005 1������,����� 0006 1������������ �������

16593BGUIDE, RADIATOR AIR, NO.1 RH

mainSU00309288iFA24..ZN8..B202205-202308

16595BGUIDE, RADIATOR AIR, NO.1 LH

mainSU00309289iFA24..ZN8202110-202205

53201SUPPORT SUB-ASSY, RADIATOR

mainSU00309495iZN8202110-202205

53202SUPPORT SUB-ASSY, RADIATOR, RH

mainSU00309722iZN8202110-202205

53203SUPPORT SUB-ASSY, RADIATOR, LH

mainSU00309723iZN8202110-202205

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

mainSU00309719iZN8202110-202205

53213ASUPPORT, RADIATOR, UPPER RH

mainSU00309720iZN8202110-202205

53214ASUPPORT, RADIATOR, UPPER LH

mainSU00309721iZN8202110-202205

53291BPLATE, RADIATOR COVER

mainSU00309084iZN8202110-202205

53291KCLIP, RADIATOR COVER PLATE

mainSU00302984×6iZN8202110-202205

57104AMEMBER SUB-ASSY, FRONT CROSS

mainSU00301372iZN8202110-202205

SU00302822

mainSU003-02822

SU00310595

mainSU003-10595

13 parts on this diagram · 6 diagrams in section
