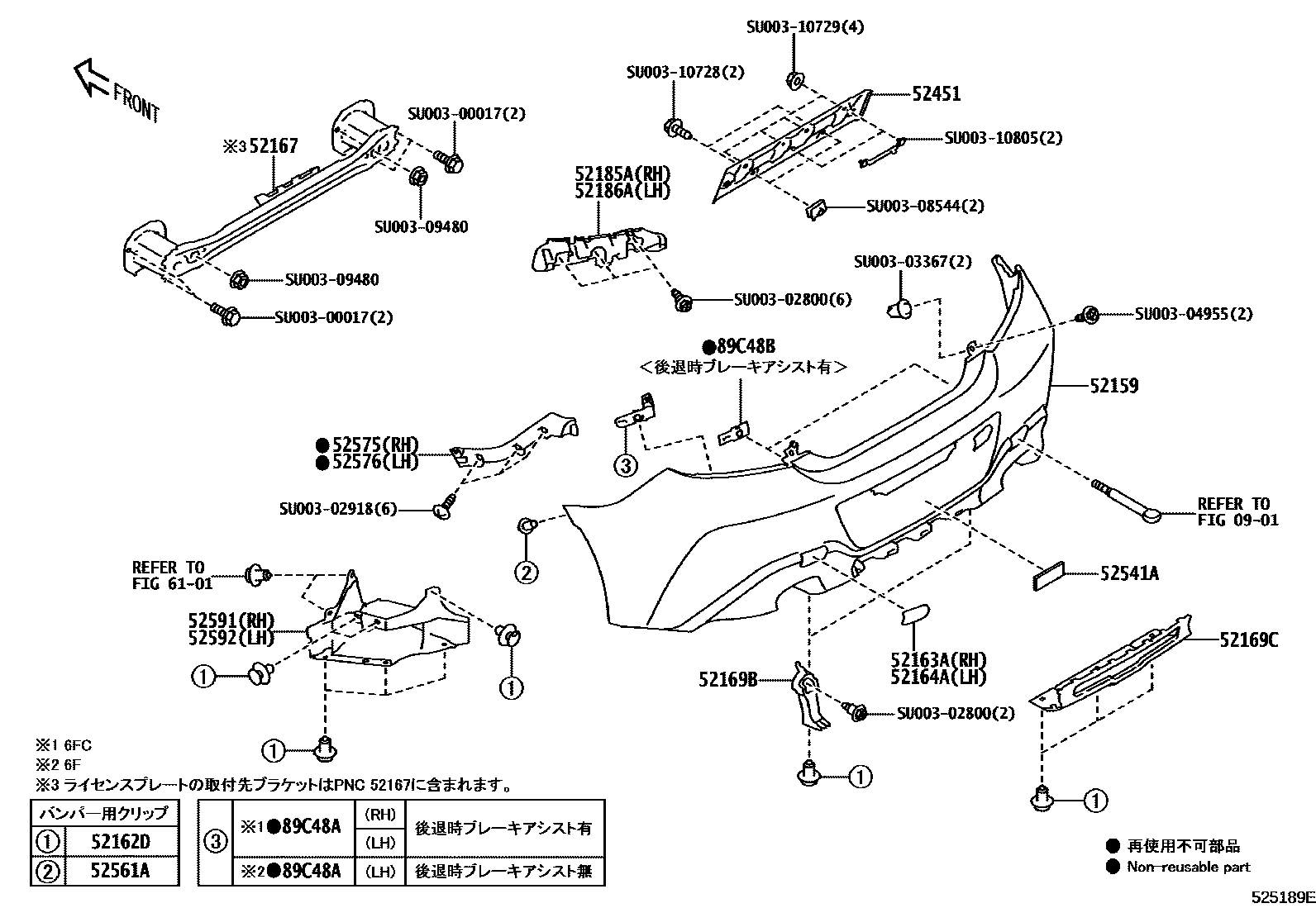

REAR BUMPER & BUMPER STAY

0901

52159COVER, REAR BUMPER

mainSU00309205iZN8..6F202110-202204

BRIGHT BLUE,DAR

subSU003-11053

mainSU00309206iZN8..6F202110-202204

SAPPHIRE BLUE PEARL,WCH

subSU003-11054

mainSU00309207iZN8..6F202110-202204

MAGNETITE GRAY M,P8Y

subSU003-11055

mainSU00309208iZN8..6F202110-202204

ICE SILVER METALLIC,G1U

subSU003-11057

mainSU00309209iZN8..6F202110-202204

IGNITION RED,DCK

subSU003-11058

mainSU00309210iZN8..6F202110-202204

CRYSTAL BLACK SILICA,D4S

subSU003-11059

mainSU00309211iZN8..6F202110-202204

CRYSTAL WHITE PEARL,K1X

subSU003-11060

mainSU00309212iZN8..6FC202110-202204

BRIGHT BLUE,DAR

subSU003-11061

mainSU00309213iZN8..6FC202110-202204

SAPPHIRE BLUE PEARL,WCH

mainSU00309214iZN8..6FC202110-202204

MAGNETITE GRAY M,P8Y

subSU003-11063

mainSU00309215iZN8..6FC202110-202204

ICE SILVER METALLIC,G1U

mainSU00309216iZN8..6FC202110-202204

IGNITION RED,DCK

subSU003-11221

mainSU00309217iZN8..6FC202110-202204

CRYSTAL BLACK SILICA,D4S

subSU003-11067

mainSU00309218iZN8..6FC202110-202204

CRYSTAL WHITE PEARL,K1X

subSU003-11223

mainSU00311053iZN8..6F202205-202208

BRIGHT BLUE,DAR

subSU003-11208

mainSU00311054iZN8..6F202205-202208

SAPPHIRE BLUE PEARL,WCH

subSU003-11209

mainSU00311055iZN8..6F202205-202208

MAGNETITE GRAY M,P8Y

subSU003-11210

mainSU00311057iZN8..6F202205-202208

ICE SILVER METALLIC,G1U

subSU003-11212

mainSU00311058iZN8..6F202205-202208

IGNITION RED,DCK

subSU003-11213

mainSU00311059iZN8..6F202205-202208

CRYSTAL BLACK SILICA,D4S

subSU003-11214

mainSU00311060iZN8..6F202205-202208

CRYSTAL WHITE PEARL,K1X

subSU003-11215

mainSU00311061iZN8..6FC202205-202208

BRIGHT BLUE,DAR

subSU003-11216

mainSU00311062iZN8..6FC202205-202208

SAPPHIRE BLUE PEARL,WCH

subSU003-11217

mainSU00311063iZN8..6FC202205-202208

MAGNETITE GRAY M,P8Y

subSU003-11218

mainSU00311065iZN8..6FC202205-202208

ICE SILVER METALLIC,G1U

subSU003-11220

mainSU00311066iZN8..6FC202205-202208

IGNITION RED,DCK

subSU003-11221

mainSU00311067iZN8..6FC202205-202208

CRYSTAL BLACK SILICA,D4S

subSU003-11222

mainSU00311068iZN8..6FC202205-202208

CRYSTAL WHITE PEARL,K1X

subSU003-11223

mainSU00311208iZN8..6F..(RC,RCG,RZ,SZ)..B202208-202308

BRIGHT BLUE,DAR

mainSU00311209iZN8..6F..(RC,RCG,RZ,SZ)..B202208-202308

SAPPHIRE BLUE PEARL,WCH

mainSU00311210iZN8..6F..(RC,RCG,RZ,SZ)..B202208-202308

MAGNETITE GRAY M,P8Y

mainSU00311211iZN8..6F..ORA202205-202308

SOLAR ORANGE PEARL

mainSU00311212iZN8..6F..(RC,RCG,RZ,SZ)..B202208-202308

ICE SILVER METALLIC,G1U

mainSU00311213iZN8..6F..(RC,RCG,RZ,SZ)..B202208-202308

IGNITION RED,DCK

mainSU00311214iZN8..6F..(RC,RCG,RZ,SZ)..B202208-202308

CRYSTAL BLACK SILICA,D4S

mainSU00311215iZN8..6F..(RC,RCG,RZ,SZ)..B202208-202308

CRYSTAL WHITE PEARL,K1X

mainSU00311216iZN8..6FC..(RZ,SZ)..B202208-202308

BRIGHT BLUE,DAR

mainSU00311217iZN8..(RC,RCG,RZ,SZ)..C202208-202308

SAPPHIRE BLUE PEARL,WCH

mainSU00311218iZN8..6FC..(RZ,SZ)..B202208-202308

MAGNETITE GRAY M,P8Y

mainSU00311219iZN8..6FC..ORA202205-202308

SOLAR ORANGE PEARL

mainSU00311220iZN8..(RC,RCG,RZ,SZ)..D202208-202308

ICE SILVER METALLIC,G1U

mainSU00311221iZN8..6FC..(RZ,SZ)..B202208-202308

IGNITION RED,DCK

mainSU00311222iZN8..6FC..(RZ,SZ)..B202208-202308

CRYSTAL BLACK SILICA,D4S

mainSU00311223iZN8..C202208-202308

CRYSTAL WHITE PEARL,K1X

mainSU00311489iZN8..(RC,RCG,RZ,SZ)..C202311

OASIS BLUE,XDA

mainSU00312002iZN8..D202407

MOSS GREEN,DMG

52162DPIECE, REAR BUMPER

mainSU00302984iZN8202110-202308

52163APLATE, REAR BUMPER, RH

mainSU00309271iZN8202110-202308

52164APLATE, REAR BUMPER, LH

mainSU00309272iZN8202110-202308

52167REINFORCEMENT, REAR BUMPER

mainSU00309232iZN8202110-202308

52169BBRACKET, REAR BUMPER, CENTER

mainSU00309231iZN8202110-202308

52169CCOVER, REAR BUMPER, LOWER

mainSU00309273iZN8202110-202308

52185ABRACKET, REAR BUMPER SIDE, RH

mainSU00309227iZN8202110-202201

subSU003-10932

mainSU00310932iZN8202201-202308

52186ABRACKET, REAR BUMPER SIDE, LH

mainSU00309228iZN8202110-202201

subSU003-10933

mainSU00310933iZN8202201-202308

52451GUARD, REAR BUMPER

mainSU00310806iZN8202110-202308

52541APROTECTOR, REAR BUMPER

mainSU00304202iZN8202110-202308

52561ACLIP(FOR REAR BUMPER RETAINER)

mainSU00302988iZN8202110-202212

mainSU00311351iZN8..B202212-202308

mainSU00311774iZN8..D202311

52575RETAINER, REAR BUMPER SIDE, RH

mainSU00309229iZN8202110-202308

52576RETAINER, REAR BUMPER SIDE, LH

mainSU00309230iZN8..B202110-202308

52591SEAL, REAR BUMPER SIDE, RH

mainSU00309269iZN8202110-202308

52592SEAL, REAR BUMPER SIDE, LH

mainSU00309270iZN8202110-202308

6101

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

mainSU00309240iZN8..6FC..(RZ,SZ)..B202110-202308

mainSU00309241iZN8..6FC202110-202308

mainSU00309242iZN8..6FC..(RZ,SZ)..B202110-202308

mainSU00309243iZN8..(RC,RCG,RZ,SZ)..C202110-202308

mainSU00309244iZN8..C202110-202308

mainSU00309245iZN8..(RC,RCG,RZ,SZ)..D202110-202308

mainSU00309246iZN8..(RC,RCG,RZ,SZ)..D202110-202308

mainSU00309247iZN8..6FC..(RZ,SZ)..B202110-202308

mainSU00309248iZN8..(RC,RCG,RZ,SZ)..C202110-202308

mainSU00309249iZN8..6FC..(RZ,SZ)..B202110-202308

mainSU00309250iZN8..(RC,RCG,RZ,SZ)..D202110-202308

mainSU00309251iZN8..6FC..(RZ,SZ)..B202110-202308

mainSU00309252iZN8..(RC,RCG,RZ,SZ)..D202110-202308

mainSU00309253iZN8..(RC,RCG,RZ,SZ)..D202110-202308

mainSU00309254iZN8..6F..B202110-202308

mainSU00311095iZN8..6FC..ORA202205-202308

mainSU00311096iZN8..6FC..ORA202205-202308

mainSU00311493iZN8..(RC,RCG,RZ,SZ)..C202311

mainSU00311494iZN8..(RC,RCG,RZ,SZ)..C202311

mainSU00312006iZN8..D202407

mainSU00312007iZN8..D202407

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

mainSU00309233iZN8..6FC..(RZ,SZ)..B202110-202308

BRIGHT BLUE,DAR

mainSU00309234iZN8..6FC202110-202308

SAPPHIRE BLUE PEARL,WCH

mainSU00309235iZN8..6FC202110-202308

MAGNETITE GRAY M,P8Y

mainSU00309236iZN8..6FC202110-202308

ICE SILVER METALLIC,G1U

mainSU00309237iZN8..(RC,RCG,RZ,SZ)..D202110-202308

IGNITION RED,DCK

mainSU00309238iZN8..(RC,RCG,RZ,SZ)..D202110-202308

CRYSTAL BLACK SILICA,D4S

mainSU00309239iZN8..6FC202110-202308

CRYSTAL WHITE PEARL,K1X

mainSU00311094iZN8..6FC..ORA202205-202308

SOLAR ORANGE PEARL

mainSU00311492iZN8..(RC,RCG,RZ,SZ)..C202311

OASIS BLUE,XDA

mainSU00312005iZN8..D202407

MOSS GREEN,DMG

SU00300017

mainSU003-00017

SU00302800

mainSU003-02800

SU00302918

mainSU003-02918

SU00303367

mainSU003-03367

SU00304955

mainSU003-04955

SU00308544

mainSU003-08544

SU00309480

mainSU003-09480

SU00310728

mainSU003-10728

SU00310729

mainSU003-10729

SU00310805

mainSU003-10805

30 parts on this diagram · 1 diagram in section
