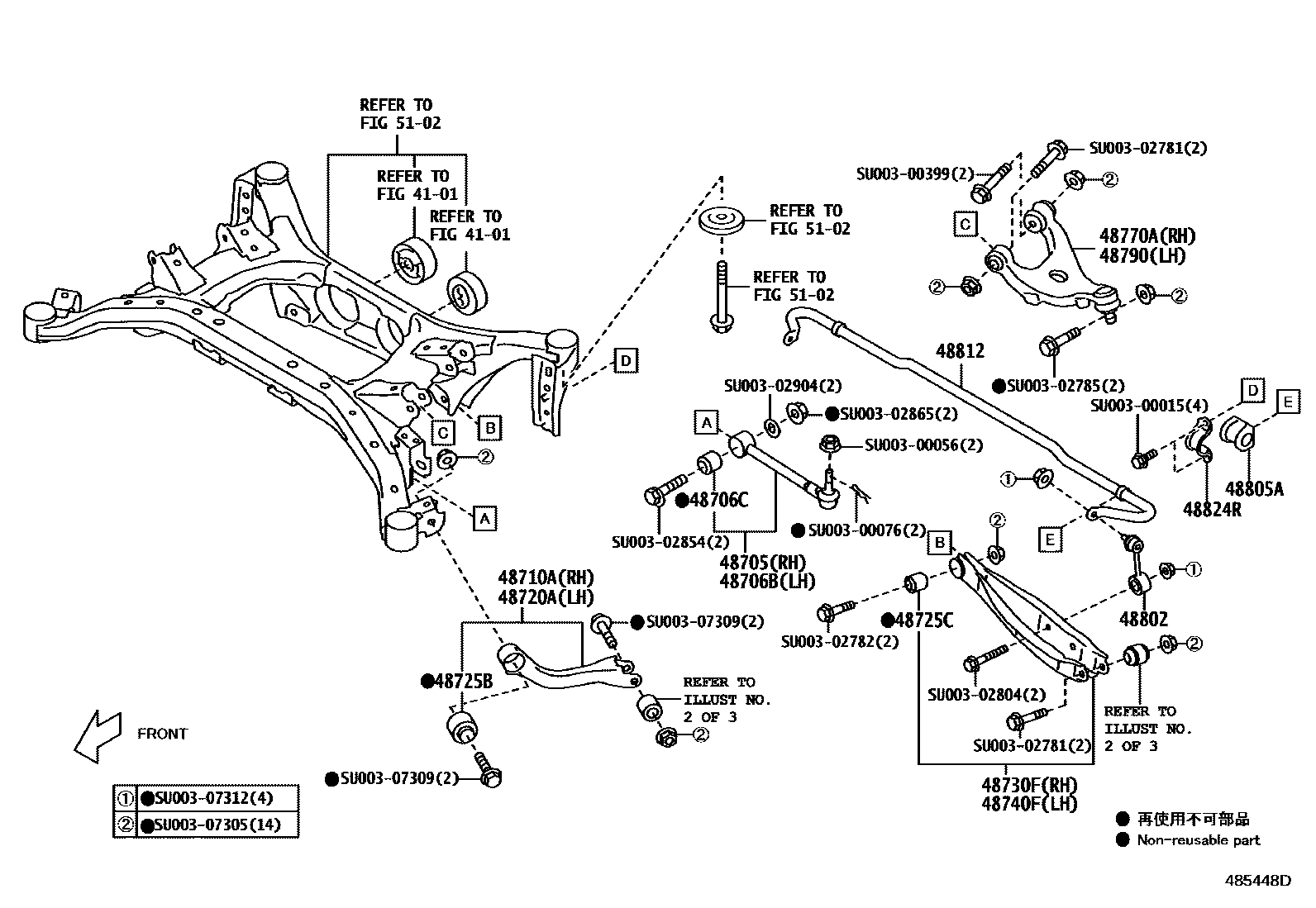

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

4101

48705LINK SUB-ASSY, TOE CONTROL, RH

mainSU00300362iZN8202110-202205

48706BLINK SUB-ASSY, TOE CONTROL, LH

mainSU00300362iZN8202110-202205

48706CBUSH SUB-ASSY, LATERAL CONTROL ROD

mainSU00300367×2iZN8202110-202205

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

mainSU00300360iZN8202110-202205

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

mainSU00300360iZN8202110-202205

48725BBUSH, REAR SUSPENSION ARM, NO.1

mainSU00300366×4iZN8202110-202205

48725CBUSH, REAR SUSPENSION ARM, NO.2

mainSU00300365×2iZN8..C202311

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

mainSU00308417iZN8202110-202205

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

mainSU00308417iZN8..D202407

48770AARM ASSY, UPPER CONTROL, REAR RH

mainSU00307492iZN8..D202407

48790ARM ASSY, UPPER CONTROL, REAR LH

mainSU00307493iZN8..D202407

48802LINK SUB-ASSY, STABILIZER

mainSU00300398×2iZN8..C202311

48805ABUSH(FOR REAR STABILIZER BAR)

mainSU00306462×2iZN8..B202205-202308

48812BAR, STABILIZER, REAR

mainSU00306461iZN8202110-202205

48824RBRACKET, STABILIZER(FOR REAR)

mainSU00300397×2iZN8..B202205-202308

5102

SU00300015

mainSU003-00015

SU00300056

mainSU003-00056

SU00300076

mainSU003-00076

SU00300399

mainSU003-00399

SU00302781

mainSU003-02781

SU00302782

mainSU003-02782

SU00302785

mainSU003-02785

SU00302804

mainSU003-02804

SU00302854

mainSU003-02854

SU00302865

mainSU003-02865

SU00302904

mainSU003-02904

SU00307305

mainSU003-07305

SU00307309

mainSU003-07309

SU00307312

mainSU003-07312

31 parts on this diagram · 3 diagrams in section
