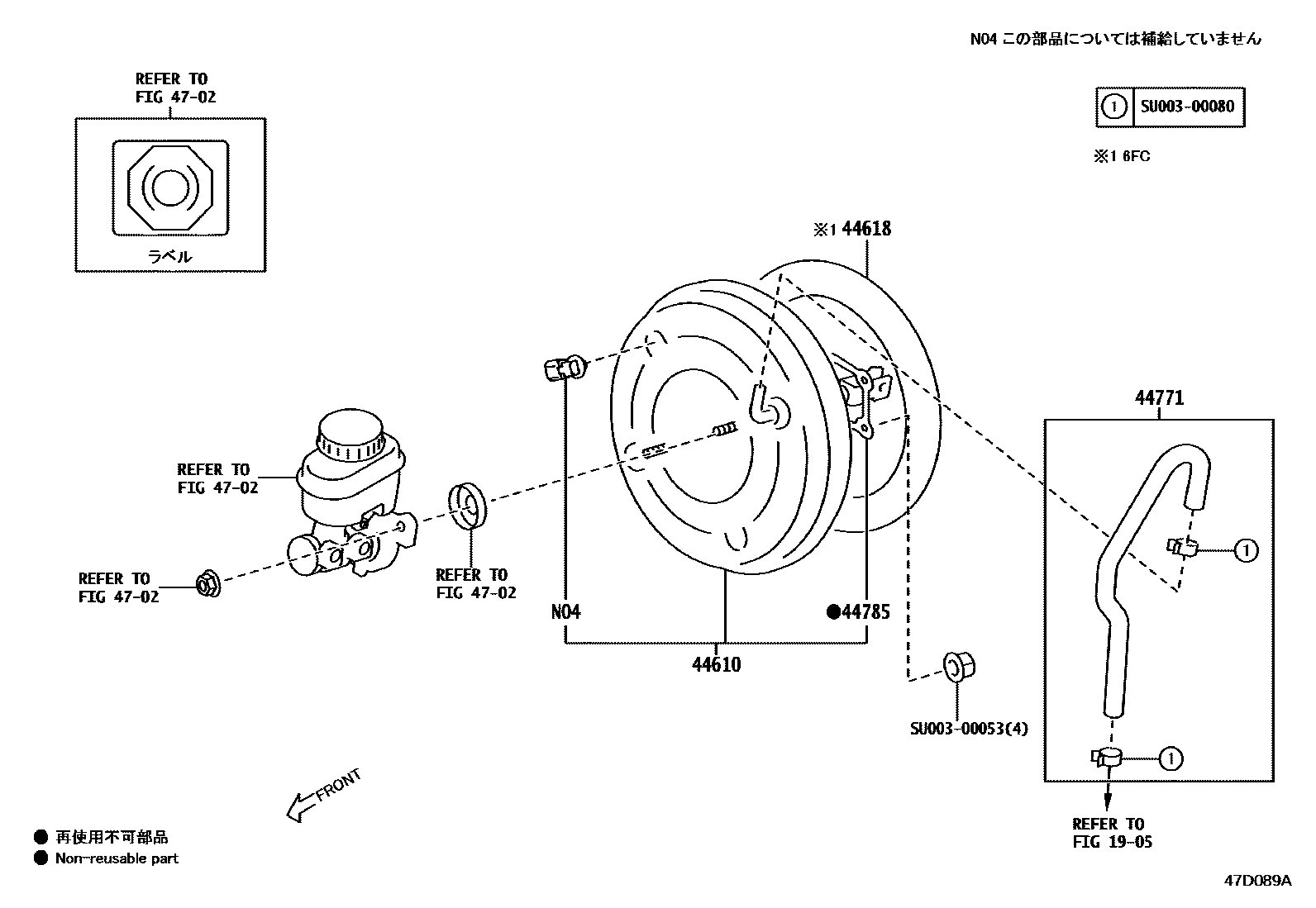

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

mainSU00308833iZN8202110-202205

mainSU00311613iZN8..C202401

44618SEAL, BOOSTER BODY

mainSU00308834iZN8..6FC202110-202205

44771HOSE, VACUUM TUBE CONNECTOR

mainSU00308830iZN8202110-202205

44785GASKET, BRAKE BOOSTER

mainSU00304545iZN8202110-202205

4702

SU00300053

mainSU003-00053

SU00300080

mainSU003-00080

8 parts on this diagram · 1 diagram in section
