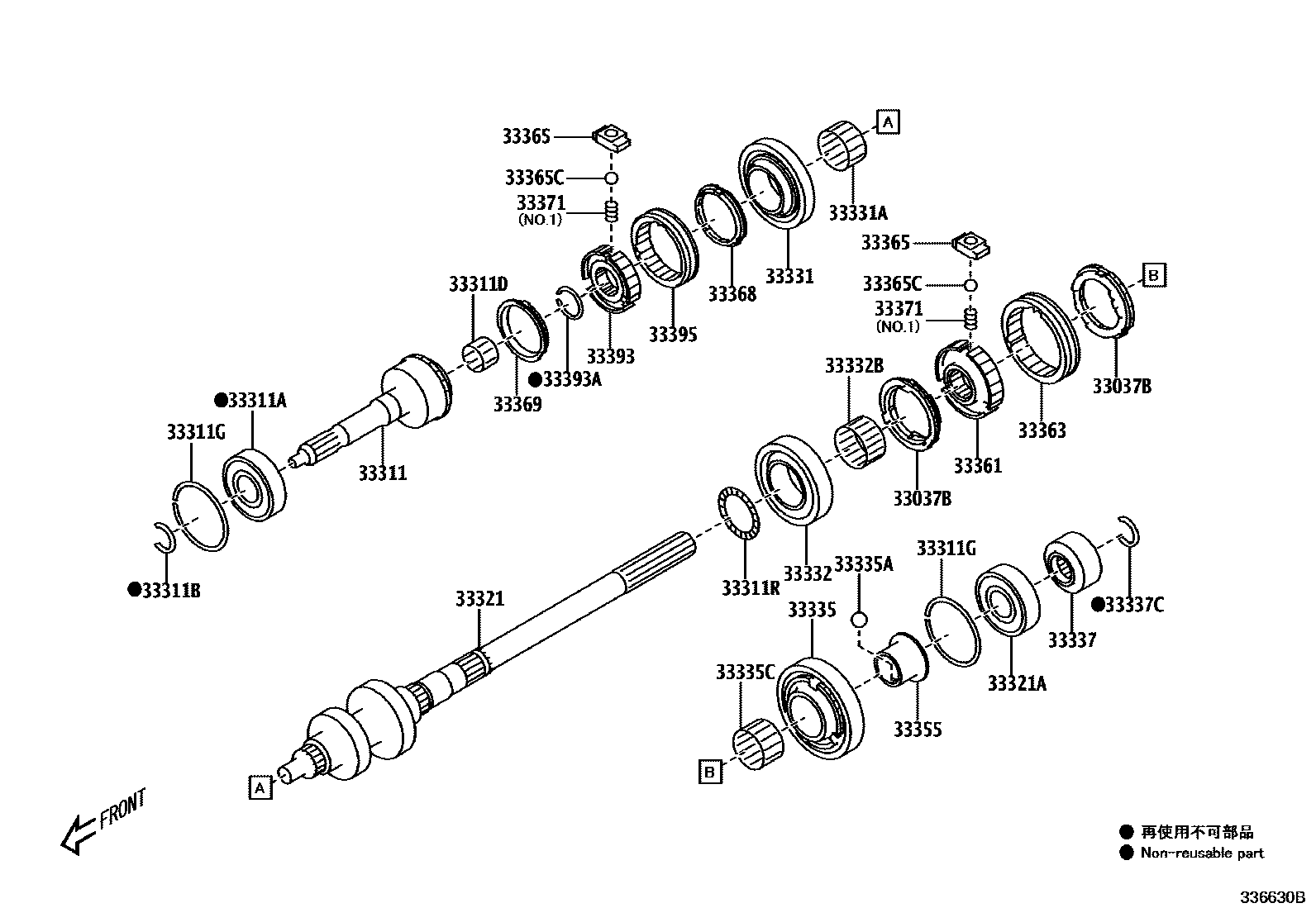

TRANSMISSION GEAR (MTM)

0001 1TL70 0002 1TL70

33037BRING SET, SYNCHRONIZER, NO.1

mainSU00303886iZN8..6F..B202110-202308

33311SHAFT, INPUT

mainSU00310756iZN8..6F202110-202308

33311ABEARING (FOR INPUT SHAFT FRONT)

mainSU00303527iZN8..6F202110-202308

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

mainSU00303575iZN8..6F..B202110-202308

mainSU00303576iZN8..6F..C202110-202308

mainSU00303577iZN8..6F..D202110-202308

mainSU00303578iZN8..6F..B202110-202308

mainSU00303579iZN8..6F..C202110-202308

mainSU00303580iZN8..6F..B202110-202308

mainSU00303927iZN8..6F..B202110-202308

33311DBEARING, INPUT SHAFT

mainSU00303522iZN8..6F202110-202308

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

mainSU00303588iZN8..6F202110-202308

33311RBEARING, NEEDLE ROLLER

mainSU00310738iZN8..6F..C202110-202308

33321SHAFT, OUTPUT

main33321-18020iZN8..6F202110-202205

mainSU00310757iZN8..6F..C202110-202308

33321ABEARING (FOR OUTPUT SHAFT REAR)

mainSU00303526iZN8..6F..B202110-202308

33331GEAR, REVERSE

mainSU00303913iZN8..6F..C202110-202308

33331ABEARING (FOR REVERSE GEAR)

mainSU00303523iZN8..6F202110-202308

33332GEAR, 2ND

main33033-18020iZN8..6F..(RC,RCG,RZ,SZ)..B202110-202205

mainSU00310758iZN8..6F..B202110-202308

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

mainSU00303520iZN8..6F202110-202308

33335GEAR, 1ST

main33032-18010iZN8..6F..C202110-202205

mainSU00303915iZN8..6F..C202110-202308

33335ABALL, 1ST SHIFT RESTRICT

mainSU00303908iZN8..6F..C202110-202308

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

mainSU00303519iZN8..6F202110-202308

33337GEAR SUB-ASSY, 6TH

mainSU00306378iZN8..6F202110-202308

33337CRING, SHAFT SNAP(FOR 6TH GEAR)

mainSU00303564iZN8..6F..B202110-202308

mainSU00303565iZN8..6F202110-202308

mainSU00303566iZN8..6F202110-202308

mainSU00303567iZN8..6F..B202110-202308

mainSU00303568iZN8..6F..C202110-202308

mainSU00303569iZN8..6F..C202110-202308

mainSU00303570iZN8..6F..B202110-202308

mainSU00303571iZN8..6F..C202110-202308

mainSU00303572iZN8..6F202110-202308

mainSU00303573iZN8..6F..B202110-202308

mainSU00303574iZN8..6F..B202110-202308

mainSU00303926iZN8..6F..C202110-202308

33355RACE, 1ST GEAR BEARING INNER

mainSU00303891iZN8..6F202110-202308

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-18010iZN8..6F..(RC,RCG,RZ,SZ)..B202110-202205

mainSU00310752iZN8..6F..D202110-202308

33363SLEEVE, TRANSMISSION HUB, NO.1

mainSU00303895iZN8..6F202110-202308

33365KEY, SYNCHROMESH SHIFTING, NO.1

mainSU00303897iZN8..6F..C202110-202308

33365CBALL(FOR SYNCHROMESH SHIFTING KEY)

mainSU00303907iZN8..6F..B202110-202308

33368RING, SYNCHRONIZER, NO.2

mainSU00303901iZN8..6F202110-202308

33369RING, SYNCHRONIZER, NO.3

mainSU00305824iZN8..6F202110-202308

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

mainSU00303902iZN8..6F..C202110-202308

mainSU00303903iZN8..6F202110-202308

33393HUB, TRANSMISSION CLUTCH, NO.3

mainSU00303904iZN8..6F202110-202308

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

mainSU00303581iZN8..6F..B202110-202308

mainSU00303582iZN8..6F..C202110-202308

mainSU00303583iZN8..6F..D202110-202308

mainSU00303584iZN8..6F..D202110-202308

mainSU00303585iZN8..6F..B202110-202308

mainSU00303586iZN8..6F202110-202308

mainSU00303928iZN8..6F..D202110-202308

33395SLEEVE, TRANSMISSION HUB, NO.3

mainSU00303905iZN8..6F..C202110-202308

29 parts on this diagram · 2 diagrams in section
