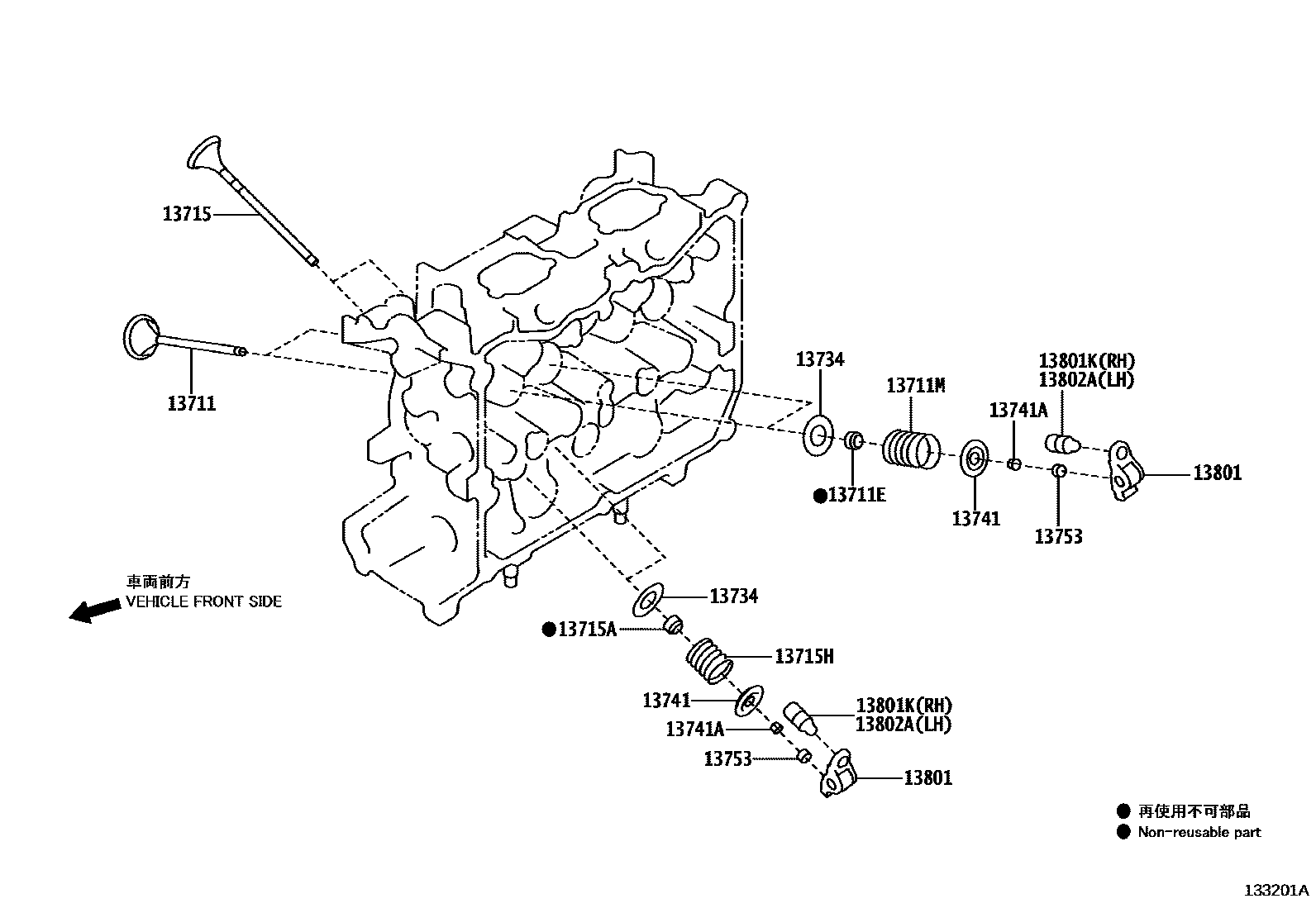

CAMSHAFT & VALVE
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801KPIVOT, ROCKER ARM RH
13802APIVOT, ROCKER ARM LH
13 parts on this diagram · 3 diagrams in section
