CRANKSHAFT & PISTON

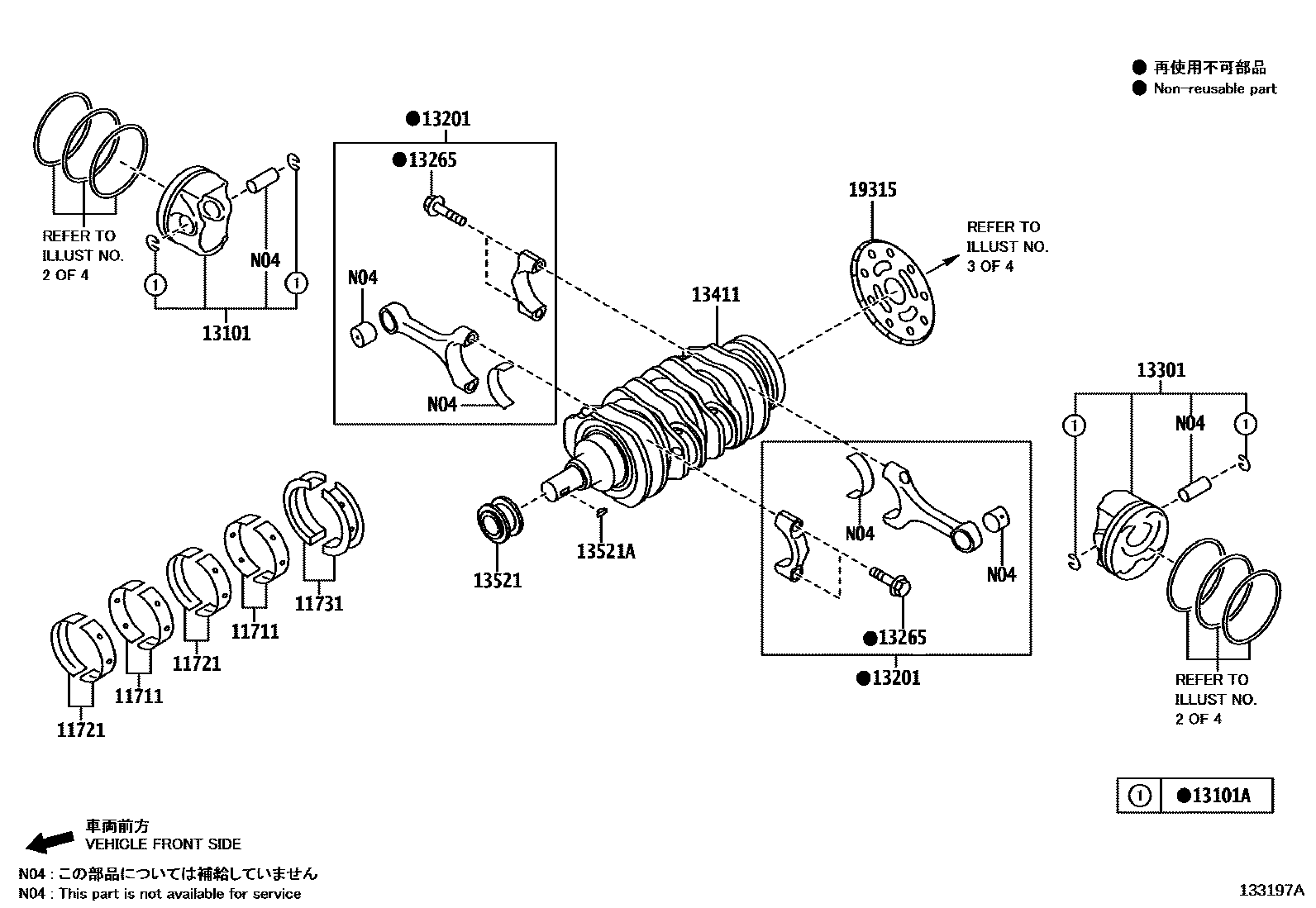

Parts diagram

11711BEARING, CRANKSHAFT

mainSU00308383×2i202407

mainSU00310640×2i202407

mainSU00310641×2i202205-202308

mainSU00310642×2i202205-202308

mainSU00310643×2i202311

11721BEARING, CRANKSHAFT, NO.2

mainSU00308387×2i202311

mainSU00310644×2i202205-202308

mainSU00310645×2i202205-202308

mainSU00310646×2i202110-202205

mainSU00310647×2i202407

11731BEARING, CRANKSHAFT, NO.3

mainSU00308391i202110-202205

mainSU00310648i202407

mainSU00310649i202311

mainSU00310650i202110-202205

mainSU00310651i202311

13101PISTON SUB-ASSY, W/PIN

mainSU00310608×2i202311

mainSU00310609×2i202205-202308

mainSU00310610×2i202311

mainSU00310611×2i202110-202205

13101ARING, HOLE SNAP(FOR PISTON PIN)

mainSU00308475×8i202110-202205

13201ROD SUB-ASSY, CONNECTING

mainSU00310634×4i202110-202205

mainSU00310635×4i202205-202308

mainSU00310636×4i202110-202205

13265BOLT, CONNECTING ROD

mainSU00308999×8i202205-202308

13301PISTON SUB-ASSY, W/PIN, LH

mainSU00310612×2i202311

mainSU00310613×2i202407

mainSU00310614×2i202311

mainSU00310615×2i202110-202205

13411CRANKSHAFT

mainSU00309000i202110-202205

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

mainSU00300179i202110-202205

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

mainSU00302169i202110-202205

19315PLATE, CRANK ANGLE SENSOR, NO.1

mainSU00309001i202110-202205

12 parts on this diagram · 4 diagrams in section
