HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������(���) 0002 1���������(�����) 0003 1������(�����) 0004 1������(�����) 0005 1���

5501

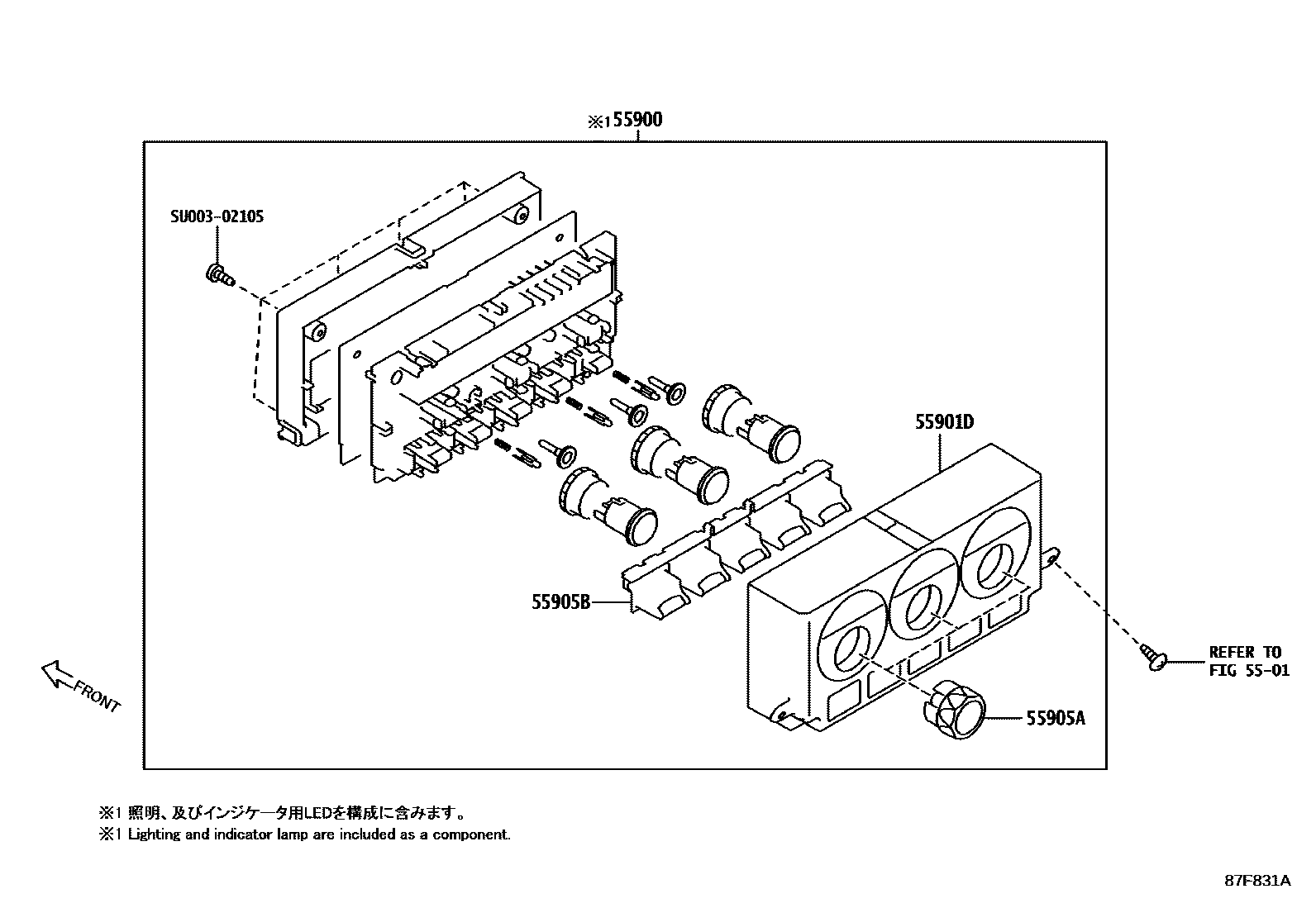

55900CONTROL ASSY, AIR CONDITIONER

mainSU00307223iZN6..GT,LHP,LIMD,SOLI201608-201904

mainSU00308108iZN6..GR,GRS,GT,GTBGL,GTBL,LBP,LIMD201904-202104

55901BASE SUB-ASSY, HEATER CONTROL

mainSU00302093iZN6..G,RCG201608-202104

55901DCONTROL SUB-ASSY, HEATER, NO.1

mainSU00302096iZN6..GT,LHP,LIMD,SOLI201608-202104

55905AKNOB, HEATER CONTROL

mainSU00305870iZN6..GT,LHP,LIMD,SOLI201608-202104

55905BKNOB, HEATER CONTROL, NO.2

mainSU00305871iZN6..GT,LHP,LIMD,SOLI201608-202104

SU00302105

mainSU003-02105

7 parts on this diagram · 5 diagrams in section
