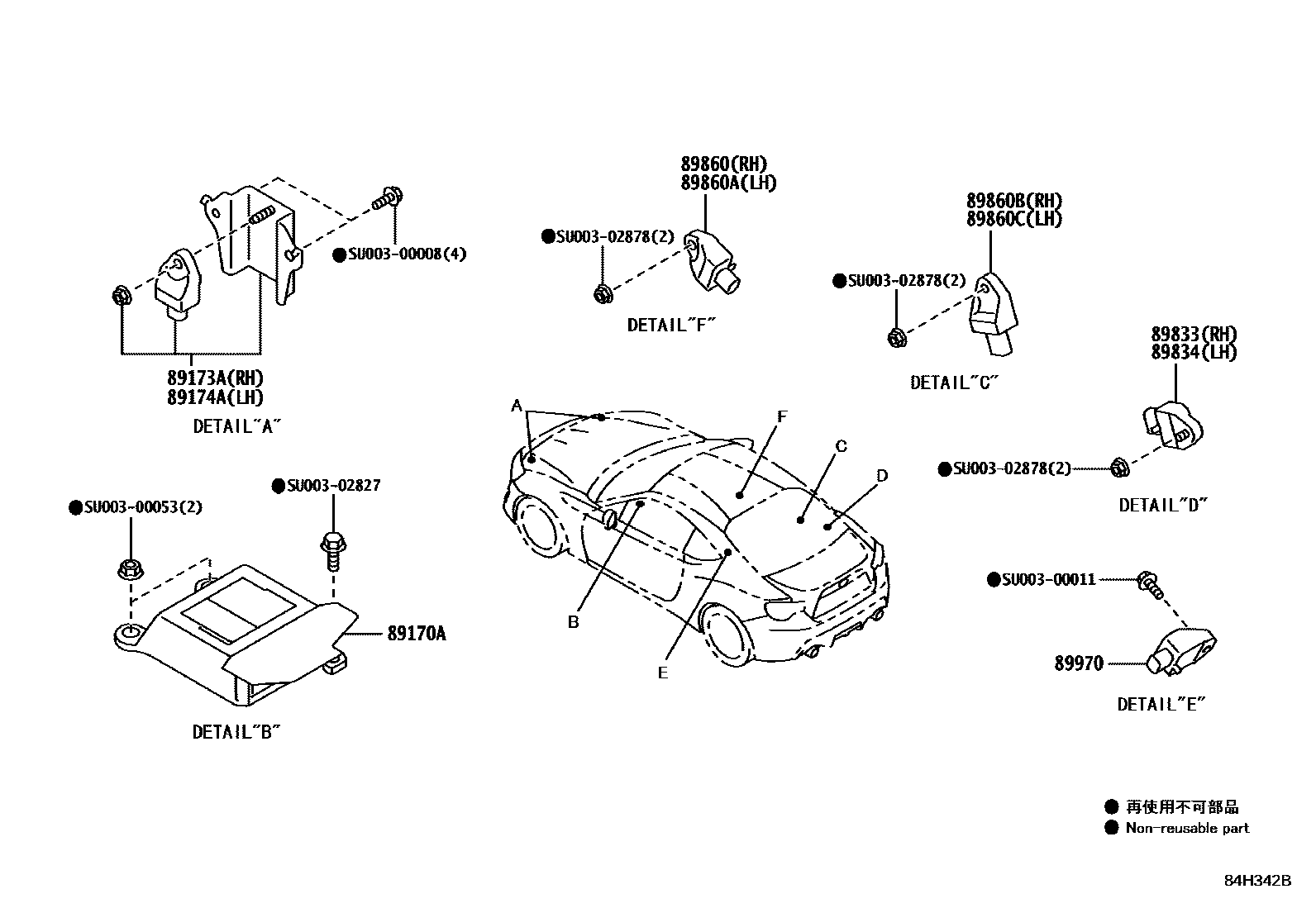

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
89970SENSOR ASSY, AIRBAG, NO.2
SU00300008
mainSU003-00008
SU00300011
mainSU003-00011
SU00300053
mainSU003-00053
SU00302827
mainSU003-02827
SU00302878
mainSU003-02878
15 parts on this diagram · 1 diagram in section
