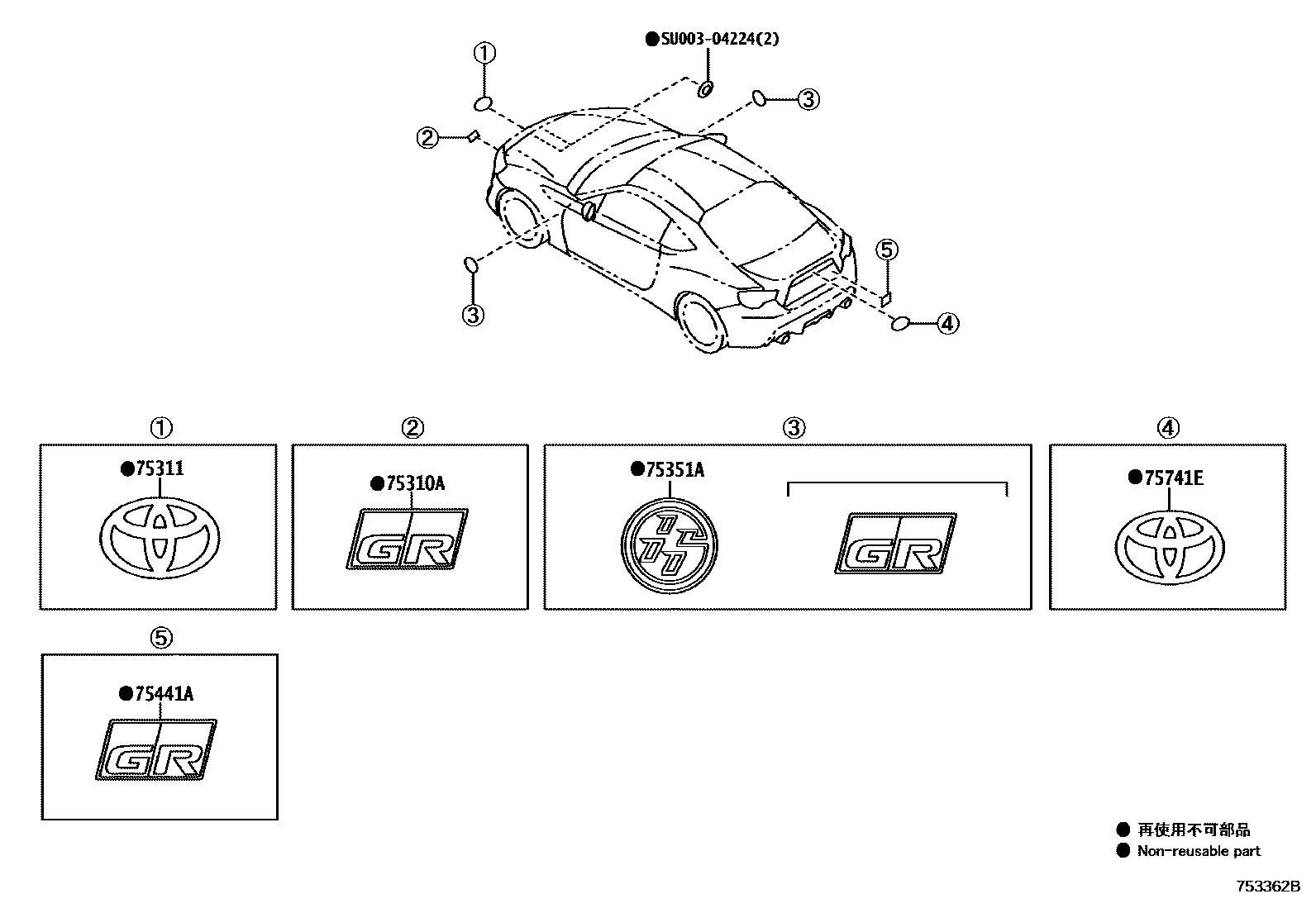

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main75310-18010iZN6..GR..F201712

main75310-18020iZN6..GRS201806

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02140iZN6..GR201712

mainSU00306694iZN6..G,GT,GTBGL,GTBL,LBP,LIMD,RCG201608-202104

75351AEMBLEM, FRONT FENDER

main75374-18010iZN6..GR..F201712

main75374-18020iZN6..GR..F201712

main75374-18030iZN6..GRS201806

main75374-18040iZN6..GRS201806

mainSU00307083iZN6..G,GT,GTBGL,GTBL,LBP,LIMD,RCG201608-202104

mainSU00307084iZN6..G,GT,GTBGL,GTBL,LBP,LIMD,RCG201608-202104

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75430-18010iZN6..GR..F201712

main75430-18020iZN6..GRS201806

75741EEMBLEM, SYMBOL

main90975-02094iZN6..GR..F201712

mainSU00306697iZN6201608-202104

SU00304224

mainSU003-04224

6 parts on this diagram · 1 diagram in section
