ROOF PANEL & BACK WINDOW GLASS

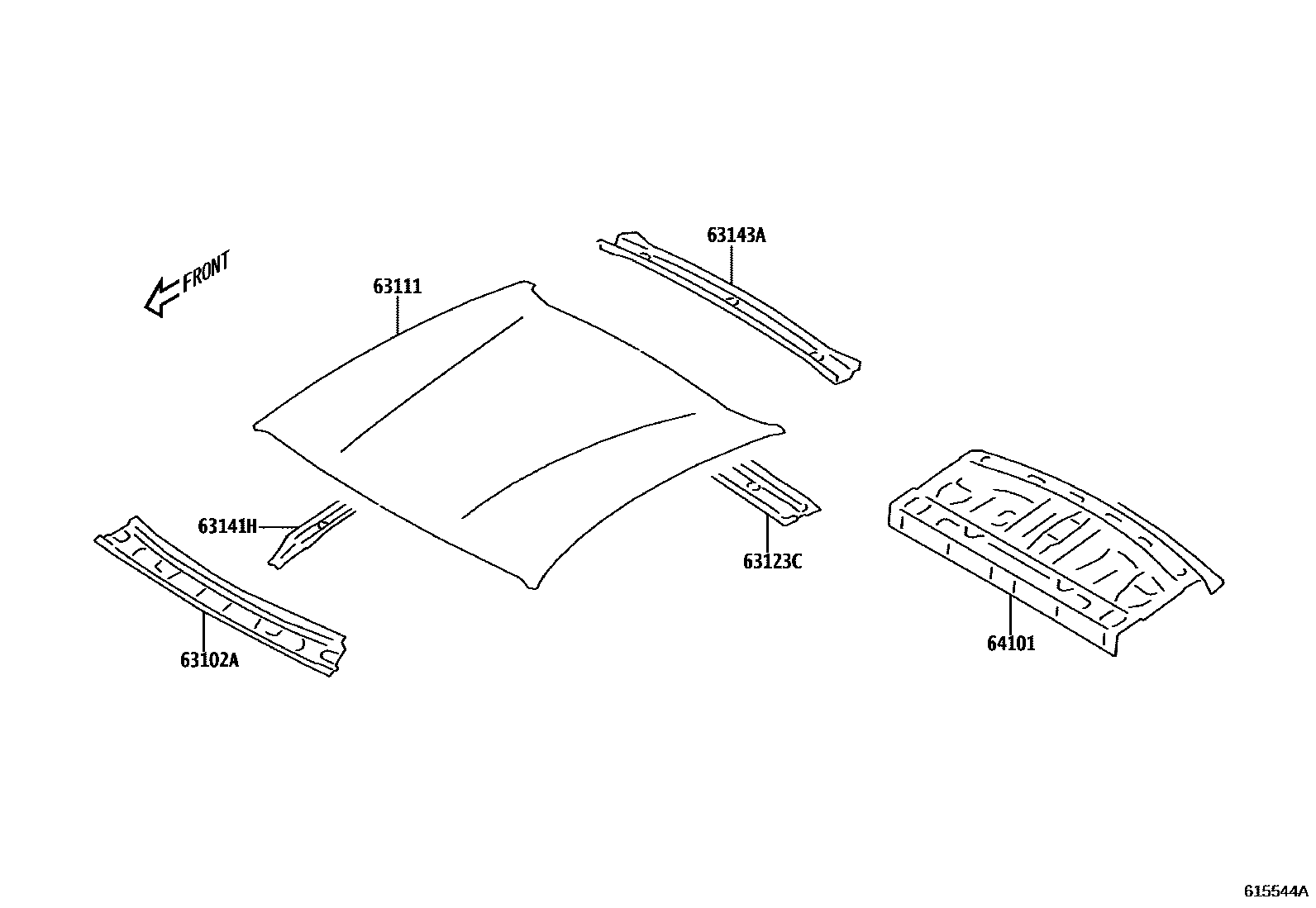

Parts diagram

63102APANEL SUB-ASSY, WINDSHIELD HEADER

mainSU00301374i201608-202104

63111PANEL, ROOF

mainSU00301376i201608-202104

63123CREINFORCEMENT, ROOF PANEL

mainSU00301378i201608-202104

63141HREINFORCEMENT, ROOF PANEL, CENTER

mainSU00301377i201608-202104

63143AREINFORCEMENT, ROOF PANEL

mainSU00301375i201608-202104

64101PANEL SUB-ASSY, UPPER BACK

mainSU00307172i201608-202104

6 parts on this diagram · 2 diagrams in section
