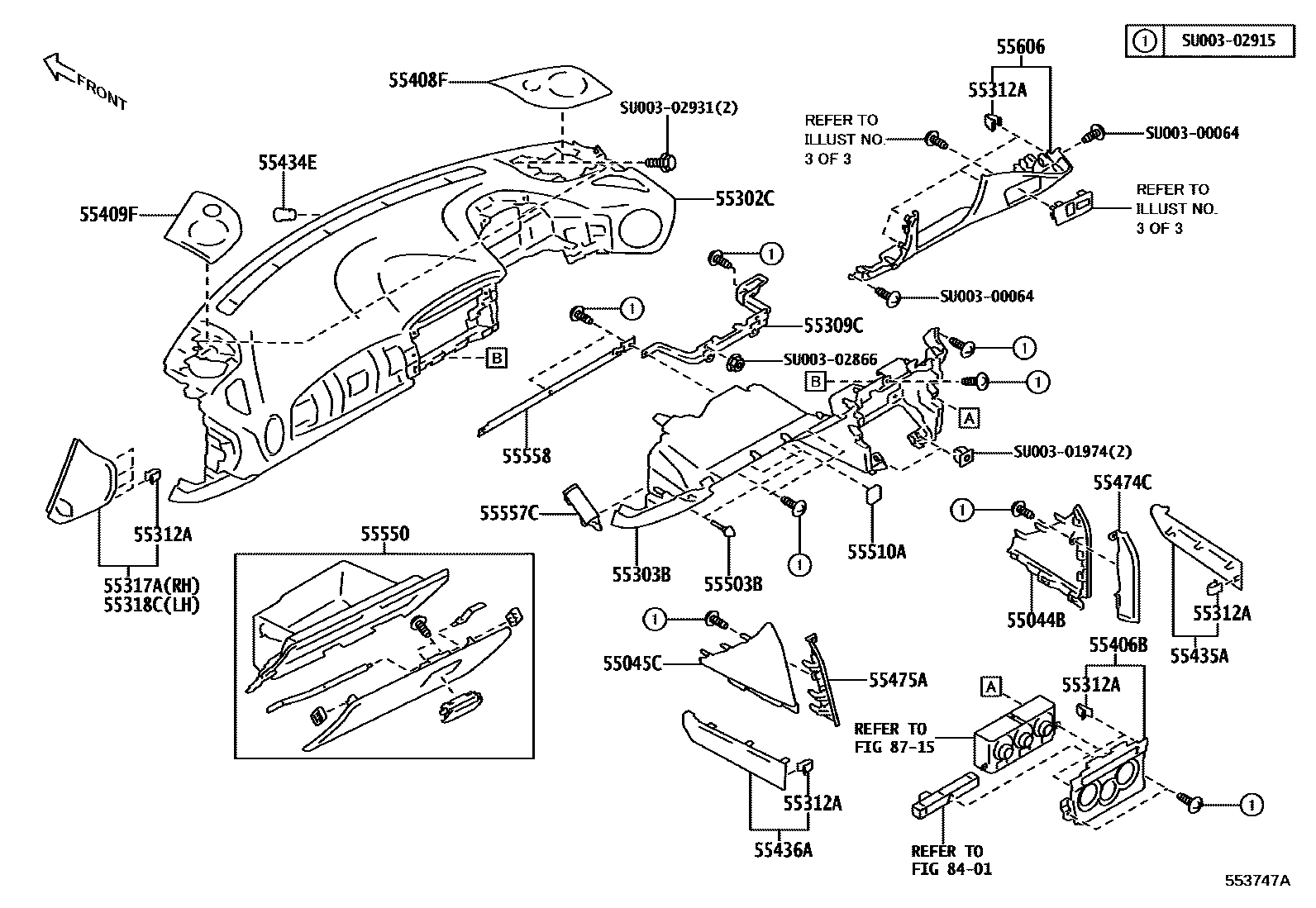

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

mainSU00301917iZN6..(G,RCG)..F201608-202104

mainSU00301919iZN6..GT..F201608-202104

TRIM3#

mainSU00306609iZN6..LHP,LIMD201608-202104

TRIM3#

mainSU00306611iZN6..LHP,LIMD201608-202104

TRIM2#

mainSU00306613iZN6..LHP,LIMD201608-202104

TRIM4#

mainSU00307093iZN6..GT..F201608-202104

TRIM2#

mainSU00307418iZN6..SOLI201608-201709

mainSU00308151iZN6..GTBGL201904-202104

55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

mainSU00301918iZN6..G,RCG201608-202104

mainSU00301920iZN6..GT201608-202104

TRIM3#

mainSU00306610iZN6..(LBP,LIMD)..F201608-202104

TRIM3#

mainSU00306612iZN6..LHP,LIMD201608-202104

TRIM2#

mainSU00306614iZN6..(LBP,LIMD)..F201608-202104

TRIM4#

mainSU00307094iZN6..GT201608-202104

TRIM2#

mainSU00307419iZN6..SOLI201608-201709

mainSU00308152iZN6..GTBGL201904-202104

55302CPANEL SUB-ASSY, INSTRUMENT

mainSU00307340iZN6201608-201911

subSU003-08334

mainSU00308334iZN6201911-202104

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

mainSU00301907iZN6201608-202104

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

mainSU00301966iZN6201608-202104

55312ACLIP, INSTRUMENT PANEL

mainSU00302967iZN6201608-202104

55317APANEL, INSTRUMENT SIDE, RH

mainSU00301923iZN6201608-202104

55318CPANEL, INSTRUMENT SIDE, LH

mainSU00301925iZN6201608-202104

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

mainSU00301913iZN6..G,RCG201608-202104

mainSU00306608iZN6..GT,LHP,LIMD,SOLI201608-202104

mainSU00308362iZN6..GTBL201904-202104

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

mainSU00301951iZN6201608-202104

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

mainSU00301952iZN6201608-202104

55434ECAP

mainSU00302961iZN6201608-202104

55435APANEL, INSTRUMENT PANEL FINISH, END RH

mainSU00301970iZN6201608-202104

55436APANEL, INSTRUMENT PANEL FINISH, END LH

mainSU00301971iZN6..F201608-202104

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

mainSU00301927iZN6..(G,RCG)..F201608-202104

mainSU00305936iZN6..GT,LBP,LIMD201608-202104

mainSU00306131iZN6..SOLI201608-202104

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

mainSU00301928iZN6..G,RCG201608-202104

mainSU00305937iZN6..GT,LBP,LIMD201608-202104

mainSU00306132iZN6..GR201608-202104

55503BCUSHION(FOR GLOVE COMPARTMENT)

mainSU00301956iZN6201608-202104

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

mainSU00304310iZN6201608-202104

55550DOOR ASSY, GLOVE COMPARTMENT

mainSU00301953iZN6201608-202104

55557CDAMPER, GLOVE COMPARTMENT DOOR

mainSU00301972iZN6201608-202104

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

mainSU00301964iZN6201608-202104

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

mainSU00301980iZN6201608-202104

8401

8715

SU00300064

mainSU003-00064

SU00301974

mainSU003-01974

SU00302866

mainSU003-02866

SU00302915

mainSU003-02915

SU00302931

mainSU003-02931

29 parts on this diagram · 4 diagrams in section
