FLOOR SIDE MEMBER

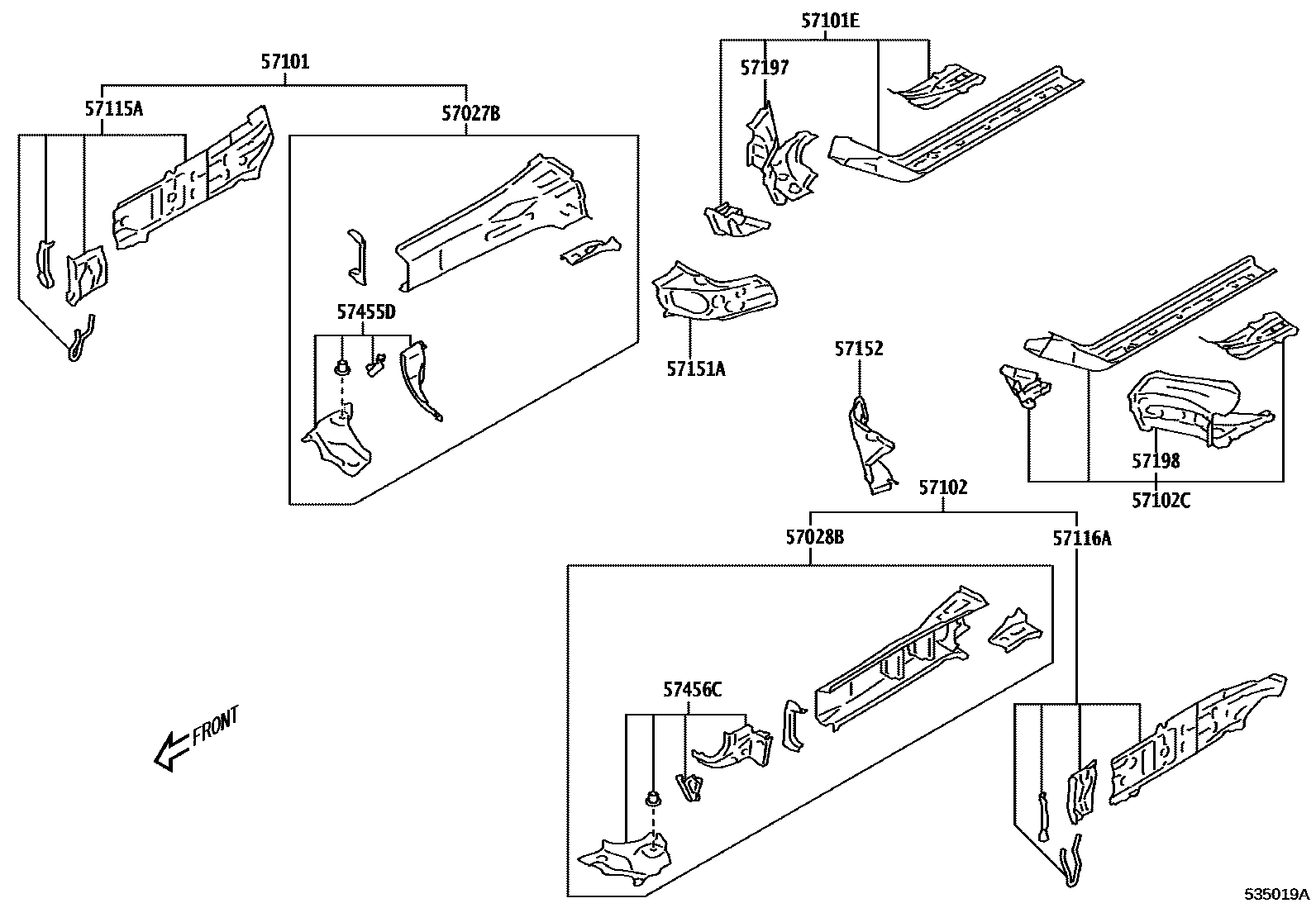

Parts diagram

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

mainSU00301297i201608-202104

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

mainSU00301298i201608-202104

57101MEMBER SUB-ASSY, FRONT SIDE, RH

mainSU00305220i201608-202104

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

mainSU00305222i201608-202104

57102MEMBER SUB-ASSY, FRONT SIDE, LH

mainSU00305221i201608-202104

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

mainSU00305223i201608-202104

57115APLATE, FRONT SIDE MEMBER, OUTER RH

mainSU00305218i201608-202104

57116APLATE, FRONT SIDE MEMBER, OUTER LH

mainSU00305219i201608-202104

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

mainSU00301304i201608-202104

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

mainSU00301305i201608-202104

57197BOX, TORQUE, FRONT RH

mainSU00305224i201608-202104

57198BOX, TORQUE, FRONT LH

mainSU00305225i201608-202104

57455DGUSSET, FRONT FLOOR CROSSMEMBER, RH

mainSU00301302i201608-202104

57456CGUSSET, FRONT FLOOR CROSSMEMBER, LH

mainSU00301303i201608-202104

14 parts on this diagram · 2 diagrams in section
