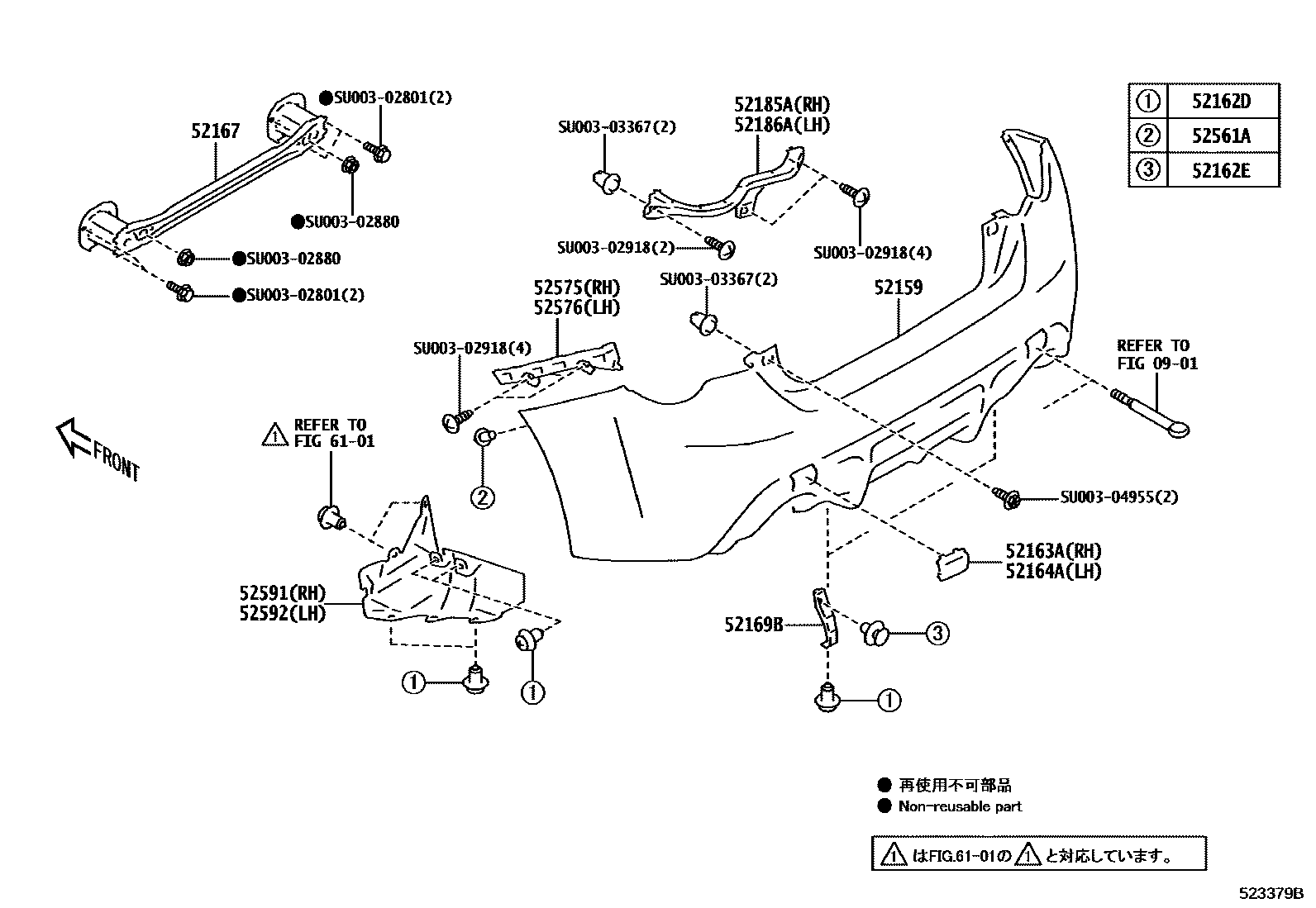

REAR BUMPER & BUMPER STAY

0001 1 0002 1

0901

52159COVER, REAR BUMPER

main52159-18040iZN6..GR201712

mainSU00306829iZN6..G,GT,LHP,LIMD,RCG201608-201904

DARK GRAY METALLIC,61K

mainSU00306830iZN6..G,GT,LBP,LIMD,RCG201608-202104

LAPIS BLUE PEARL,K3X

mainSU00306831iZN6..G,GT,LHP,LIMD,RCG201608-201709

ORANGE METALLIC,H8R

subSU003-06836

mainSU00306832iZN6..G,GT,LBP,LIMD,RCG201608-202104

ICE SILVER METALLIC,G1U

mainSU00306833iZN6..G,GT,LHP,LIMD,RCG201608-202104

PURE RED,M7Y

mainSU00306834iZN6..G,GRS,GT,LIMD,RCG201608-202104

CRYSTAL BLACK SILICA,D4S

mainSU00306835iZN6..G,GT,LHP,LIMD,RCG201608-202104

CRYSTAL WHITE PEARL,K1X

mainSU00307382iZN6..SOLI201608-201709

SOLAR ORANGE,NBB

subSU003-06836

mainSU00307674iZN6..(G,GT,LBP,LIMD,RCG)..F201709-201804

SOLID GRAY,PBA

mainSU00307853iZN6..G,GT,LBP,LIMD,RCG201805-202104

BRIGHT BLUE,DAR

mainSU00308102iZN6..G,GT,LBP,LIMD,RCG201904-202104

MAGNETITE GRAY M,P8Y

mainSU00308103iZN6..GTBGL201904-202104

BRITISH RACING GREEN

52162DPIECE, REAR BUMPER

mainSU00302984iZN6201608-202104

52162EPIECE, REAR BUMPER

mainSU00302989iZN6201608-202104

52163APLATE, REAR BUMPER, RH

main52161-18030iZN6..GR..F201712

mainSU00306854iZN6201608-202104

52164APLATE, REAR BUMPER, LH

main52162-18030iZN6..GR201712

mainSU00306855iZN6..G,GRS,GT,LBP,LIMD,RCG201608-202104

52167REINFORCEMENT, REAR BUMPER

mainSU00301510iZN6..F201608-202008

subSU003-08594

mainSU00308594iZN6202008-202104

52169BBRACKET, REAR BUMPER, CENTER

mainSU00306839iZN6201608-202104

52185ABRACKET, REAR BUMPER SIDE, RH

mainSU00301501iZN6201608-202104

52186ABRACKET, REAR BUMPER SIDE, LH

mainSU00301502iZN6201608-202104

52561ACLIP(FOR REAR BUMPER RETAINER)

mainSU00302988iZN6201608-202104

52575RETAINER, REAR BUMPER SIDE, RH

mainSU00301503iZN6201608-201903

subSU003-08223

mainSU00308223iZN6201903-202104

52576RETAINER, REAR BUMPER SIDE, LH

mainSU00301504iZN6201608-201903

subSU003-08224

mainSU00308224iZN6201903-202104

52591SEAL, REAR BUMPER SIDE, RH

mainSU00306126iZN6201608-202104

52592SEAL, REAR BUMPER SIDE, LH

mainSU00306127iZN6201608-202104

6101

SU00302801

mainSU003-02801

SU00302880

mainSU003-02880

SU00302918

mainSU003-02918

SU00303367

mainSU003-03367

SU00304955

mainSU003-04955

21 parts on this diagram · 2 diagrams in section
