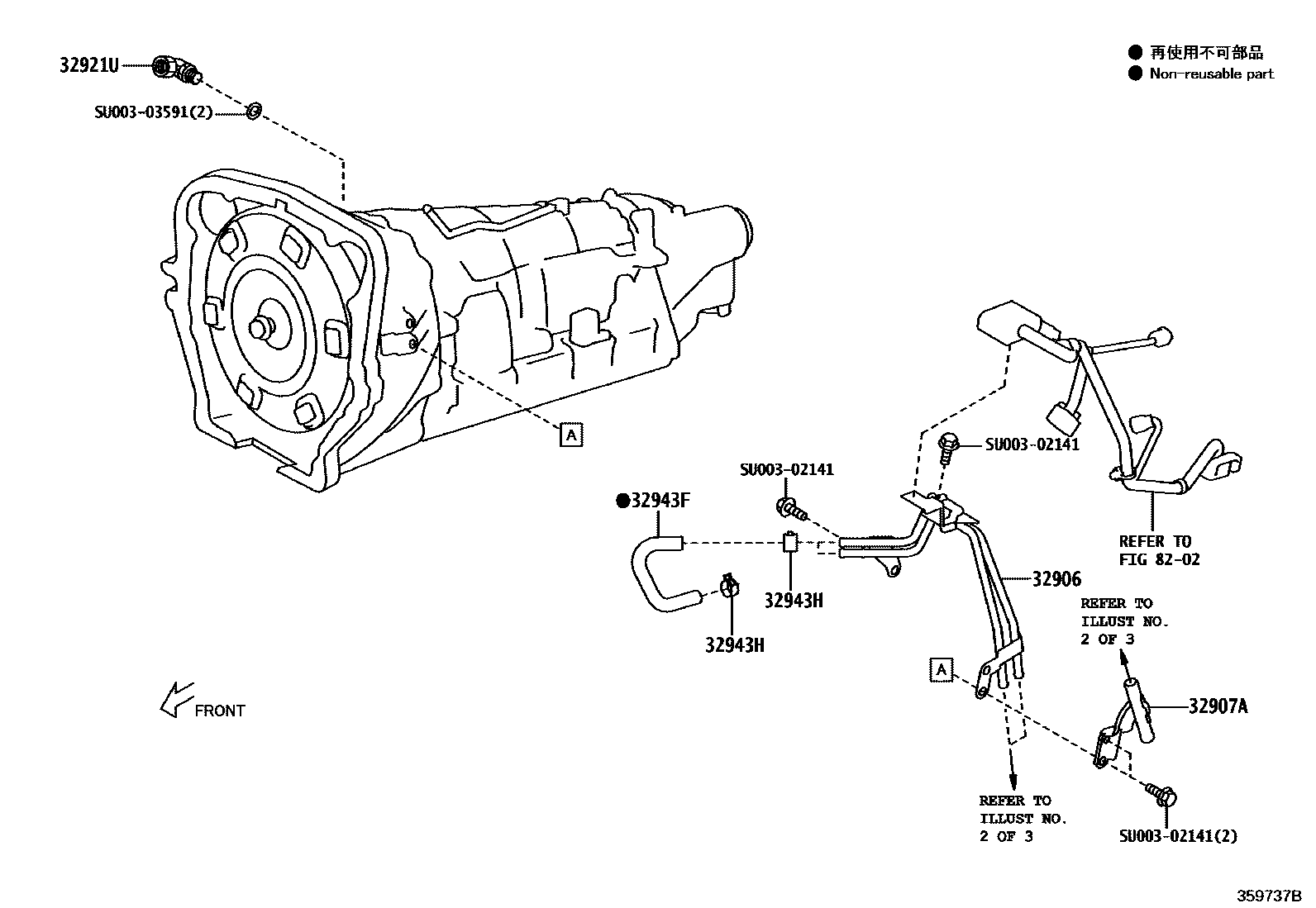

OIL COOLER & TUBE (ATM)

0001 1TX6A 0002 1TX6A

32906TUBE SUB-ASSY, OIL COOLER

mainSU00300410iZN6..6FC201608-202104

32907ATUBE, OIL COOLER

mainSU00300411iZN6..6FC201608-202104

32921UELBOW(FOR OIL COOLER TUBE)

mainSU00303839iZN6..6FC201608-202104

32943HOSE, TRANSMISSION OIL COOLER, NO.1

mainSU00303436iZN6..6FC201608-201709

subSU003-07965

mainSU00307965iZN6..6FC..F201709-202104

32943FHOSE, TRANSMISSION OIL COOLER, NO.5

mainSU00303439iZN6..6FC201608-202104

32943HCLIP, NO.4(FOR OIL COOLER HOSE)

mainSU00302994iZN6..6FC201608-202104

8202

SU00302141

mainSU003-02141

SU00303591

mainSU003-03591

9 parts on this diagram · 2 diagrams in section
