HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������(���) 0002 1���������(�����) 0003 1������(�����) 0004 1������(�����) 0005 1���

5501

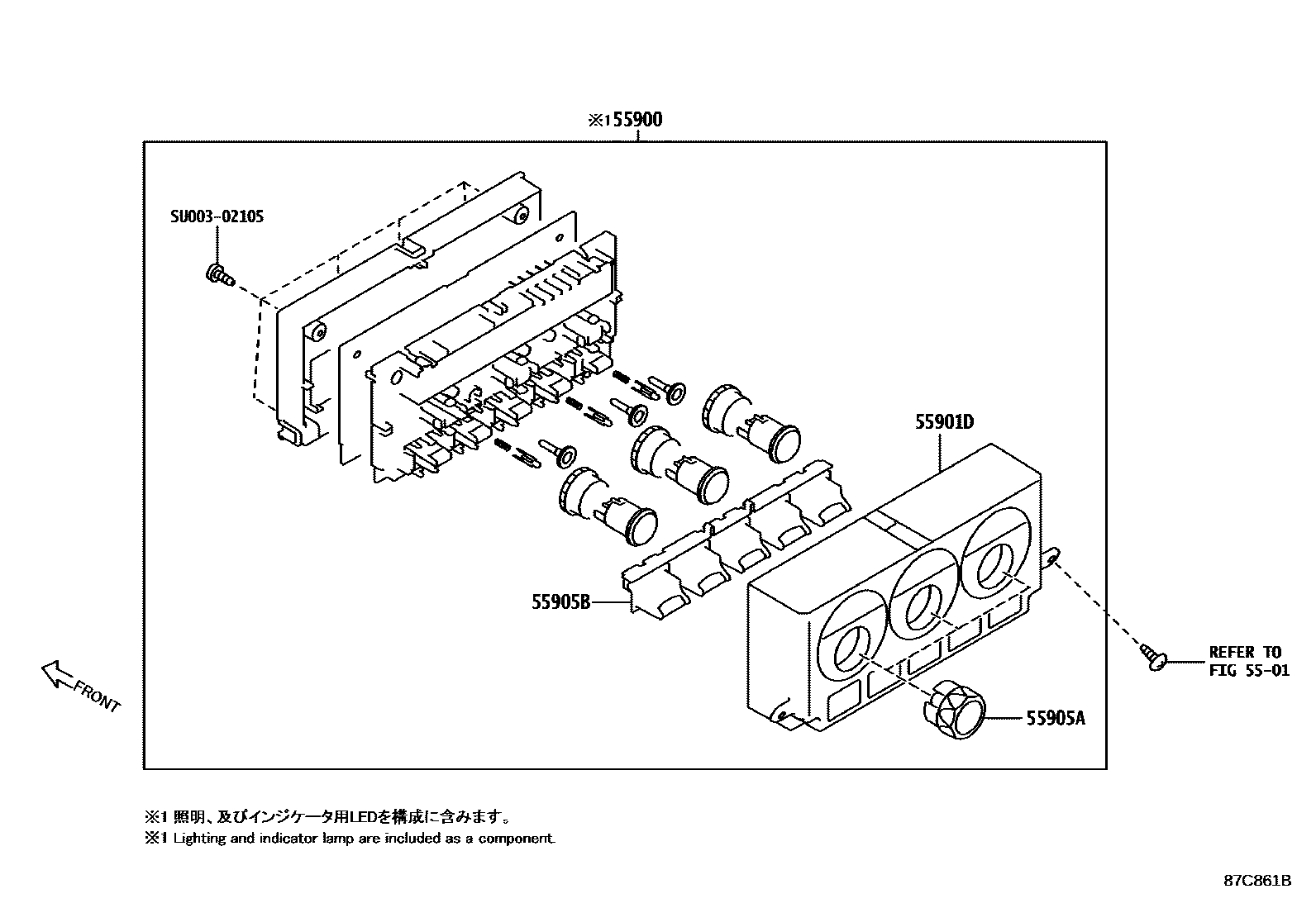

55900CONTROL ASSY, AIR CONDITIONER

mainSU00302091iZN6..GT201203-201207

mainSU00304548iZN6..GT201207-201307

mainSU00304692iZN6..GT201307-201308

subSU003-07221

mainSU00305869iZN6..CB,GT,LIMD,TRDGT,YEL,YLA201504-201604

mainSU00307223iZN6..CB,GT,GTAE,LIMD,TRDGT,YEL,YLA201604-201607

55901BASE SUB-ASSY, HEATER CONTROL

mainSU00302093iZN6..G,RC,RCG201203-201308

55901DCONTROL SUB-ASSY, HEATER, NO.1

mainSU00302096iZN6..GT..C201405-201503

55905AKNOB, HEATER CONTROL

mainSU00302097×3iZN6..GT201203-201308

mainSU00305870×3iZN6..CB,GT,GTAE,LIMD,TRDGT,YEL,YLA201504-201607

55905BKNOB, HEATER CONTROL, NO.2

mainSU00302103iZN6..GT201203-201308

mainSU00305871iZN6..CB,GT,GTAE,LIMD,TRDGT,YEL,YLA201504-201607

SU00302105

mainSU003-02105

7 parts on this diagram · 5 diagrams in section
