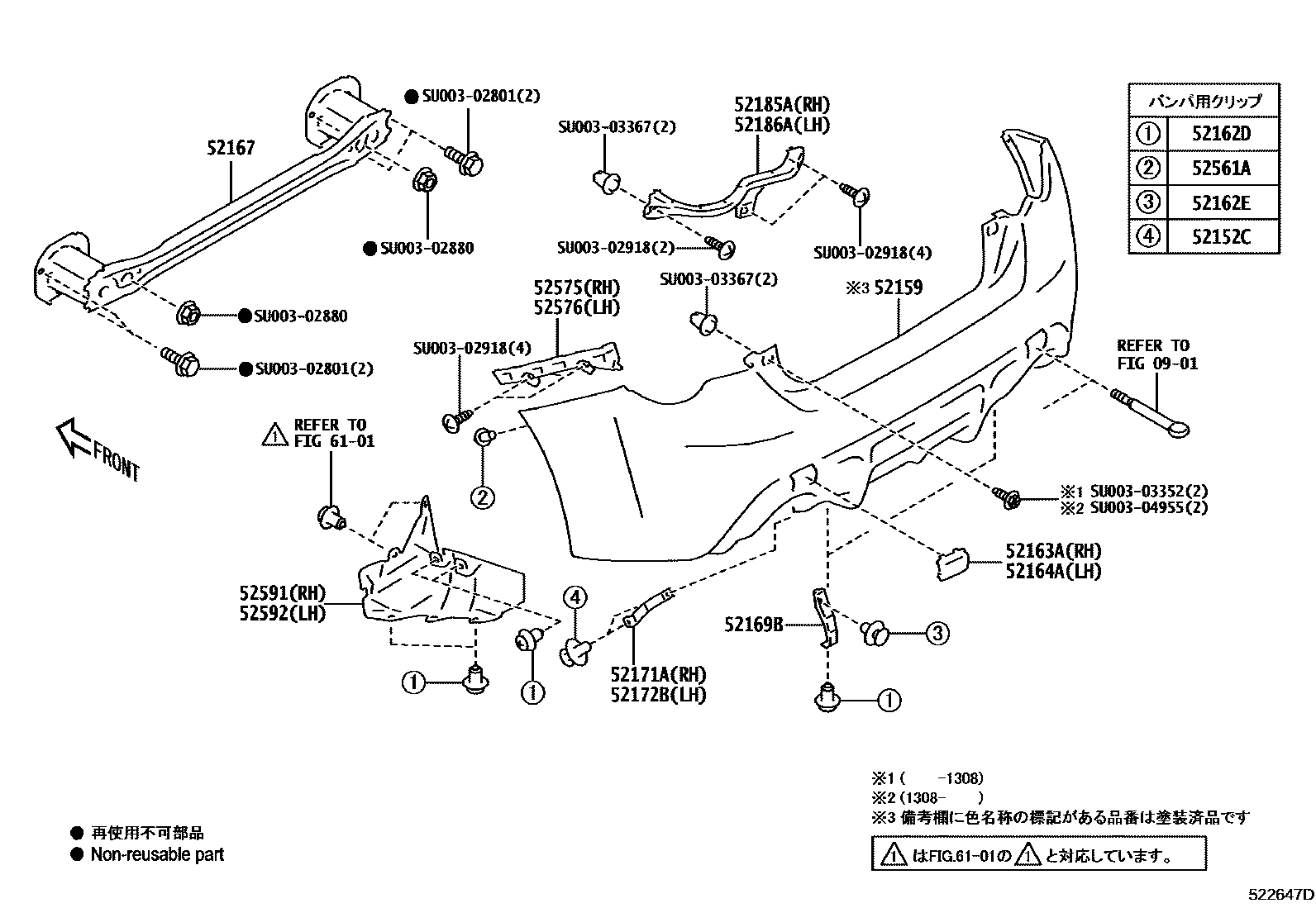

REAR BUMPER & BUMPER STAY

0901

52152CCLIP, REAR BUMPER SIDE

mainSU00302963iZN6201203-201607

52159COVER, REAR BUMPER

mainSU00301487iZN6..(G,GT,RCG)..C201203-201503

GALAXY BLUE SILICA,E8H

subSU003-07888

subSU003-07915

mainSU00301488iZN6..G,GT,RCG201203-201607

DARK GRAY METALLIC,61K

subSU003-07870

subSU003-07916

mainSU00301489iZN6..G,GT,LIMD,RCG,TRDGT201203-201607

ORANGE METALLIC,H8R

subSU003-07890

subSU003-07919

mainSU00301490iZN6..(G,GT,RCG)..C201203-201503

LIGHTNING RED,C7P

subSU003-07892

subSU003-07922

mainSU00301491iZN6..(G,GT,RCG)..B201203-201405

STERLING SILVER M,D6S

subSU003-07893

subSU003-07923

mainSU00301492iZN6..CB,G,GT,LIMD,RCG,TRDGT201203-201607

CRYSTAL BLACK SILICA,D4S

subSU003-07874

subSU003-07926

mainSU00301493iZN6..(G,GT,RCG)..B201203-201405

SATIN WHITE PEARL,37J

subSU003-07895

subSU003-07927

mainSU00304306iZN6..(RC,TRDRC)..C201405-201503

subSU003-07894

subSU003-07921

mainSU00304306iZN6..RC..B201203-201405

subSU003-07894

subSU003-07921

mainSU00305286iZN6..CB,G,GT,LIMD,RCG,TRDGT201405-201607

ICE SILVER METALLIC,G1U

subSU003-07872

subSU003-07924

mainSU00305287iZN6..(G,GT,RCG)..C201405-201607

CRYSTAL WHITE PEARL,K1X

subSU003-07875

subSU003-07928

mainSU00305911iZN6..G,GT,LIMD,RCG,TRDGT201504-201607

LAPIS BLUE PEARL,K3X

subSU003-07871

subSU003-07917

mainSU00305912iZN6..CB,G,GT,LIMD,RCG,TRDGT201504-201607

PURE RED,M7Y

subSU003-07873

subSU003-07925

mainSU00306172iZN6..YEL201504-201607

SUNRISE YELLOW,C2Z

subSU003-07889

subSU003-07918

mainSU00307085iZN6..GTAE201511-201607

DARK GRAY METALLIC,61K

subSU003-07880

mainSU00307086iZN6..GTAE201511-201607

LAPIS BLUE PEARL,K3X

subSU003-07881

mainSU00307087iZN6..YLA201511-201607

SUNRISE YELLOW,C2Z

subSU003-06175

mainSU00307088iZN6..GTAE201511-201607

ORANGE METALLIC,H8R

subSU003-07883

mainSU00307089iZN6..GTAE201511-201607

ICE SILVER METALLIC,G1U

subSU003-07884

mainSU00307090iZN6..GTAE201511-201607

PURE RED,M7Y

subSU003-07885

mainSU00307091iZN6..GTAE201511-201607

CRYSTAL BLACK SILICA,D4S

subSU003-07886

mainSU00307092iZN6..GTAE201511-201607

CRYSTAL WHITE PEARL,K1X

subSU003-07887

52162DPIECE, REAR BUMPER

mainSU00302984iZN6201203-201607

52162EPIECE, REAR BUMPER

mainSU00302989iZN6201203-201607

52163APLATE, REAR BUMPER, RH

mainSU00301530iZN6..B201203-201607

52164APLATE, REAR BUMPER, LH

mainSU00301531iZN6201203-201607

52167REINFORCEMENT, REAR BUMPER

mainSU00301510iZN6201203-201607

subSU003-08594

52169BBRACKET, REAR BUMPER, CENTER

mainSU00301507iZN6201203-201403

subSU003-05866

mainSU00305767iZN6201403-201410

subSU003-05866

mainSU00305866iZN6201410-201607

52171AREINFORCEMENT, REAR BUMPER, NO.1

mainSU00301512iZN6201203-201607

52172BREINFORCEMENT, REAR BUMPER, NO.2

mainSU00301513iZN6201203-201607

52185ABRACKET, REAR BUMPER SIDE, RH

mainSU00301501iZN6201203-201607

52186ABRACKET, REAR BUMPER SIDE, LH

mainSU00301502iZN6201203-201607

52561ACLIP(FOR REAR BUMPER RETAINER)

mainSU00302988iZN6201203-201607

52575RETAINER, REAR BUMPER SIDE, RH

mainSU00301503iZN6201203-201607

subSU003-08223

52576RETAINER, REAR BUMPER SIDE, LH

mainSU00301504iZN6201203-201607

subSU003-08224

52591SEAL, REAR BUMPER SIDE, RH

mainSU00301527iZN6201203-201505

subSU003-06126

mainSU00306126iZN6201505-201607

52592SEAL, REAR BUMPER SIDE, LH

mainSU00301528iZN6201203-201505

subSU003-06127

mainSU00306127iZN6201505-201607

6101

SU00302801

mainSU003-02801

SU00302880

mainSU003-02880

SU00302918

mainSU003-02918

SU00303352

mainSU003-03352

SU00303367

mainSU003-03367

SU00304955

mainSU003-04955

25 parts on this diagram · 1 diagram in section
