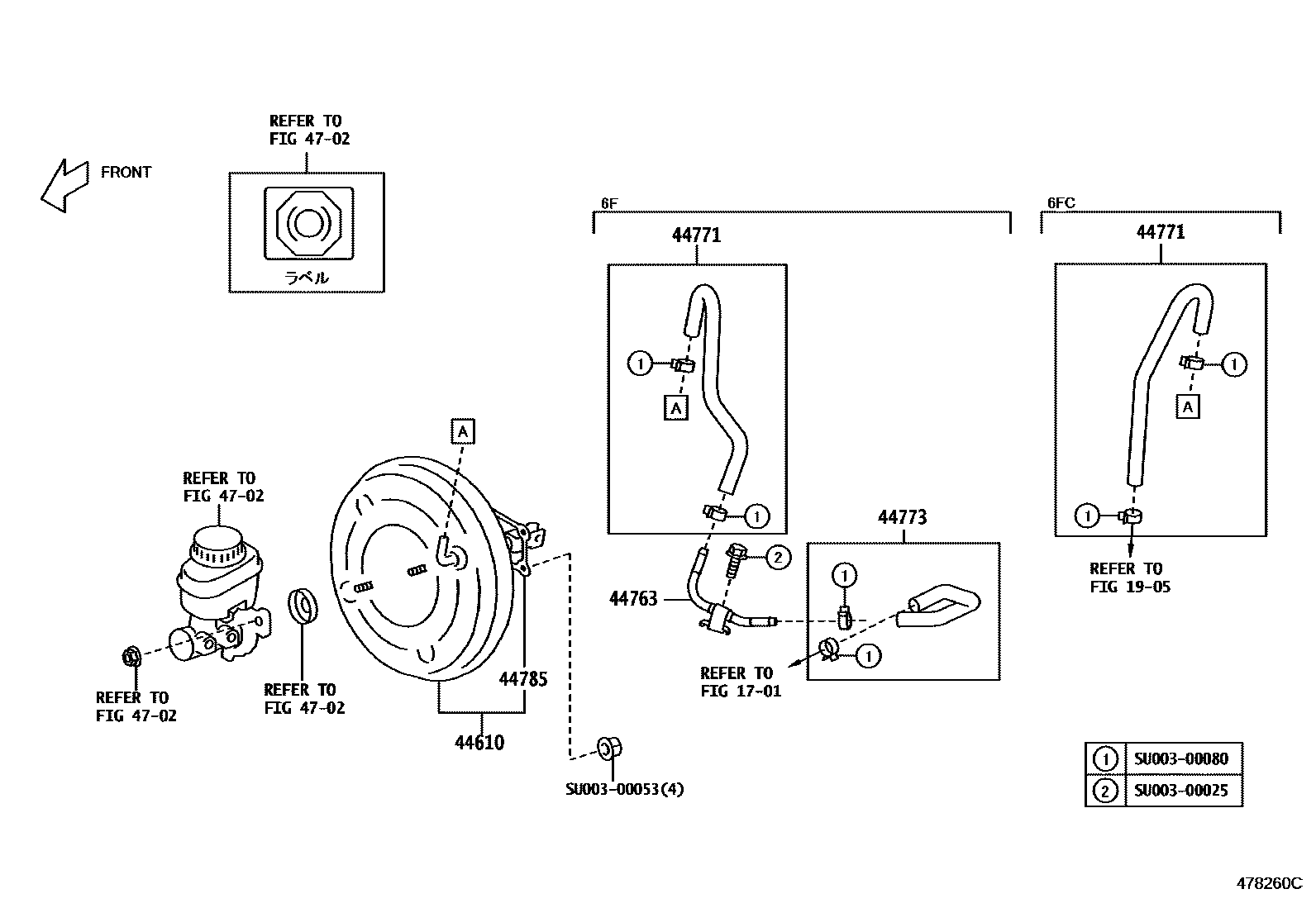

BRAKE BOOSTER & VACUUM TUBE

1701

1905

44610BOOSTER ASSY, BRAKE

mainSU00300589iZN6..B201308-201405

44763TUBE, BOOSTER VACUUM

mainSU00300561iZN6..6F201203-201308

44771HOSE, VACUUM TUBE CONNECTOR

mainSU00300554iZN6..6FC..C201405-201503

mainSU00300557iZN6..6F201203-201308

44773HOSE, VACUUM, NO.2

mainSU00300558iZN6..6F201203-201308

subSU003-06243

44785GASKET, BRAKE BOOSTER

mainSU00304545iZN6201203-201308

4702

SU00300025

mainSU003-00025

SU00300053

mainSU003-00053

SU00300080

mainSU003-00080

11 parts on this diagram · 1 diagram in section
