CLUTCH MASTER CYLINDER

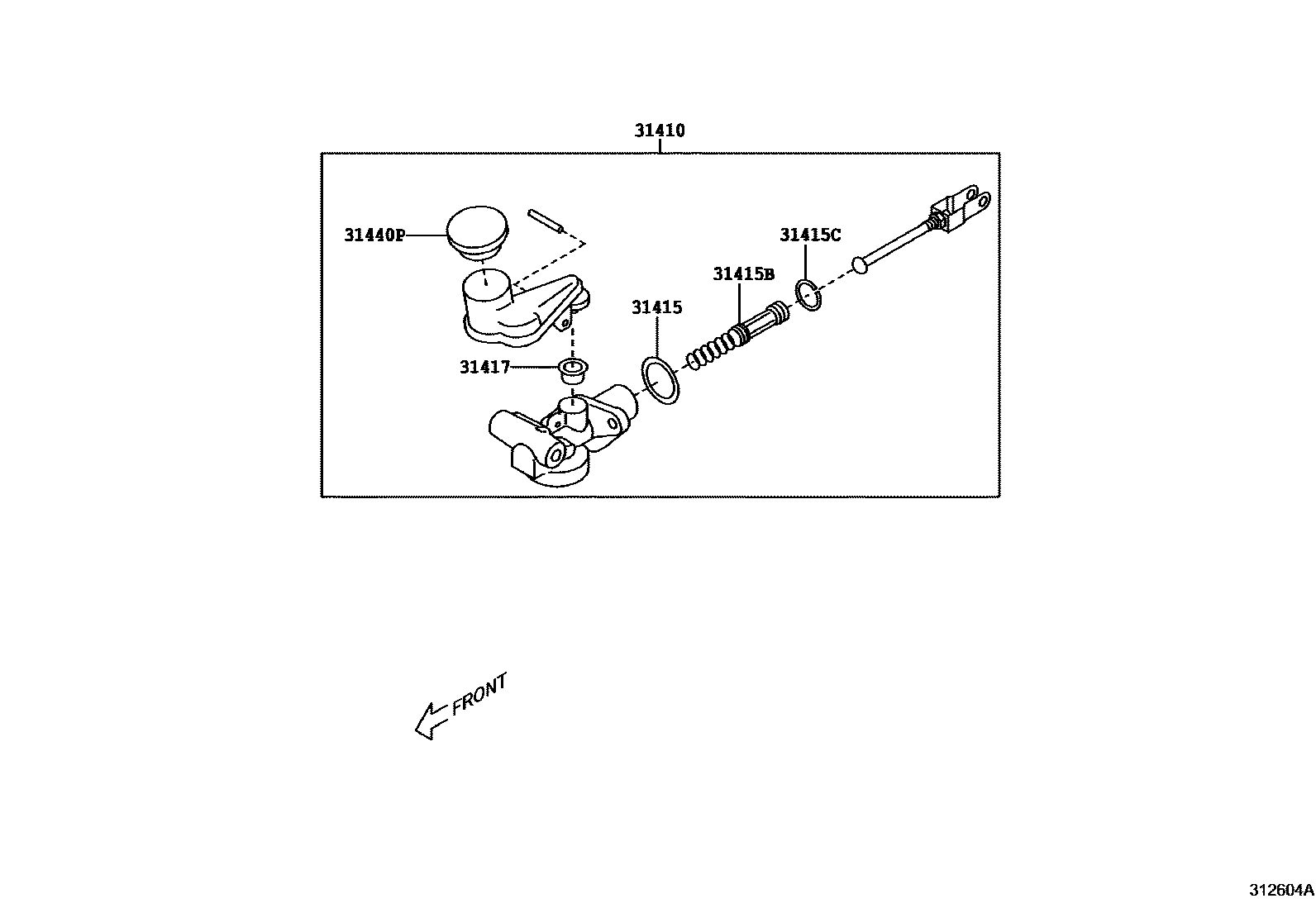

Parts diagram
31410CYLINDER ASSY, CLUTCH MASTER
mainSU00300990i201203-201601
subSU003-10674
mainSU00307117i201602-201607
subSU003-10674
31415GASKET, CLUTCH MASTER CYLINDER
mainSU00300994i201203-201607
31415BPISTON ASSY
mainSU00300992i201203-201607
31415CSTOP RING
mainSU00300126i201203-201607
31417GROMMET, CLUTCH RESERVOIR
mainSU00300592i201203-201607
31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
mainSU00300993i201203-201601
subSU003-07119
mainSU00307119i201602-201607
subSU003-10676

6 parts on this diagram · 1 diagram in section
