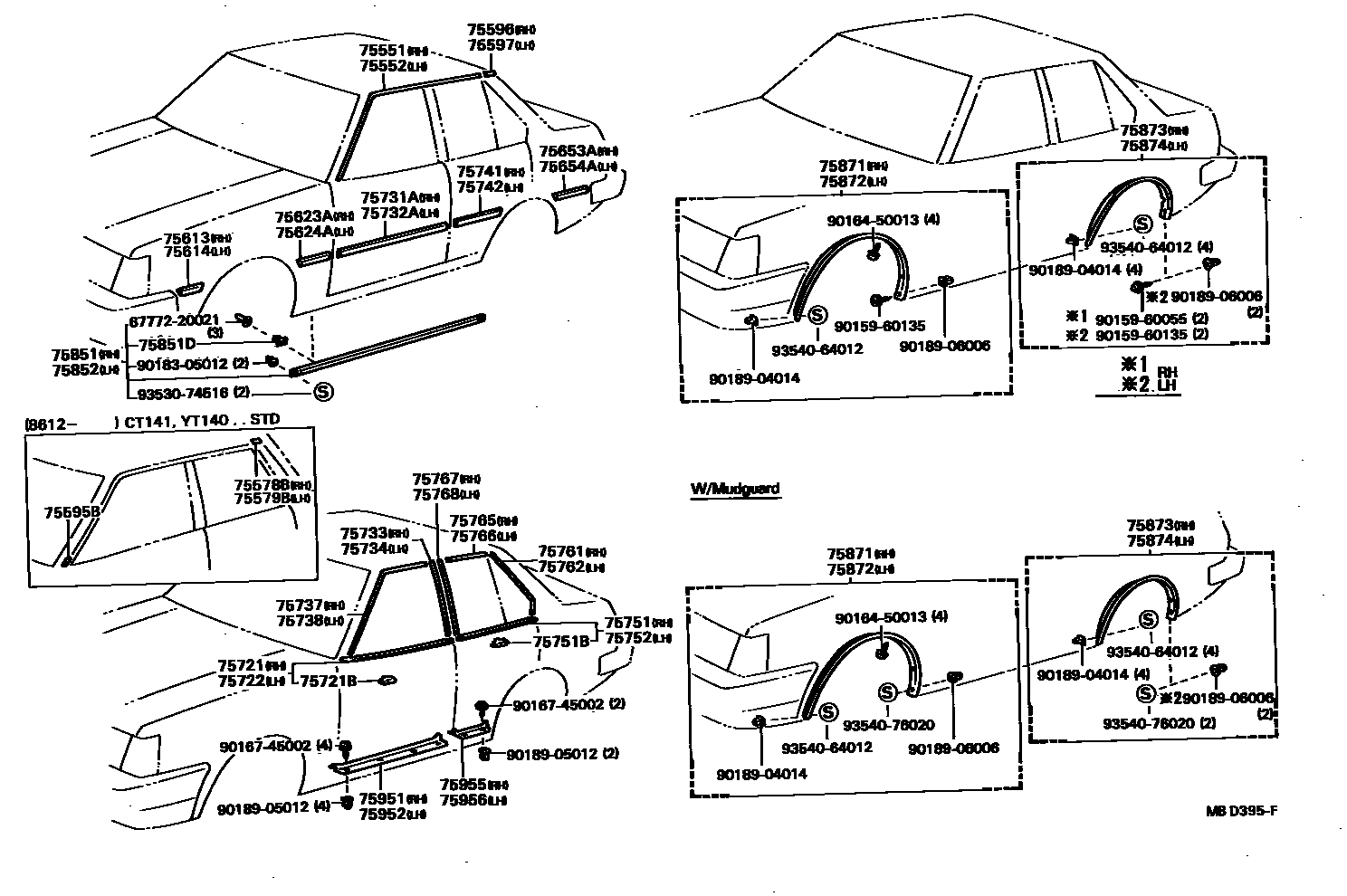

SIDE MOULDING

0001 1 0002 1 0003 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-20190iAT14#,CT140,RT141,ST140,TT142,YT140..SED¥4,510198201-198712

main75551-20300iYT140..DLX¥4,940198612-199804

main75551-91C01iCT147,KT147,TT147¥5,200198201-198712

main75551-91D01iAT141,RT141,ST140,TT142..HT198201-198508

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-20190iAT14#,CT140,RT141,ST140,TT142,YT140..SED¥4,510198201-198712

main75552-20300iCT141,YT140..STD¥4,940198612-199804

main75552-91C01iCT147,KT147,TT147¥5,200198201-198712

main75552-91D01iAT141,RT141,ST140,TT142..HT198201-198508

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-20080iCT141,YT140..STD¥250198612-199804

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-20080iCT141,YT140..STD¥250198612-199804

75595BCOVER, ROOF DRIP SIDE MOULDING END, FRONT

main75595-20010iCT141,YT140..STD¥130198612-199804

RH

main75596-20040iCT141,YT140..STD¥130198612-199804

LH

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-20020iAT14#,CT140,RT141,ST140,TT142,YT140..SED¥590198201-198712

main75596-91C01iCT147,KT147,TT147¥670198201-198712

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-20020iAT14#,CT140,RT141,ST140,TT142,YT140..SED¥590198201-198712

main75596-91C01iCT147,KT147,TT147¥670198201-198712

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-20400iYT140..(3FC,5F)..DLX¥1,930198612-199804

SUPER DLX

main75611-91D01iAT141,RT141,ST140,TT142..HT¥2,870198201-198508

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-20370iYT140..(3FC,5F)..DLX¥1,930198612-199804

SUPER DLX

main75612-91D01iAT141,RT141,ST140,TT142..HT¥2,870198201-198508

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-14020iAT141,RT141,ST140,TT142..HT¥1,920198201-198508

main75623-20030iYT140..(3FC,5F)..DLX¥2,250198612-199804

SUPER DLX

main75623-20030iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥2,250198201-198712

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-14020iAT141,RT141,ST140,TT142..HT¥1,920198201-198508

main75624-20030iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥2,260198201-198712

main75624-20030iYT140..(3FC,5F)..DLX¥2,260198612-199804

SUPER DLX

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75651-20240iYT140..(3FC,5F)..DLX¥3,880198612-199804

SUPER DLX

main75653-20060iST140..SED..GX¥3,280198208-198310

GX EXTRA

main75653-20060iAT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)¥3,280198201-198508

main75653-91261iKT147,TT147..GX¥4,810198201-198712

main75653-91D01iAT141,RT141,ST140,TT142..HT¥3,280198201-198508

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75651-20240iYT140..(3FC,5F)..DLX¥3,880198612-199804

SUPER DLX

main75654-20060iST140..SED..GX¥3,280198208-198310

GX EXTRA

main75654-20060iAT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)¥3,280198201-198508

main75654-91261iKT147,TT147..GX¥4,810198201-198712

main75654-91D01iAT141,RT141,ST140,TT142..HT¥3,280198201-198508

75721MOULDING, FRONT DOOR BELT, RH

main75710-20190iYT140..DLX¥5,100198201-199205

W/O DOOR MIRROR

main75710-20200iAT14#,ST140,TT142..SED..(DLX,GT,GTT,GX)¥5,100198310-198712

W/DOOR MIRROR

main75710-20200iYT140..DLX¥5,100199205-199804

main75710-29075iAT141,RT141,ST140,TT142..HT¥14,200198201-198508

75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)

main68211-20030iAT14#,ST140,TT142..SED..(DLX,GT,GTT,GX)¥270198310-198712

FR,W/DOOR MIRROR

main68211-20030iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)¥270198201-198204

main68211-20030iYT140..DLX¥270199205-199804

GRAY

main68211-20050iAT14#,ST140,TT142..SED..(DLX,GT,GTT,GX)¥270198310-198712

RR,W/DOOR MIRROR

main68211-20050iAT140,CT147,KT147,ST140..DLX,GX¥270198204-199205

W/O DOOR MIRROR

main68211-20050iYT140..DLX¥270199205-199804

WHITE

75722MOULDING, FRONT DOOR BELT, LH

main75720-20190iAT140,CT147,KT147,ST140..DLX,GX¥5,100198201-199205

W/O DOOR MIRROR

main75720-20200iYT140..DLX¥5,100199205-199804

W/O DOOR MIRROR

main75720-20200iAT14#,ST140,TT142..SED..(DLX,GT,GTT,GX)¥5,100198310-198712

W/DOOR MIRROR

main75720-29065iAT141,RT141,ST140,TT142..HT¥14,200198201-198508

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-14120iAT141,RT141,ST140,TT142..HT¥5,800198201-198508

main75731-20090iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥6,900198201-198712

main75731-20090iYT140..(3FC,5F)..DLX¥6,900198612-199804

SUPER DLX

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-14100iAT141,RT141,ST140,TT142..HT¥5,800198201-198508

main75732-20090iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥6,900198201-198712

main75732-20090iYT140..(3FC,5F)..DLX¥6,900198612-199804

SUPER DLX

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-20030iCT140,ST140..SED..(EXA,EXS)¥1,070198201-198310

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-20030iCT140,ST140..SED..(EXA,EXS)198201-198310

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-20110iCT140,ST140..SED..(EXA,EXS)¥1,930198201-198310

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-20110iCT140,ST140..SED..(EXA,EXS)198201-198310

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-20120iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥5,200198201-198712

main75741-20120iYT140..(3FC,5F)..DLX¥5,200198612-199804

SUPER DLX

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-20100iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥5,200198201-198712

main75742-20100iYT140..(3FC,5F)..DLX¥5,200198612-199804

SUPER DLX

75751MOULDING, REAR DOOR BELT, RH

main75730-20060iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)¥4,210198201-199804

75751BCLIP (FOR REAR DOOR BELT MOULDING SET)

main68211-20030iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)¥270198201-198204

main68211-20050iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)¥270198204-199804

75752MOULDING, REAR DOOR BELT, LH

main75740-20130iAT140,CT147,KT147,ST140..DLX,GX¥4,210198201-199804

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-20040iCT140,ST140..SED..(EXA,EXS)¥2,710198201-198310

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-20040iCT140,ST140..SED..(EXA,EXS)¥2,710198201-198310

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-20030iCT140,ST140..SED..(EXA,EXS)¥2,760198201-198310

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-20030iCT140,ST140..SED..(EXA,EXS)¥2,760198201-198310

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-20050iCT140,ST140..SED..(EXA,EXS)¥2,550198201-198310

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-20050iCT140,ST140..SED..(EXA,EXS)¥2,550198201-198310

75851MOULDING, ROCKER PANEL, RH

main75850-19135iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥7,700198201-198712

main75850-19145iAT141,RT141,ST140,TT142..HT¥7,600198201-198508

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-14050iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥240198201-198712

main75867-14060iAT141,RT141,ST140,TT142..HT¥230198201-198508

75852MOULDING, ROCKER PANEL, LH

main75860-19135iAT141,RT141,ST140,TT142..HT¥7,600198201-198508

main75860-19155iAT14#,CT140,KT147,RT141,ST140,TT14#..(SED,V)..(EXA,EXS,GT,GTT,GX,GXA,SX)¥7,700198201-198712

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-29065iCT140,ST140..SED..(EXA,EXS)¥6,000198201-198310

main75085-29085iST140..HT..(EXA,EXS)¥7,700198201-198508

main75085-29105iAT141,TT142..SED¥8,500198310-198508

main75085-29115iAT141,TT142..HT¥9,500198310-198508

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-29065iCT140,ST140..SED..(EXA,EXS)¥6,000198201-198310

main75086-29085iST140..HT..(EXA,EXS)¥7,700198201-198508

main75086-29105iAT141,TT142..SED¥8,500198310-198508

main75086-29115iAT141,TT142..HT¥9,500198310-198508

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-29085iCT140,ST140..SED..(EXA,EXS)¥6,000198201-198310

main75087-29105iST140..HT..(EXA,EXS)¥6,900198201-198508

main75087-29125iAT141,TT142..SED¥8,500198310-198508

main75087-29135iAT141,TT142..HT¥9,500198310-198508

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-29085iCT140,ST140..SED..(EXA,EXS)¥6,000198201-198310

main75088-29105iST140..HT..(EXA,EXS)¥6,900198201-198508

main75088-29125iAT141,TT142..SED¥8,500198310-198508

main75088-29135iAT141,TT142..HT¥9,500198310-198508

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-14090-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main67913-14090-01iCT147,TT147,YT140;AT140,CT140,TT142..SED..(GTT,STD)198201-199804

BLACK,BLACK,TRIM2#

main67913-14090-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main67913-14090-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

main67913-14090-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main67913-14090-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main67913-14100-01iAT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

sub67913-14100¥4,170

main67913-14100-04iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198508

BLUE,BLUE,TRIM8#

sub67913-14100¥4,170

main67913-14100-16iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub67913-14100¥4,170

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-14100-01iAT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

sub67913-14100¥4,170

main67913-14100-04iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198508

BLUE,BLUE,TRIM8#

sub67913-14100¥4,170

main67913-14100-16iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub67913-14100¥4,170

main67914-14080-01iCT141,YT140198201-199804

BLACK,BLACK,TRIM2#

main67914-14080-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main67914-14080-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main67914-14080-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

main67914-14080-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main67914-14080-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-14030-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main67917-14030-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main67917-14030-01iYT140;AT140,CT140,TT142..SED..(GTT,STD)198201-199804

BLACK,BLACK,TRIM2#

main67917-14030-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

main67917-14030-16iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main67917-91C01-01iCT147,KT147,TT147198201-198712

BLACK,BLACK,TRIM2#

main67917-91C01-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main67917-91C01-16iCT147,TT147..DLX,GX198201-198310

SADDLE BROWN,BROWN,TRIM4#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-14030-01iCT141,YT140198201-199804

BLACK,BLACK,TRIM2#

main67918-14030-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main67918-14030-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main67918-14030-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198712

BLUE,BLUE,TRIM8#

main67918-14030-16iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main67918-91C01-01iCT147,KT147,TT147198201-198712

BLACK,BLACK,TRIM2#

main67918-91C01-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main67918-91C01-16iCT147,TT147..DLX,GX198201-198310

SADDLE BROWN,BROWN,TRIM4#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021¥240

9015960055

main90159-60055¥240

9015960135

main90159-60135¥330

9016450013

main90164-50013¥130

9016745002

main90167-45002¥130

9018305012

main90183-05012¥260

9018904014

main90189-04014¥120

9018905012

main90189-05012¥220

9018906006

main90189-06006¥100

9353074516

main93530-74516¥130

9354064012

main93540-64012¥80

9354076020

main93540-76020¥180

56 parts on this diagram · 3 diagrams in section
