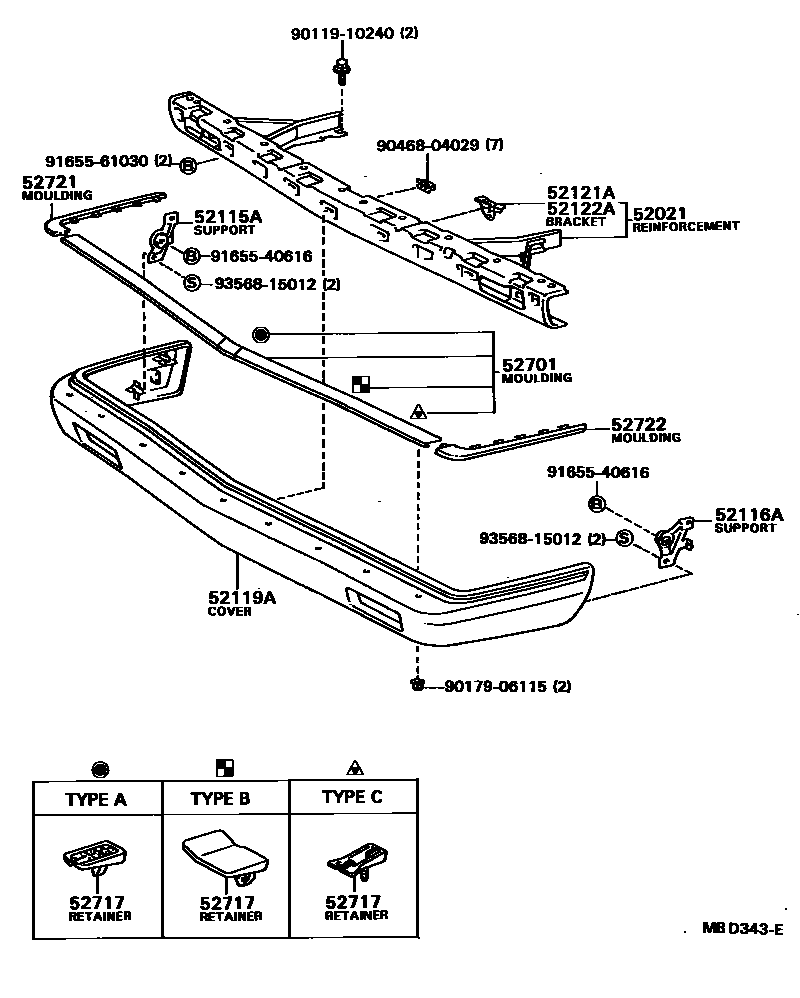

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0005 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20040iAT140,CT147,KT147,ST140198612-198712

main52021-20050iST140..SED..GX198208-198310

GX EXTRA

main52021-20160iCT141,YT140198612-199804

main52021-91D01iAT141,RT141,ST140,TT142..HT198201-198508

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20101iAT140,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXA,EXS,GX,GXA,STD,SX)198201-198612

main52115-20110iAT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198201-198508

W/*UB

main52115-20220iCT141,YT140198612-199804

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20081iAT140,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXA,EXS,GX,GXA,STD,SX)198201-198612

main52116-20090iST140..SED..GX198208-198310

GX EXTRA

main52116-20130iCT141,YT140198612-199804

52119ACOVER, FRONT BUMPER

main52119-20050iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

main52119-20060-02iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198201-198209

W/*UB,APRICOT-M,RED/MAROON,3B4

main52119-20060-03iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198201-198209

W/*UB,SILVER-M,GRAY,125 ,2G5

main52119-20060-04iST140..SED..GX198208-198209

GX EXTRA,BLUE-M,BLUE,889

main52119-20060-05iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198201-198209

W/*UB,BEIGE-M,BEIGE,4A5 ,2E2

main52119-20060-08iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198201-198209

W/*UB,WHITE,IVORY,033

main52119-20061-02iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198209-198210

W/*UB,APRICOT-M,RED/MAROON,3B4

sub52119-20900

main52119-20061-03iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198209-198310

W/*UB,SILVER-M,GRAY,125 ,2G5

sub52119-20900

main52119-20061-04iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198209-198310

W/*UB,BLUE-M,BLUE,889

sub52119-20900

main52119-20061-05iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198209-198310

W/*UB,BEIGE-M,BEIGE,4A5 ,2E2

sub52119-20900

main52119-20061-08iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198209-198310

GX EXTRA,WHITE,IVORY,033

sub52119-20900

main52119-20061-12iCT140,ST140,TT142..SED..(EXA,EXS,GTT,SX)198210-198310

W/*UB,RED,RED/MAROON,391

sub52119-20900

main52119-20061-14iCT140,ST140,TT142..SED..(EXA,EXS,GTT,SX)198210-198310

W/*UB,BLUE-M,BLUE,896

sub52119-20900

main52119-20061-15iST140..SED..GX198306-198310

GX EXTRA,LIGHT BEIGE-M,BEIGE,4D2

sub52119-20900

main52119-20070-02iRT141,TT142..SED198201-198209

W/*UB & *HC,APRICOT-M,RED/MAROON,3B4

main52119-20070-03iRT141,TT142..SED198201-198209

W/*UB & *HC,SILVER-M,GRAY,125 ,2G5

main52119-20070-04iRT141,TT142..SED198201-198209

W/*UB & *HC,BLUE-M,BLUE,889

main52119-20070-05iRT141,TT142..SED198201-198209

W/*UB & *HC,BEIGE-M,BEIGE,4A5 ,2E2

main52119-20070-08iRT141,TT142..SED198201-198209

W/*UB & *HC,WHITE,IVORY,033

main52119-20071-02iRT141,TT142..SED198209-198210

W/*UB & *HC,APRICOT-M,RED/MAROON,3B4

sub52119-20912

main52119-20071-03iRT141,TT142..SED198209-198310

W/*UB & *HC,SILVER-M,GRAY,125 ,2G5

sub52119-20912

main52119-20071-04iRT141,TT142..SED198209-198310

W/*UB & *HC,BLUE-M,BLUE,889

sub52119-20912

main52119-20071-05iRT141,TT142..SED198209-198310

W/*UB & *HC,BEIGE-M,BEIGE,4A5 ,2E2

sub52119-20912

main52119-20071-08iRT141,TT142..SED198209-198310

W/*UB & *HC,WHITE,IVORY,033

sub52119-20912

main52119-20071-12iTT142..SED198210-198310

W/*UB & *HC,RED,RED/MAROON,391

sub52119-20912

main52119-20071-14iTT142..SED198210-198310

W/*UB & *HC,BLUE-M,BLUE,896

sub52119-20912

main52119-20090iYT140;AT140,CT140..STD198201-198612

main52119-20150-02iAT141,TT142..SED198310-198508

W/O *HC,RED,RED/MAROON,3D7

sub52119-20937

main52119-20150-03iAT141,TT142..SED198310-198508

W/O *HC,SILVER-M,GRAY,2R9

sub52119-20937

main52119-20150-04iAT141,TT142..SED198310-198508

W/O *HC,LIGHT BLUE-M,BLUE,894

sub52119-20937

main52119-20150-07iAT141,TT142..SED198310-198508

W/O *HC,TURQUOISE-M,GREEN,718

sub52119-20937

main52119-20150-08iAT141,TT142..SED198310-198508

W/O *HC,WHITE,IVORY,038

sub52119-20937

main52119-20150-14iAT141,TT142..SED198310-198508

W/O *HC,DARK BLUE-M,BLUE,896

sub52119-20937

main52119-20160-02iTT142..SED198310-198508

W/*HC,RED,RED/MAROON,3D7

sub52119-20938

main52119-20160-03iTT142..SED198310-198508

W/*HC,SILVER-M,GRAY,2R9

sub52119-20938

main52119-20160-04iTT142..SED198310-198508

W/*HC,LIGHT BLUE-M,BLUE,894

sub52119-20938

main52119-20160-07iTT142..SED198310-198508

W/*HC,TURQUOISE-M,GREEN,718

sub52119-20938

main52119-20160-08iTT142..SED198310-198508

W/*HC,WHITE,IVORY,038

sub52119-20938

main52119-20160-14iTT142..SED198310-198508

W/*HC,DARK BLUE-M,BLUE,896

sub52119-20938

main52119-20390iCT141,YT140198612-199804

main52119-20400iYT140..(3FC,5F)..DLX198612-199804

SUPER DLX

main52119-91D01-01iRT141,ST140,TT142..HT198201-198310

BLACK-M,BLACK,203 ,2E1

sub52119-91900

main52119-91D01-02iRT141,ST140,TT142..HT198201-198210

APRICOT-M,RED/MAROON,3B4

sub52119-91900

main52119-91D01-03iRT141,ST140,TT142..HT198201-198310

SILVER-M,GRAY,125 ,2G5

sub52119-91900

main52119-91D01-07iAT141,ST140,TT142..HT198310-198508

TURQUOISE-M,GREEN,722

sub52119-91900

main52119-91D01-08iRT141,ST140,TT142..HT198201-198310

WHITE,IVORY,033

sub52119-91900

main52119-91D01-12iRT141,ST140,TT142..HT198201-198310

RED,RED/MAROON,391

sub52119-91900

main52119-91D01-13iAT141,ST140,TT142..HT198310-198508

SILVER-M,GRAY,2S1

sub52119-91900

main52119-91D01-14iAT141,ST140,TT142..HT198210-198508

BLUE-M,BLUE,896

sub52119-91900

main52119-91D01-18iTT142..HT..GTT198306-198310

SUPER WHITE,IVORY,035

sub52119-91900

main52119-91D01-22iAT141,ST140,TT142..HT198310-198508

RED,RED/MAROON,3D7

sub52119-91900

main52119-91D01-28iAT141,ST140,TT142..HT198310-198508

WHITE,IVORY,038

sub52119-91900

main52119-91D02-01iRT141,TT142..HT198201-198210

W/*HC,BLACK-M,BLACK,203 ,2E1

main52119-91D02-02iRT141,TT142..HT198201-198210

W/*HC,APRICOT-M,RED/MAROON,3B4

main52119-91D02-03iRT141,TT142..HT198201-198210

W/*HC,SILVER-M,GRAY,125 ,2G5

main52119-91D02-08iRT141,TT142..HT198201-198210

W/*HC,WHITE,IVORY,033

main52119-91D02-12iRT141,TT142..HT198201-198210

W/*HC,RED,RED/MAROON,391

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-20030iAT140,CT14#,KT147,ST140,YT140..SED,V198502-198610

main52121-20080iAT140,KT147,ST140198612-198712

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-20040iAT140,CT14#,KT147,ST140,YT140..SED,V198502-198610

main52122-20050iAT140,CT14#,KT147,ST140,YT140198610-198612

52701MOULDING SUB-ASSY, FRONT BUMPER

main52701-20020iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

main52711-14020iYT140..(3FC,5F)..DLX198612-199804

SUPER DLX

main52711-14030iYT140..DLX198612-199804

main52711-20150iCT141,YT140..STD198612-199804

52717RETAINER, FRONT BUMPER MOULDING

main52717-20020×6iTT147..GX198201-198209

TYPE A

main52717-20030iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

TYPE B

main52717-20040×2iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

TYPE C

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52712-20010iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

main52712-20021iYT140;AT140,CT140..STD198201-198612

52722MOULDING, FRONT BUMPER EXTENSION, LH

main52713-20010iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

main52713-20021iAT140..STD198612-198712

9011910240

main90119-10240

9017906115

main90179-06115

9046804029

main90468-04029

9165540616

main91655-40616

9165561030

main91655-61030

9356815012

main93568-15012

16 parts on this diagram · 4 diagrams in section
