FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iCT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14#198201-198712

43345COVER, LOWER BALL JOINT DUST

main43345-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-20030iCT140,141,YT140198504-199804

COLD SPEC

45543PROTECTOR, STEERING RACK BOOT, RH

main45543-14010iAT141,RT141,TT142198201-198508

45544PROTECTOR, STEERING RACK BOOT, LH

main45544-14010iAT141,RT141,TT142198201-198508

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19105iCT140..EXS,GX;AT14#,RT141,ST140,TT142198201-198712

sub48068-29125

main48068-19115iCT147,KT147,TT147198201-198712

sub48068-29135

main48068-29075iCT140,141,YT140198201-199804

main48068-29105iCT140,YT140198504-198606

COLD SPEC

sub48068-29075

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12039iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

L=85

main90101-12291iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

L=81

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19085iCT140..EXS,GX;AT14#,RT141,ST140,TT142198201-198712

sub48069-29125

main48069-19095iCT147,KT147,TT147198201-198712

sub48069-29135

main48069-29075iCT140,YT140..DLX,STD198201-199804

main48069-29105iCT140,YT140198504-198606

COLD SPEC

sub48069-29075

48654BUSH, LOWER ARM

main48654-12010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

9017012005

main90170-12005

9017114048

main90171-14048

9041606002

main90416-06002

9058010001

main90580-10001

9451201200

main94512-01200

9538103025

main95381-03025

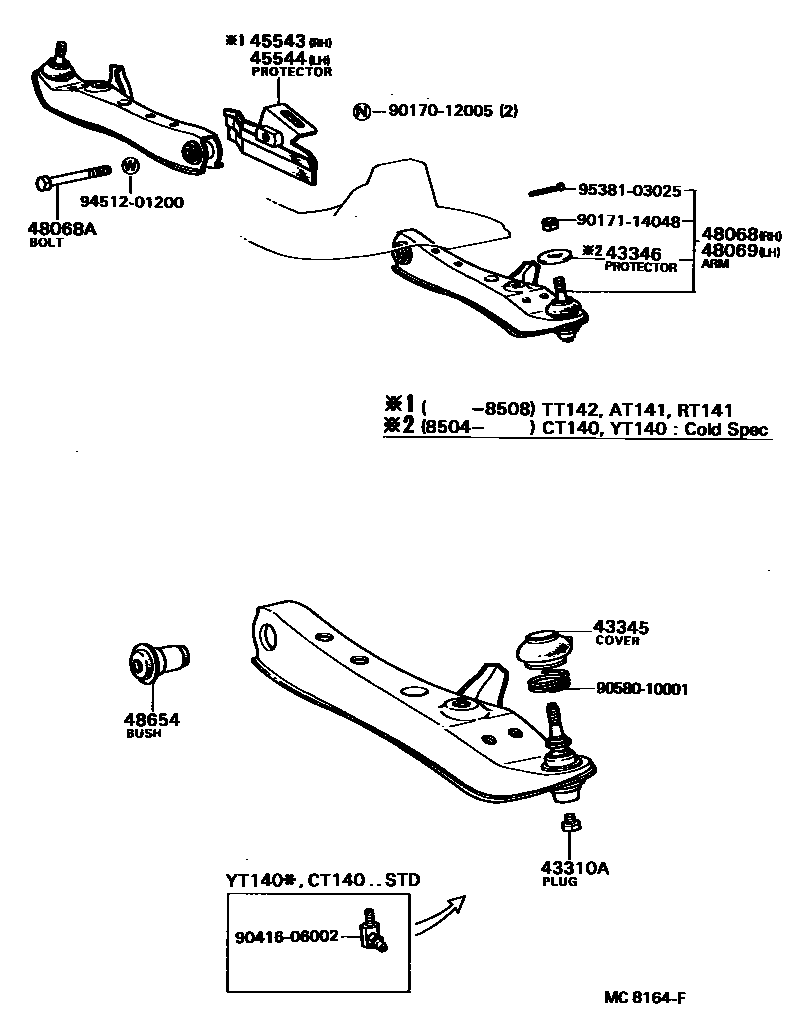

15 parts on this diagram · 1 diagram in section
