OIL FILTER

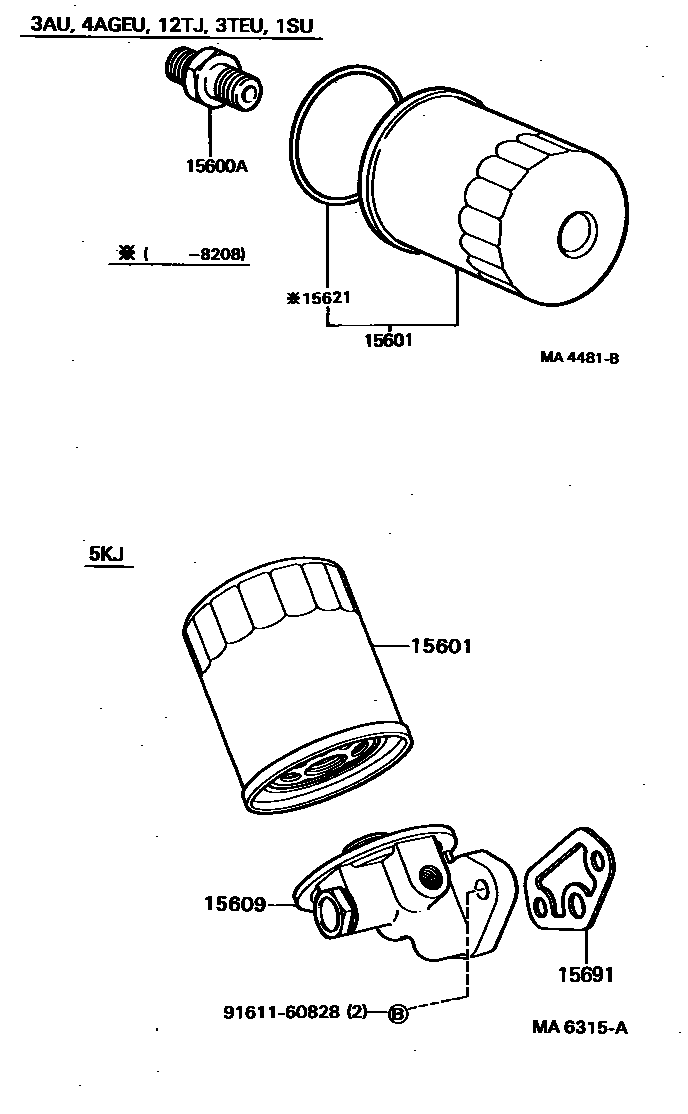

Parts diagram
15600AUNION(FOR OIL FILTER)
main15116-54021i199103-199111
main90404-19001i198201-198712
main90404-19002i198201-198712
main90404-19003i198201-198303
main90404-19004i198303-198712
main90404-20010i198210-198508
main90404-20173i198201-198310
main90404-27001i198612-199103
sub15116-54021
15601FILTER SUB-ASSY, OIL
main15600-25010i198201-198712
sub90915-20003
main15601-13010i198201-198306
main15601-13011i198306-198712
sub90915-03001
main15601-33020i198201-198306
main15601-33021i198306-199804
main90915-03001i198706-198712
sub90915-10001
main90915-03003i198612-199106
sub90915-30001
main90915-30001i199106-199111
15609BRACKET SUB-ASSY, OIL FILTER
main15609-71010i198209-198608
main15609-71011i198608-199804
main15609-88272i198201-198210
main15670-88280i198210-198508
main15670-88281i198310-198508
main15671-13040i198310-198712
main15677-64010i198201-198303
main15677-64030i198303-198608
main15677-64031i198608-198712
main15677-64080i198612-199111
sub15677-64081
15621GASKET, OIL FILTER BODY
main15621-22010i198201-198208
main15621-41010i198201-198208
15691GASKET, OIL FILTER
main15691-22011i198310-198712
sub15691-13020
main15691-64011i198201-198303
sub15691-64012
main15691-64020i198303-198608
main15691-64030i198608-199111
sub15691-64040
main15691-71010i198209-199804
sub15691-71011
main15691-88270i198201-198210
sub15691-88271
9161160828
main91611-60828

6 parts on this diagram · 6 diagrams in section
