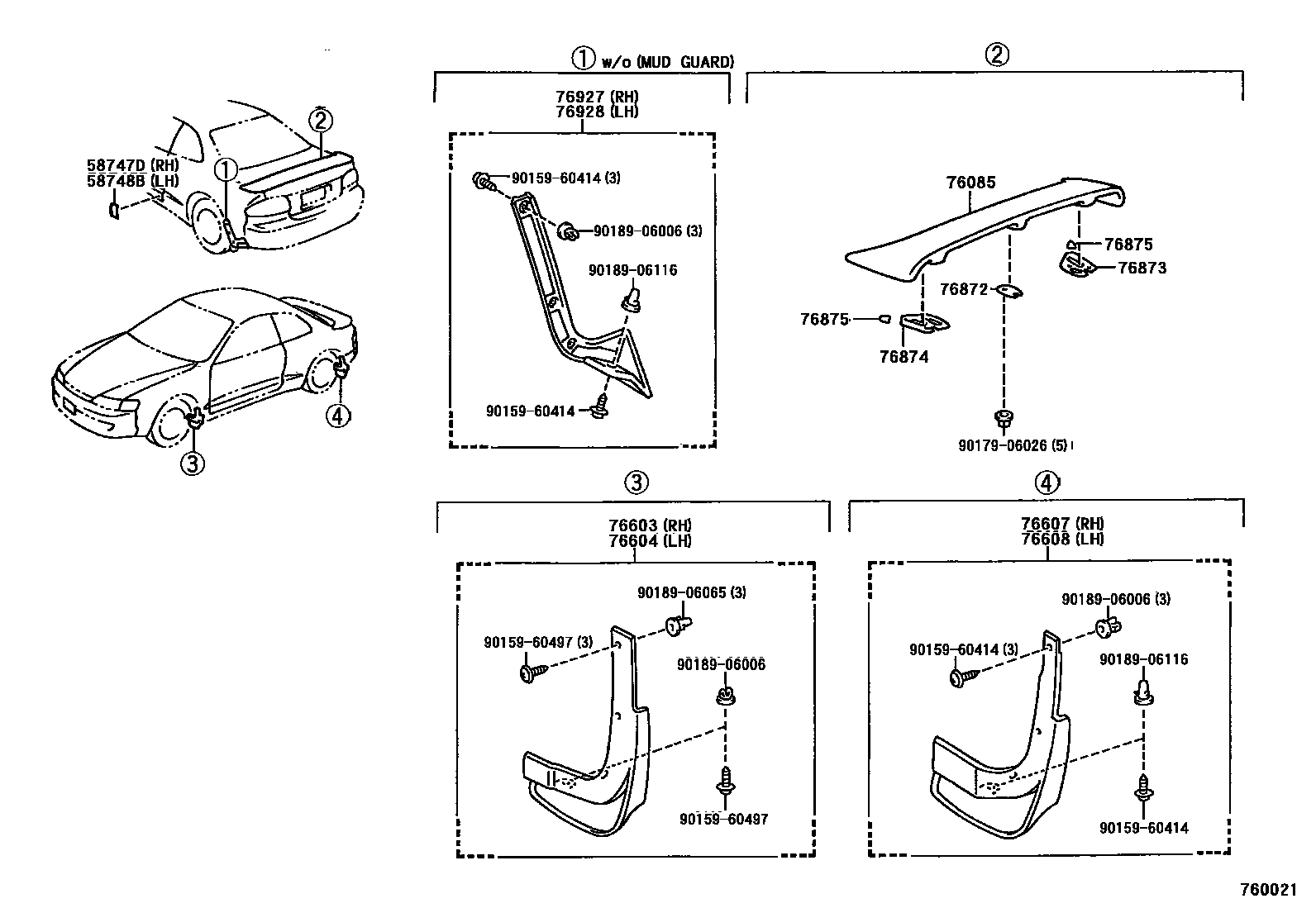

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

58747DPROTECTOR, QUARTER PANEL, REAR RH

main58747-20020iST20#¥810199402

58748BPROTECTOR, QUARTER PANEL, REAR LH

main58748-20020iST20#¥810199402

76085SPOILER SUB-ASSY, REAR

main76085-20916iST20#¥54,100199402-199509

main76871-20912iST20#¥49,100199509

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29165iST20#¥4,740199402

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29165iST20#¥4,740199402

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29195iST20#¥4,870199402

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29195iST20#¥4,870199402

76872PROTECTOR, REAR SPOILER, NO.1

main76872-20160iST20#¥210199402-199509

sub76872-20210¥390

main76872-20210iST20#¥390199509

76873PROTECTOR, REAR SPOILER, NO.2

main76873-20140iST20#¥450199402-199509

main76873-20170iST20#¥550199509

76874PROTECTOR, REAR SPOILER, NO.3

main76874-20150iST20#¥450199402-199509

main76874-20160iST20#¥550199509

76875PROTECTOR, REAR SPOILER, NO.4

main76875-20090iST20#¥500199402

76927PROTECTER, REAR MUDGUARD, RH

main76927-29015iST20#¥2,470199402

76928PROTECTER, REAR MUDGUARD, LH

main76928-29015iST20#¥2,470199402

9015960414

main90159-60414¥120

9015960497

main90159-60497¥70

9017906026

main90179-06026¥70

9018906006

main90189-06006¥100

9018906065

main90189-06065¥80

9018906116

main90189-06116¥130

19 parts on this diagram · 3 diagrams in section
