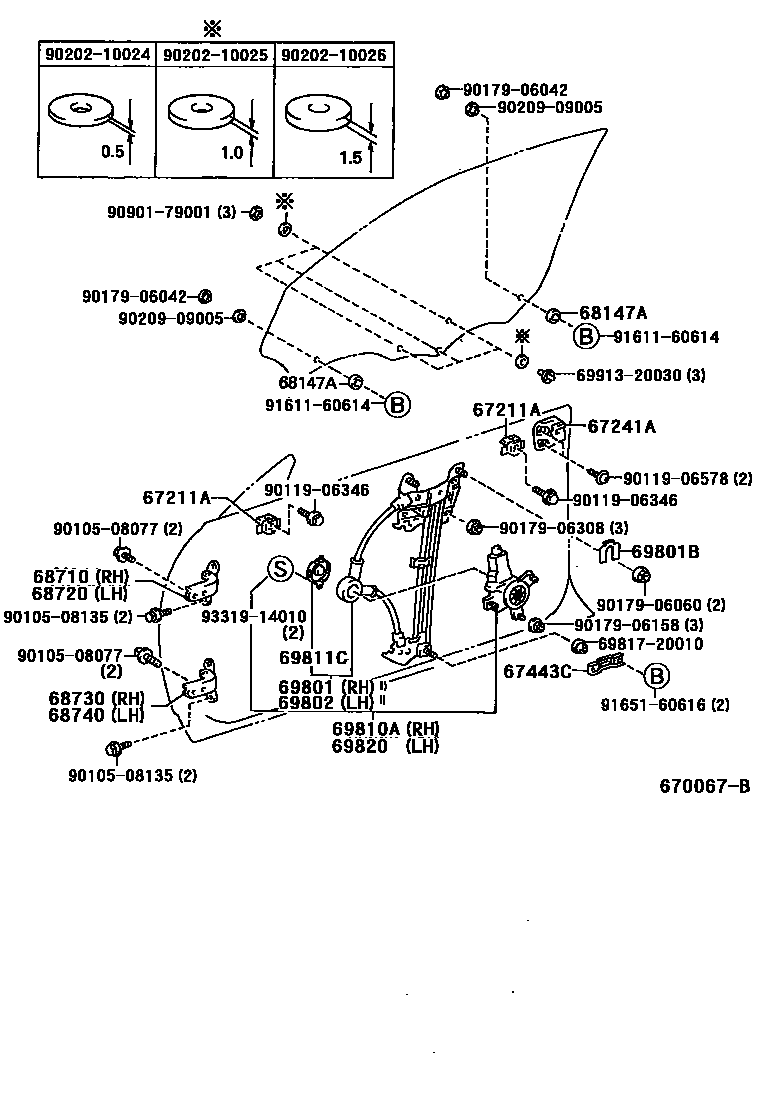

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-22040iST20#199402

67241ASTABILIZER, DOOR GLASS, INNER

main67235-20050iST20#199402

main67236-20030iST20#199402

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-20070iST20#199402

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-30020iST20#199402

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iST20#199402-199510

sub68710-12150

main68710-12150iST20#199510

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iST20#199402-199510

sub68720-12150

main68720-12150iST20#199510

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iST20#199402-199510

sub68730-12110

main68730-12110iST20#199510

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iST20#199402-199510

sub68740-12110

main68740-12110iST20#199510

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20240iST20#199402-199502

sub69801-20241

main69801-20241iST20#199502

69801BSHIM, WINDOW REGULATOR

main63277-20030iST20#199402

main63277-20050iST20#199402

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20260iST20#199402-199502

sub69802-20261

main69802-20261iST20#199502

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-20340iST20#199402

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-20050iST20#199408

main69813-32030iST20#199402-199408

main69814-20050iST20#199408

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-20360iST20#199402

6981720010PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-20010

6991320030BOLT, FRONT DOOR GLASS SETTING

main69913-20030

9010508077

main90105-08077

9010508135

main90105-08135

9011906346

main90119-06346

9011906578

main90119-06578

9017906042

main90179-06042

9017906060

main90179-06060

9017906158

main90179-06158

9017906308

main90179-06308

9020210024

main90202-10024

9020210025

main90202-10025

9020210026

main90202-10026

9020909005

main90209-09005

9090179001

main90901-79001

9161160614

main91611-60614

9165160616

main91651-60616

9331914010

main93319-14010

32 parts on this diagram · 1 diagram in section
