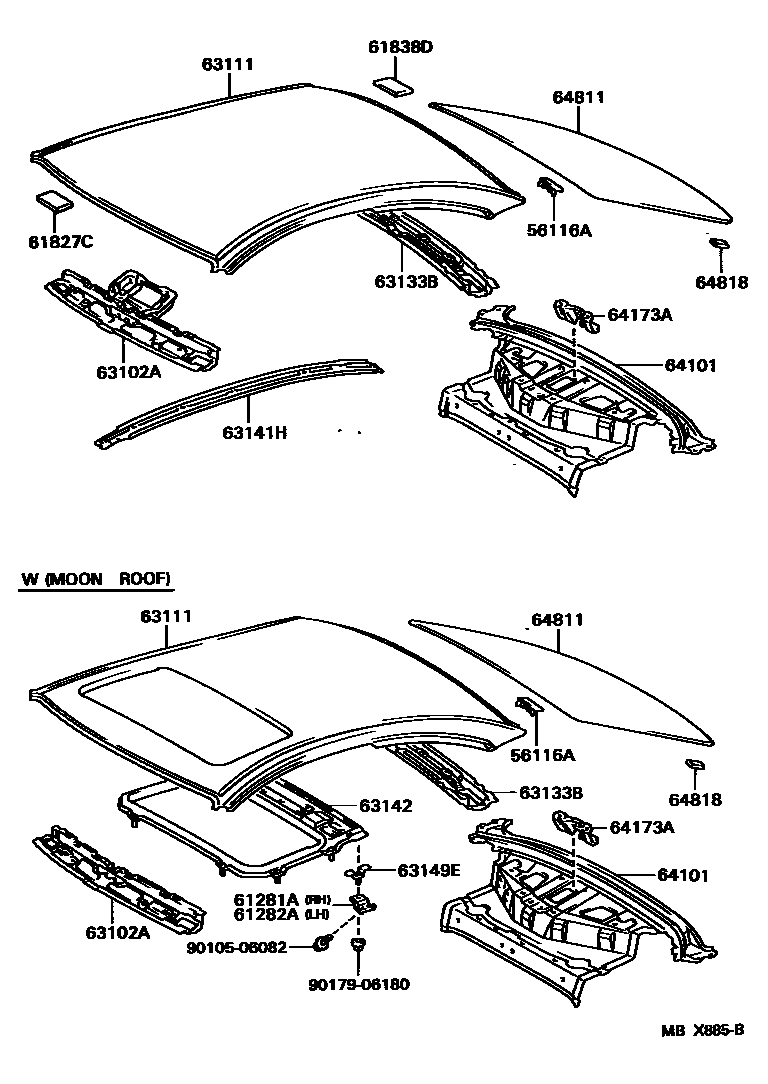

ROOF PANEL & BACK WINDOW GLASS
56116ASPACER, WINDSHIELD GLASS
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2
61827CPLATE, NOISE CONTROL, NO.4
61838DPLATE, NOISE CONTROL, NO.5
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63133BFRAME, BACK WINDOW
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2
64173ABRACKET, HIGH MOUNTING STOP LAMP
64811GLASS, BACK WINDOW
64818SPACER, BACK WINDOW GLASS
9010506082
main90105-06082
9017906180
main90179-06180
17 parts on this diagram · 2 diagrams in section
