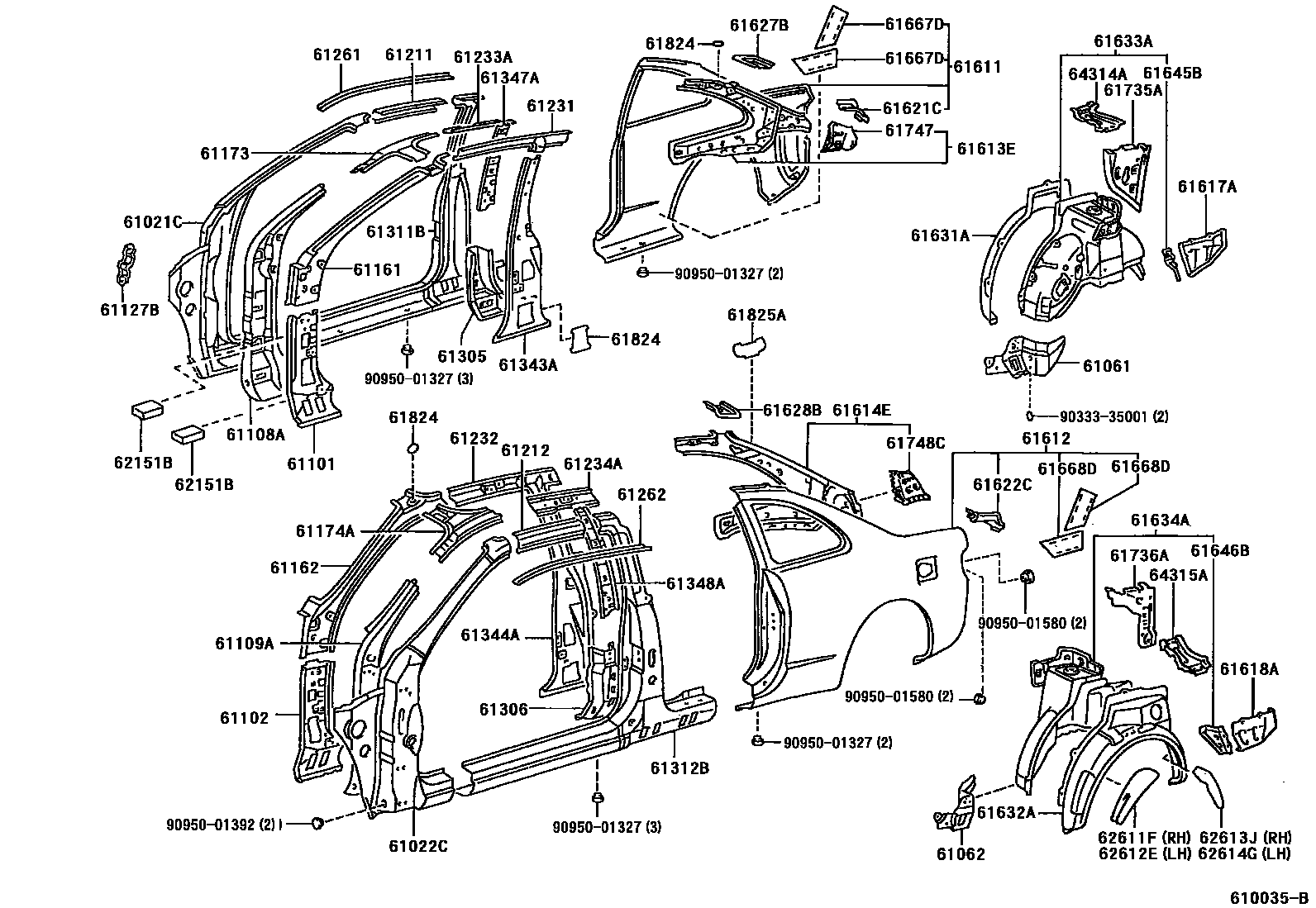

SIDE MEMBER

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61027-20100iST20#199402

main61027-20130iST207;ST206..ZS199509

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61028-20090iST20#199402

main61028-20130iST207;ST206..ZS199509

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-2B010iST20#199402-199509

sub61061-2B020

main61061-2B020iST20#199509

61062REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH

main61062-20010iST20#199402-199509

sub61062-20020

main61062-20020iST20#199509

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-20270iST20#199402

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-20230iST20#199402

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-20100iST20#199402

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-20100iST20#199402

61127BREINFORCEMENT, COWL SIDE PANEL, NO.2 RH

main61127-20020iST20#199402

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-20210iST20#199402

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-20210iST20#199402

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-20090iST20#199402

61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH

main61174-20090iST20#199402

61211RAIL, ROOF SIDE, OUTER RH

main61211-20260iST20#199402

61212RAIL, ROOF SIDE, OUTER LH

main61212-20260iST20#199402

61231RAIL, ROOF SIDE, INNER RH

main61231-20390iST20#199402

61232RAIL, ROOF SIDE, INNER LH

main61232-20380iST20#199402

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-20030iST20#199402

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-20020iST20#199402

61261CHANNEL, ROOF DRIP, RH

main61261-20120iST20#199402

61262CHANNEL, ROOF DRIP, LH

main61262-20120iST20#199402

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-20140iST20#199402-199505

sub61305-20141

main61305-20141iST20#199505-199509

sub61305-20150

main61305-20150iST20#199509

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-20140iST20#199402-199504

sub61306-20141

main61306-20141iST20#199504-199509

sub61306-20150

main61306-20150iST20#199509

61311BPILLAR, CENTER BODY, OUTER RH

main61311-20260iST20#199402-199509

sub61311-20290

main61311-20290iST20#199509

main61311-20300iST207;ST206..ZS199509

61312BPILLAR, CENTER BODY, OUTER LH

main61312-20330iST20#199402-199509

sub61312-20360

main61312-20360iST20#199509

main61312-20370iST207;ST206..ZS199509

61343APILLAR, CENTER BODY, INNER RH

main61343-20130iST20#199402-199509

sub61343-20160

sub90333-25001

main61343-20160iST20#199509

61344APILLAR, CENTER BODY, INNER LH

main61344-20130iST20#199402-199509

sub61344-20160

sub90333-25001

main61344-20160iST20#199509

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-20180iST20#199402

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-20140iST20#199402

61611PANEL, QUARTER, RH

main61601-2B910iST20#199402

sub61601-2B919

sub61621-20210

main61601-2D903iST207;ST206..ZS199509

sub61601-2D905

sub61621-20210

61612PANEL, QUARTER, LH

main61602-2D910iST20#199402

sub61602-2D920

sub61622-20210

main61602-2D915iST207;ST206..ZS199509

sub61602-2D921

sub61622-20210

61613EPANEL, QUARTER, INNER RH

main61703-20270iST20#199402-199509

sub61703-20300

main61703-20300iST20#199509

61614EPANEL, QUARTER, INNER LH

main61704-20300iST20#199402-199509

sub61704-20330

main61704-20330iST20#199509

61617APANEL, QUARTER INNER, REAR RH

main61617-20140iST20#199402

61618APANEL, QUARTER, INNER REAR LH

main61618-20160iST20#199402

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20210iST20#199402

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20210iST20#199402

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-20130iST20#199402

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-20150iST20#199402

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-20903iST20#199402

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20260iST20#199402

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20925iST20#199402

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20920iST20#199402

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-20110iST20#199402

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-20110iST20#199402

61667DSEAL, QUARTER PANEL

main61667-20070iST20#199408-199509

61668DSEAL, QUARTER PANEL, LH

main61668-20060iST20#199408-199509

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-20220iST20#199402

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-20200iST20#199402

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-20160iST20#199402

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-20150iST20#199402

61824PLATE, NOISE CONTROL, NO.1

main61824-12040iST20#199402-199412

main61824-20140iST20#199412

main61824-20150iST206,207199402

main61824-20150iST20#199402

61825APLATE, NOISE CONTROL, NO.2

main61825-20140iST20#199402-199412

sub61825-20160

main61825-20160iST20#199412

62151BPAD, COWL SIDE SILENCER

main62151-20160iST20#199505

62611FINSULATOR, QUARTER WHEEL HOUSE, RH

main62611-20130iST20#199408-199509

62612EINSULATOR, QUARTER WHEEL HOUSE, LH

main62612-20160iST20#199408-199509

62613JINSURATOR, QUARTER WHEEL HOUSE, NO.2 RH

main62613-20090iST20#199408-199509

62614GINSURATOR, QUARTER WHEEL HOUSE, NO.2 LH

main62614-20090iST20#199408-199509

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-20210iST20#199402

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-20200iST20#199402

9033335001

main90333-35001

9095001327

main90950-01327

9095001392

main90950-01392

9095001580

main90950-01580

64 parts on this diagram · 1 diagram in section
