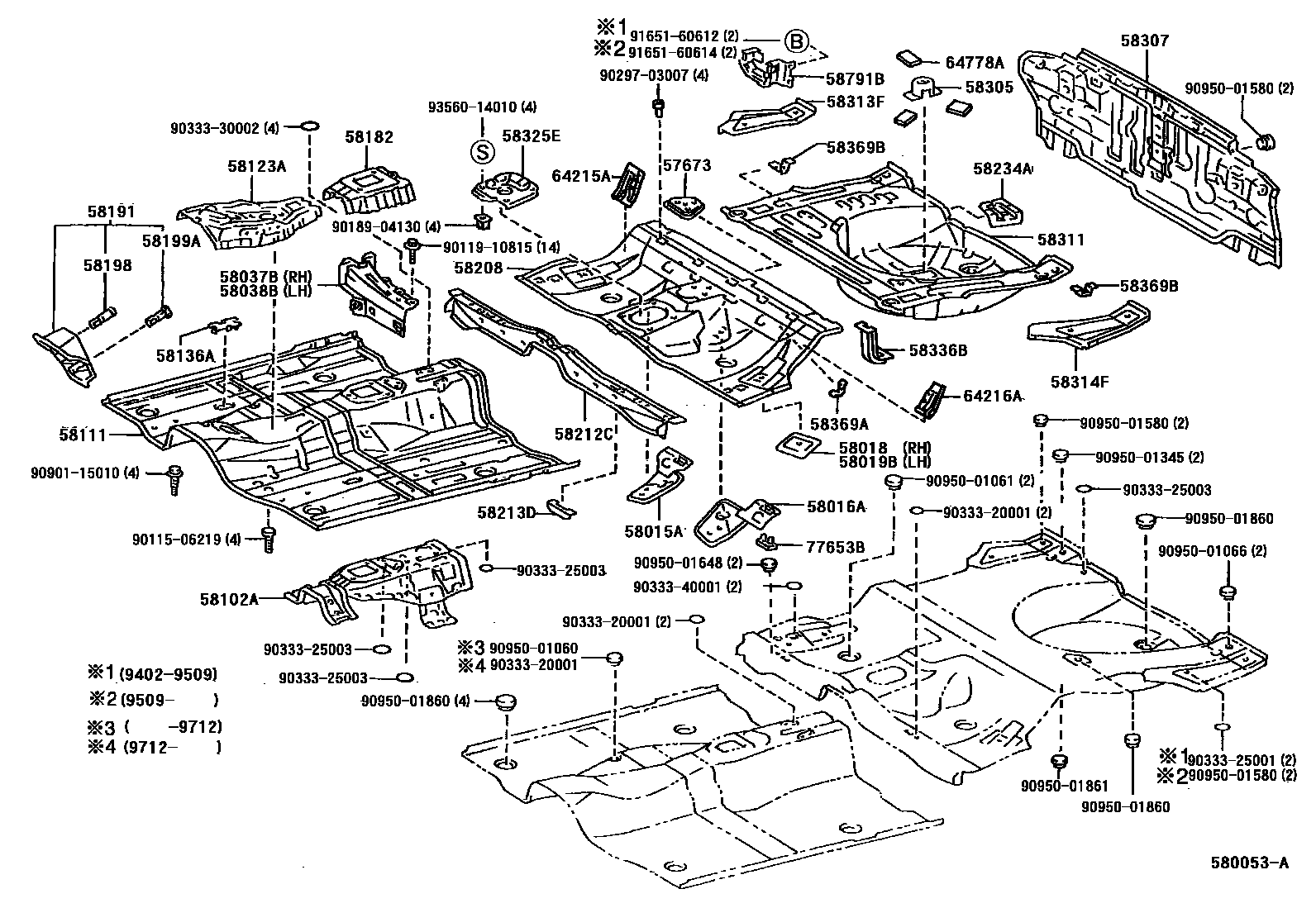

FLOOR PAN & LOWER BACK PANEL

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-20060iST20#199402-199605

main57673-20100iST20#199605

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-20080iST20#199402

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20090iST20#199402

58018REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 RH

main58018-20020iST20#199402

58019BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 LH

main58019-20020iST20#199402

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main58037-20010iST20#199509

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main58038-20010iST20#199509

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-20140iST20#199402-199509

sub58102-20180

sub90333-25001

main58102-20180iST20#199509

58111PAN, FRONT FLOOR

main58111-20170iST20#199402-199712

sub58111-20230

main58111-20230iST20#199712

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20090iST20#199402

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-33010iST20#199402

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-20060iST20#199402-199509

sub58182-20080

sub90333-25001

main58182-20080iST20#199509

58191FOOTREST, FRONT FLOOR

main58191-20070iST20#199402

58198CLIP, FOOTREST

main58198-20160iST20#199402

58199ACLIP, FOOTREST, NO.2

main58199-20040iST20#199402

58208PAN, CENTER FLOOR

main58211-20370iST20#199402-199605

main58211-20450iST20#199605

58212CPAN, CENTER FLOOR, FRONT

main58212-20070iST20#199402-199509

sub58212-20100

sub90333-25001

main58212-20100iST20#199509

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-20110iST20#199509

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-20070iST20#199402

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iST20#199402

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-2B150iST20#199402

58311PAN, REAR FLOOR

main58311-20330iST20#199402-199509

main58311-20370iST20#199509

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-20360iST20#199402

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-20330iST20#199402

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-20070iST20#199402

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-20030iST207199402-199712

58369ABRACKET, FUEL TUBE, NO.3

main58369-20010iST20#199402

58369BBRACKET, FUEL TUBE, NO.3

main58369-20010iST207199402-199712

main58369-20020iST207199402-199712

main58369-20020iST206,208199402

58791BCARRIER, JACK

main58791-20120iST20#199402

64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH

main64215-20030iST20#199402

64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH

main64216-20040iST20#199402

64778APROTECTOR, SPARE WHEEL

main64778-20080iST20#..FS,XS199406-199509

sub64778-21010

77653BCUSHION, FUEL TANK, NO.3

main77653-20071iST20#199402-199807

9011506219

main90115-06219

9011910815

main90119-10815

9018904130

main90189-04130

9029703007

main90297-03007

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330002

main90333-30002

9033340001

main90333-40001

9090115010

main90901-15010

9095001060

main90950-01060

9095001061

main90950-01061

9095001066

main90950-01066

9095001345

main90950-01345

9095001580

main90950-01580

9095001648

main90950-01648

9095001860

main90950-01860

9095001861

main90950-01861

9165160612

main91651-60612

9165160614

main91651-60614

9356014010

main93560-14010

54 parts on this diagram · 1 diagram in section
