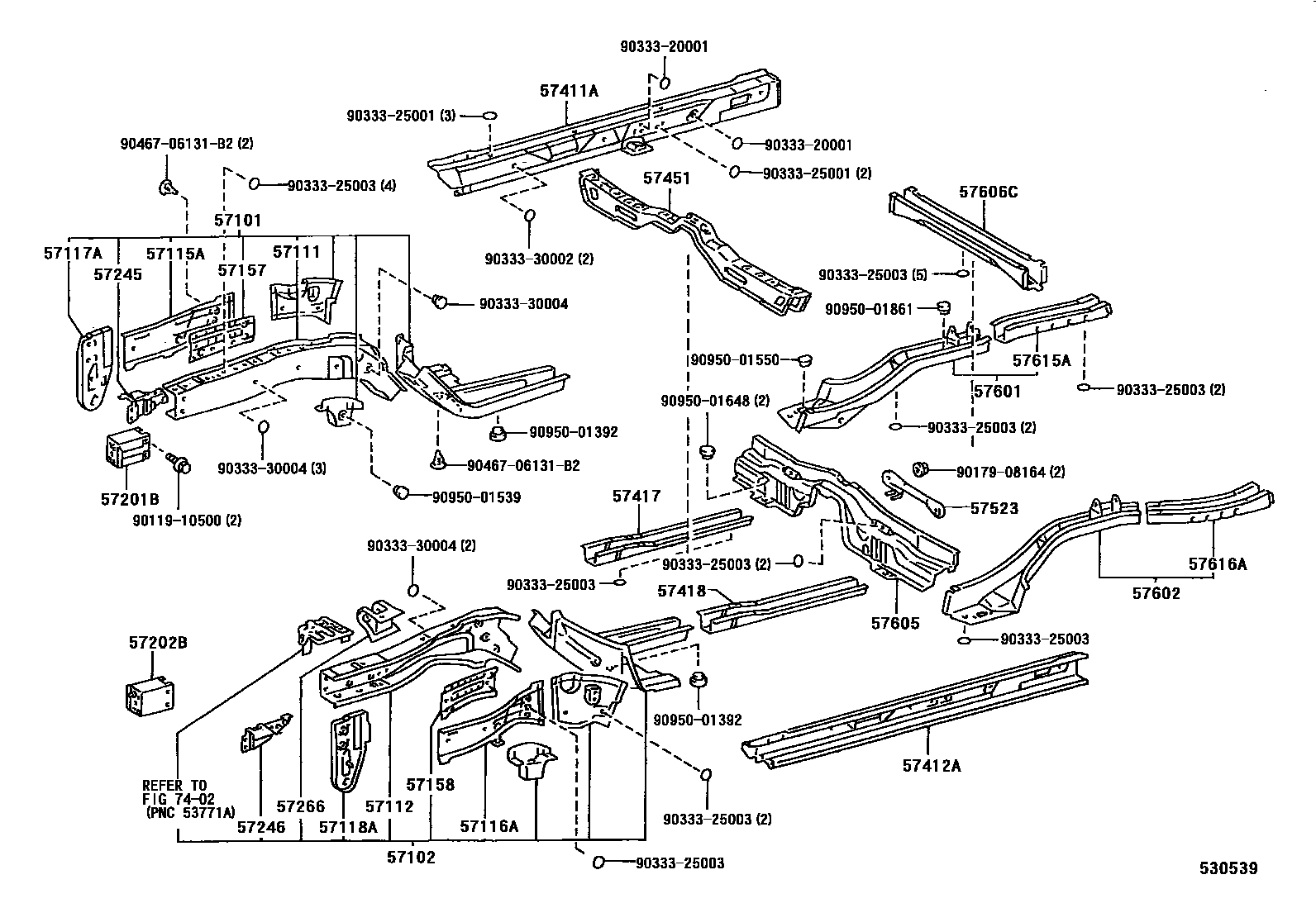

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20770iST206..ZS199402

main57101-20780iST20#199402

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20790iST206..ZS199402

main57102-20800iST20#199402

57111MEMBER, FRONT SIDE, RH

main57111-20240iST20#199402

57112MEMBER, FRONT SIDE, LH

main57112-20250iST20#199402

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20170iST20#199402

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20190iST20#199402

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-20100iST20#199402

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-20060iST20#199402

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-20090iST20#199402

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-20090iST20#199402

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-20060iST20#199402-199509

main57201-20070iST20#199509

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-20070iST20#199402-199509

main57202-20080iST20#199509

57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH

main57245-20020iST20#199402

57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH

main57246-20020iST20#199402

57266REINFORCEMENT, TOUSION BAR ANCHOR ARM, LH

main57266-20150iST20#199402

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-20310iST20#199402-199509

sub57401-20340

main57401-20340iST20#199509

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-20340iST20#199402-199509

sub57402-20370

main57402-20370iST20#199509

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20090iST20#199402

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20090iST20#199402

57451MEMBER, FRONT FLOOR CROSS

main57408-20901iST20#199402

57523BRACE, CENTER FLOOR CROSSMEMBER

main57503-20020iST20#199402

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20430iST20#199402

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20420iST20#199402

57605CROSSMEMBER SUB-ASSY, REAR

main57605-20110iST20#199402-199509

sub57605-20130

sub90333-25003

main57605-20130iST20#199509-199807

sub57605-20160

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20180iST20#199402-199807

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20910iST20#199402

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-20909iST20#199402

7402

9011910500

main90119-10500

9017908164

main90179-08164

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330002

main90333-30002

9033330004

main90333-30004

9046706131B2

main90467-06131B2

9095001392

main90950-01392

9095001539

main90950-01539

9095001550

main90950-01550

9095001648

main90950-01648

9095001861

main90950-01861

41 parts on this diagram · 1 diagram in section
