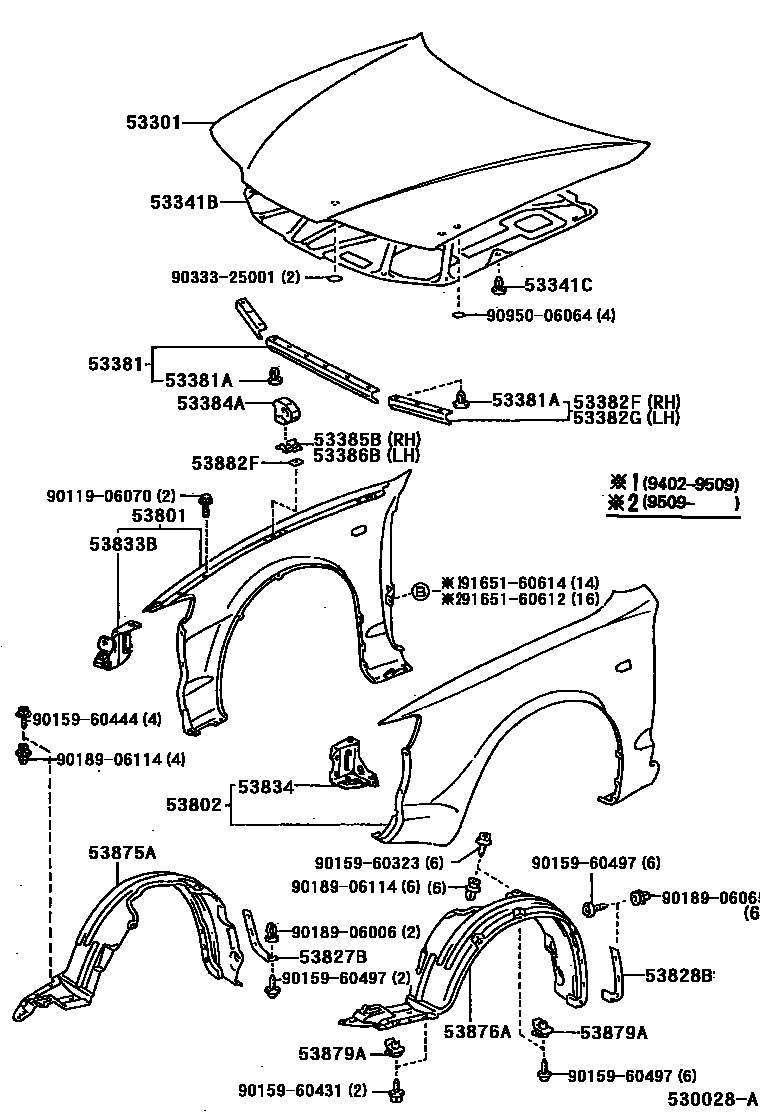

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382FSEAL, HOOD TO RADIATOR SUPPORT, RH
53382GSEAL, HOOD TO RADIATOR SUPPORT, LH
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
9011906070
main90119-06070
9015960323
main90159-60323
9015960431
main90159-60431
9015960444
main90159-60444
9015960497
main90159-60497
9018906006
main90189-06006
9018906065
main90189-06065
9018906114
main90189-06114
9033325001
main90333-25001
9095006064
main90950-06064
9165160612
main91651-60612
9165160614
main91651-60614
32 parts on this diagram · 1 diagram in section
