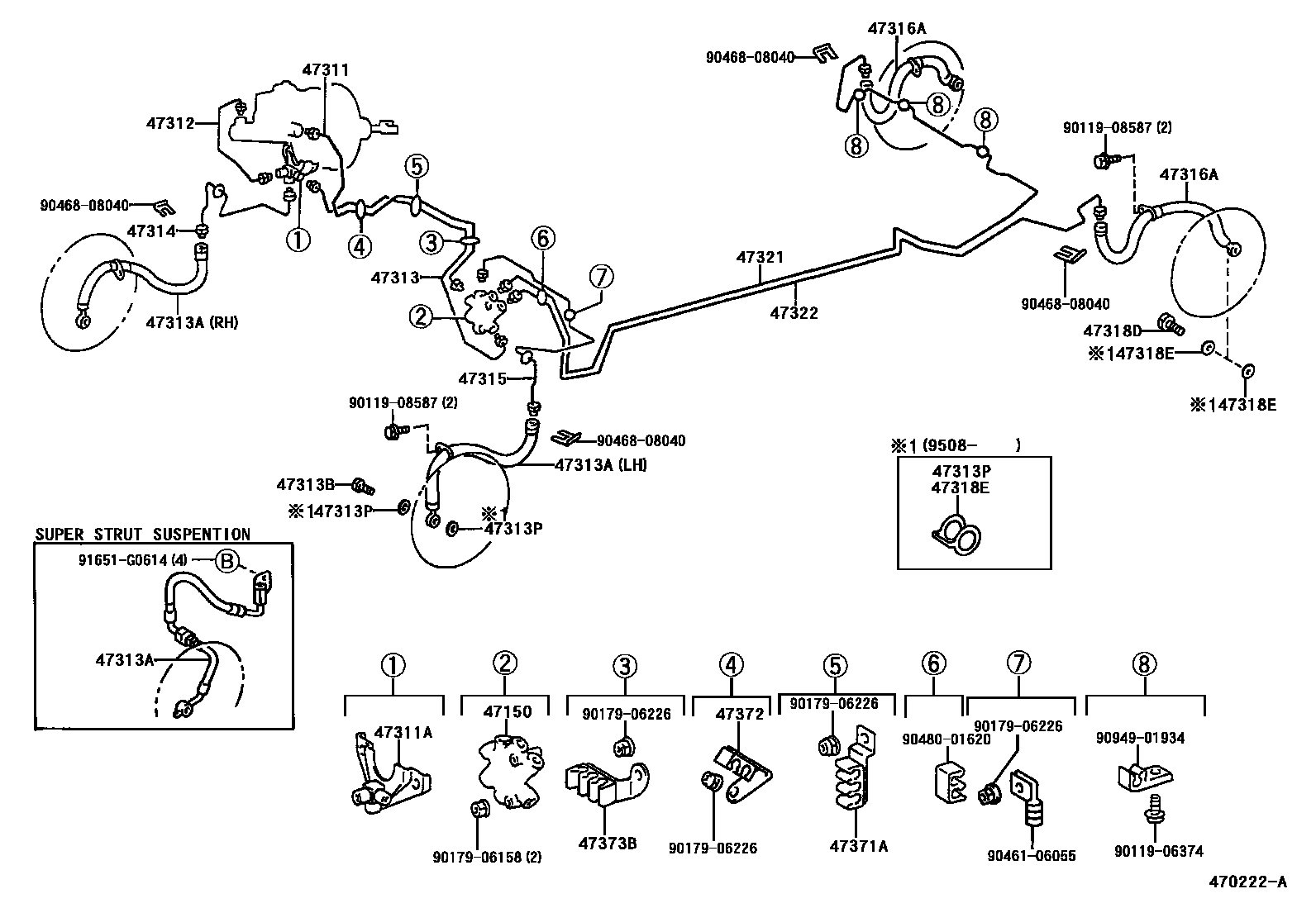

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1��(ABS) 0004 1��(ABS) 0005 1��(ABS) 0006 1��(ABS) 0007 1��(ABS) 0008 1��(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-12050iST206..ZS199412-199606

sub47150-12230

main47150-12060iST206,208..TS,ZS199412-199606

sub47150-12270

main47150-12160iST206,208..TS,ZS199412

main47150-16050iST206,207..FS,XS199412-199606

main47150-20240iST206,207..FS,XS199412

main47150-20280iST206..ZS199412

main47150-20330iST20#..FS,XS199402-199412

sub47150-16050

main47150-20350iST206..ZS199402-199412

sub47150-12060

main47150-20360iST206..ZS199402-199412

sub47150-12050

main47150-20370iST206..ZS199402-199412

sub47150-20280

main47150-20380iST20#..FS,XS199402-199412

sub47150-20240

main47150-20400iST206..ZS199402-199412

sub47150-12160

47311TUBE, FRONT BRAKE, NO.1

main47311-2B070iST208199509-199606

main47311-2B080iST206,207199402-199606

main47311-2B100iST20#199402-199606

main47311-2B140iST20#199606-199807

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10171iST20#199402-199606

47312TUBE, FRONT BRAKE, NO.2

main47312-20320iST20#199503-199606

main47312-20340iST20#199402-199503

sub47312-20320

47313TUBE, FRONT BRAKE, NO.3

main47313-20680iST208199509-199606

main47313-20690iST206,207199402-199606

main47313-20710iST20#199402-199606

main47313-20740iST20#199606

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02761iST20#199402-199509

sub90947-02847

main90947-02762iST20#199402-199509

sub90947-02848

main90947-02789iST206..ZS199402-199509

sub90947-02849

main90947-02790iST206..ZS199402-199509

sub90947-02850

main90947-02847iST20#199509

main90947-02848iST20#199509

main90947-02849iST206..ZS199509

main90947-02850iST206..ZS199509

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iST20#199402-199503

main90401-10058iST20#199503

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iST20#199402-199509

main47389-50020iST20#199509

47314TUBE, FRONT BRAKE, NO.4

main47314-20570iST208199509-199606

main47314-20580iST206,207199402-199606

main47314-20600iST20#199402-199606

main47314-20630iST20#199606

47315TUBE, FRONT BRAKE, NO.5

main47315-20630iST20#199402-199606

main47315-20650iST20#199402

47316TUBE, FRONT BRAKE, NO.6

main47316-20550iST20#199402-199606

main47316-20580iST20#199606

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02769iST20#199402-199509

sub90947-02852

main90947-02851iST208199509

main90947-02852iST206,207199509

47318TUBE, FRONT BRAKE, NO.8

main47318-20330iST20#199402-199606

main47318-20370iST20#199606

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iST20#199402-199503

main90401-10058iST206,207199503

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010iST20#199402-199509

main47389-50020iST206,207199509

47321TUBE, REAR BRAKE, NO.1

main47321-20380iST20#199402

47322TUBE, REAR BRAKE, NO.2

main47322-20490iST20#199402

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20440iST20#199402-199606

main47371-20480iST20#199606

main47371-20490iST20#199402-199606

47372CLAMP, BRAKE TUBE, NO.2

main47371-20450iST20#199402-199606

main47371-20510iST206,207199402-199606

main47371-20560iST20#199606

47373BCLAMP, BRAKE TUBE, NO.3

main47371-20480iST20#199402-199606

main47371-20520iST20#199402-199606

main47371-20570iST20#199606

9011906374

main90119-06374

9011908587

main90119-08587

9017906158

main90179-06158

9017906226

main90179-06226

9046106055

main90461-06055

9046808040

main90468-08040

9048001620

main90480-01620

9094901934

main90949-01934

91651G0614

main91651-G0614
