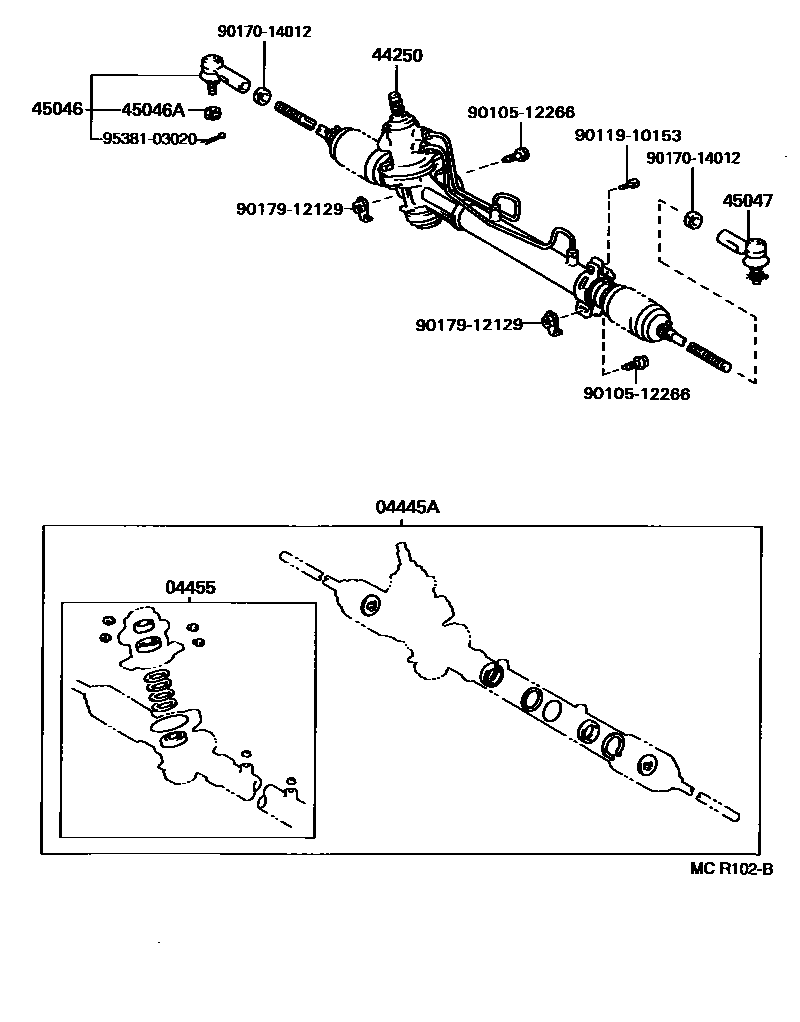

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20103iST207199402-199602

main04445-20180iST206,208199402

main04445-20230iST207199602-199712

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20092iST207199402-199602

main04455-20140iST206,208199402

main04455-20150iST207199602-199712

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20630iST206..ZS199402

main44250-20650iST206..ZS199402-199509

main44250-20670iST207199402-199712

main44250-20710iST206,208..FS,TS,XS199402

main44250-20720iST206..ZS199509

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iST207199402-199712

main45046-29295iST206..ZS199402

main45046-29305iST206,208199402

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iST20#199402

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iST207199402-199712

main45046-29305iST206,208199402

main45047-29085iST206..ZS199402

9010512266

main90105-12266

9011910153

main90119-10153

9017014012

main90170-14012

9017912129

main90179-12129

9538103020

main95381-03020

11 parts on this diagram · 4 diagrams in section
