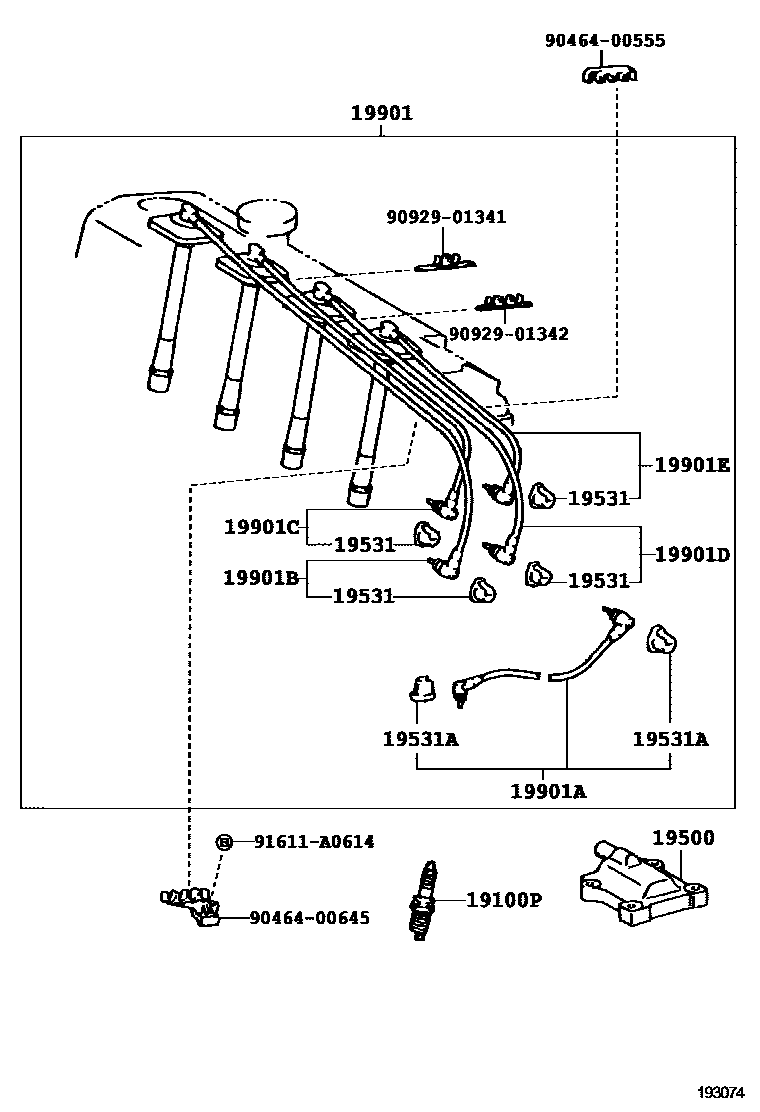

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1��(������ ����-�) 0004 1

19100PPLUG, SPARK

main90919-01180i3SGE..ST206199402

sub90919-01231

main90919-01181i3SGE..ST206199408

main90919-01184i3SFE,4SFE..ST20#199402-199606

main90919-01198i3SFE,4SFE..ST20#199606

19500COIL ASSY, IGNITION

main90919-02209i3S#,4SFE..ST20#199402-199606

19531HOLDER, RESISTIVE CORD, NO.1

main19531-74010i3SFE,4SFE..ST20#199402-199606

19531AHOLDER, RESISTIVE CODE, NO.3

main19531-74010i3SFE,4SFE..ST20#199402-199606

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21576i3SFE,4SFE..ST20#199402-199606

sub90919-29175

main90919-21577i3SGE..ST206199402

main90919-22369i3SFE..ST20#..ATM199402-199407

sub90919-22370

main90919-22370i3SFE..ST20#..ATM199402-199408

main90919-22370i3SFE..ST206,207..ATM199408-199606

main90919-22386i3SFE,4SFE..ST20#199606

sub90919-22400

19901ACORD, COIL RESISTIVE

main19590-74220i3SGE..ST206199402

main19590-74230i3SFE..ST20#199402-199408

sub19590-74240

main19590-74240i3SFE,4SFE..ST20#199408-199606

main19590-74240i3SFE..ST20#199402-199408

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15396i3SGE..ST206199402

main90919-15400i3SFE,4SFE..ST20#199402-199606

sub90919-15578

main90919-15409i3SFE..ST206,207..ATM199402-199606

main90919-15466i3SFE,4SFE..ST20#199606

sub90919-15546

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15397i3SGE..ST206199402

main90919-15401i3SFE,4SFE..ST20#199402-199606

sub90919-15579

main90919-15411i3SFE..ST206,207..ATM199402-199606

main90919-15465i3SFE,4SFE..ST20#199606

sub90919-15547

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15398i3SGE..ST206199402

main90919-15402i3SFE,4SFE..ST20#199402-199606

sub90919-15580

main90919-15410i3SFE..ST206,207..ATM199402-199606

main90919-15464i3SFE,4SFE..ST20#199606

sub90919-15548

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15261i3SFE..ST206,207..ATM199402-199606

main90919-15349i3SFE,4SFE..ST20#199402-199606

sub90919-15581

main90919-15399i3SGE..ST206199402

main90919-15463i3SFE,4SFE..ST20#199606

sub90919-15549

9046400555

main90464-00555

9046400645

main90464-00645

9092901341

main90929-01341

9092901342

main90929-01342

91611A0614

main91611-A0614

15 parts on this diagram · 4 diagrams in section
