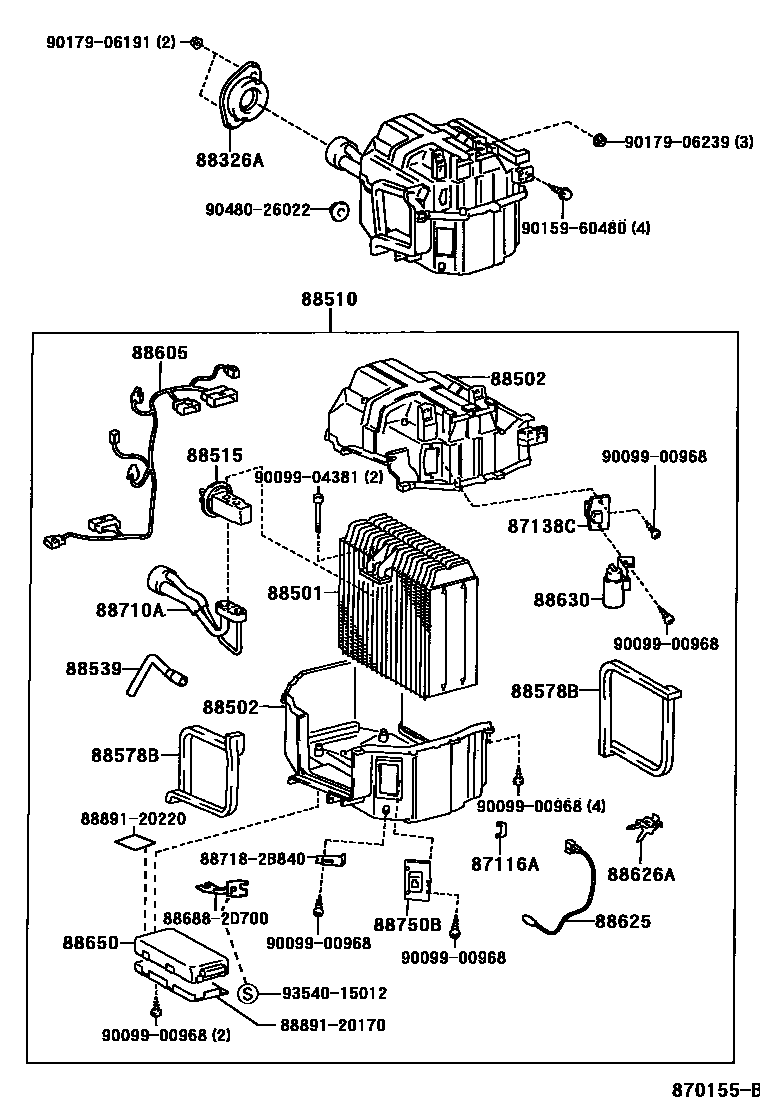

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1��(�� ����) 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iST20#199309

87138CRESISTOR, BLOWER

main87138-20140iST200,202,203..TR,TRR199309-199508

main87138-20170iST200,202,203..TR,TRR199309-199508

main87138-20180iST200,202,205..180E,180G,200GT,GT4WD199508

main87138-20190iST200,202,205..180E,180G,200GT,GT4WD199508

main87138-20200iST20#..TRG,TRG4,TRX199309-199508

main87138-20210iST20#..200E,200G,TRG,TRG4,TRX199309

main87138-20300iST202,203..200E,200G199508

88326APLATE, COVER

main88326-20050iST20#199309

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20360iST20#199309-199410

sub88501-20361

main88501-20361iST20#199410-199508

main88501-20370iST20#199309-199410

sub88501-20371

main88501-20371iST20#199410

main88501-20430iST20#199508

88502CASE SUB-ASSY, COOLING UNIT

main88502-20200iST20#199309-199508

main88502-20210iST20#199309-199508

main88502-20220iST20#199309-199508

main88502-20230iST20#..200E,200G,TR,TRG,TRG4,TRR,TRX¥0199309

main88502-20310iST20#199508

main88502-20320iST202,203..200E,200G199508

main88502-20330iST20#199508

main88502-20340iST200,202,205..180E,180G,200GT,GT4WD199508

main88502-20350iST200,202,205..180E,180G,200GT,GT4WD199508

88510UNIT ASSY, COOLER

main88510-2B340iST20#..TRG,TRG4,TRX199309-199508

main88510-2B350iST20#..TRG,TRG4,TRX199309-199508

main88510-2B360iST200,202,203..TR,TRR199309-199508

main88510-2B370iST200,202,203..TR,TRR199309-199508

main88510-2B530iST202,203..200E,200G199508

main88510-2B540iST200,202,205..180E,180G,200GT,GT4WD199508

main88510-2B550iST200,202,205..180E,180G,200GT,GT4WD199508

main88510-2B580iST202,203..200E,200G199508

88515VALVE, COOLER EXPANSION

main88515-20120iST20#¥10,200199309

sub88515-22240¥10,200

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20230iST20#199309-199508

sub88539-20250

main88539-20260iST202,203..200E,200G199508

88578BPACKING, COOLING UNIT, NO.1

main88578-20460iST20#199309-199410

main88578-20470iST20#199309

main88578-20570iST20#199410

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D270iST20#..TRG,TRG4,TRX199309-199508

main88605-2D280iST200,202,203..TR,TRR199309-199508

main88605-2D290iST20#199508

main88605-2D340iST20#..TRG,TRG4,TRX199309-199508

main88605-2D360iST200,202,203..TR,TRR199309-199508

88625THERMISTOR, COOLER, NO.1

main88625-20350iST20#199309-199508

main88625-20460iST202,203..200E,200G199508

sub88625-32150

main88625-60050iST200,202,205..180E,180G,200GT,GT4WD¥0199508

88626AHOLDER, THERMISTOR

main88626-28010iST200,202,203..TR,TRR199309-199508

main88626-28010iST20#199309

88630RELAY ASSY, COOLER

main88630-20230iST20#199309-199508

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-2B150iST20#199309-199508

main88650-2B280iST20#199309-199508

main88650-2B400iST202,203..200E,200G199508

main88650-2B410iST202,203..200E,200G199508

main88650-2B420iST200,202,205..180E,180G,200GT,GT4WD199508

main88650-2B430iST200,202,205..180E,180G,200GT,GT4WD199508

88710ATUBE ASSY, AIR CONDITIONER

main88710-20490iST20#¥9,400199309-199508

main88710-20500iST20#¥9,500199309

main88710-20580iST20#¥10,100199508

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-20010iST20#..200E,200G,TR,TRG,TRG4,TRR,TRX199309

886882D700BRACKET, COOLER DIAPHRAGM

main88688-2D700

887182B840PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B840

8889120170PACKING (FOR COOLER)

main88891-20170

8889120220PACKING (FOR COOLER)

main88891-20220

9009900968

main90099-00968

9009904381

main90099-04381

9015960480

main90159-60480¥120

9017906191

main90179-06191¥160

9017906239

main90179-06239¥140

9048026022

main90480-26022¥0

9354015012

main93540-15012¥70

27 parts on this diagram · 3 diagrams in section
