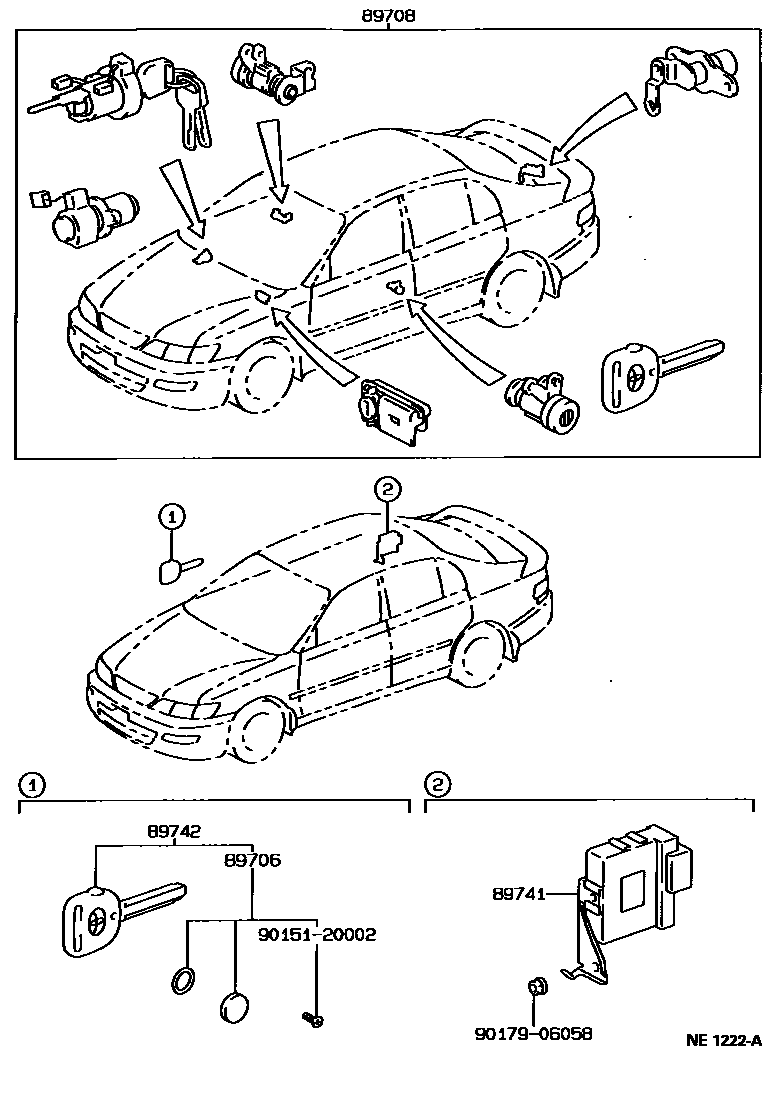

WIRELESS DOOR LOCK

89706BATTERY SET, TRANSMITTER

main89706-50010iST200,202,203..180G,200G199508-199712

sub89745-48020

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-20050iST200,202,203..180G,200G199508-199712

89741RECEIVER, DOOR CONTROL

main89741-20120iST200,202,203..180G,200G199508-199712

89742TRANSMITTER, DOOR CONTROL

main89742-12060iST200,202,203..180G,200G199508-199712

9015120002

main90151-20002

9017906058

main90179-06058

6 parts on this diagram · 1 diagram in section
